3 in 1 Antifreeze Refractometer ATC, Coolant Tester for Ethylene Propylene Battery Fluid

Product Description

The handheld antifreeze and battery fluid refractometer is widely used in car maintenance, repair workshops, and battery servicing. This tool helps ensure proper coolant protection in cold climates and accurate assessment of lead-acid battery charge levels.

The RHA-301A model handheld antifreeze and battery acid refractometer has two functions.

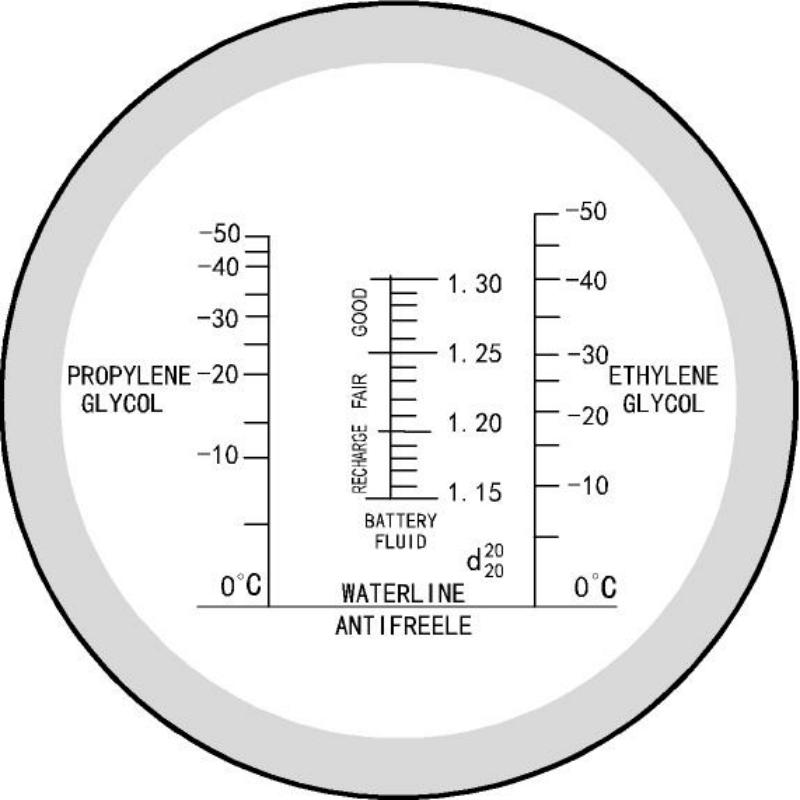

1. It measures the freezing point temperature (in °C) of ethylene glycol- or propylene glycol-based automobile antifreeze. The reading indicates the temperature at which the tested solution will begin to freeze. This model is best suited for use in regions where temperatures do not drop below -50℃。
2. It measures the specific gravity (SG) of battery acid. Specific gravity is the density of the acid compared to water and indicates the state of charge of a lead-acid battery — higher sg means the battery is more fully charged.

Product Features

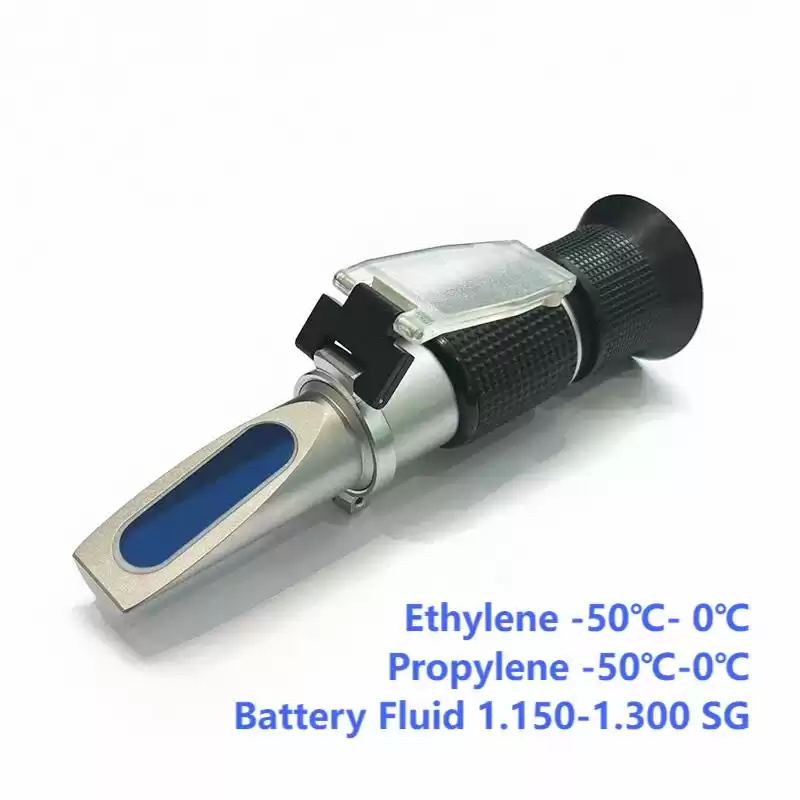

3-in-1 Measurement Functionality

Measures the freezing point of ethylene glycol, propylene glycol antifreeze solutions, and the specific gravity of battery acid—ideal for automotive service applications.



High Durability Copper Body

Constructed with a copper alloy shell to enhance measurement stability and ensure long-term use in workshop environments.

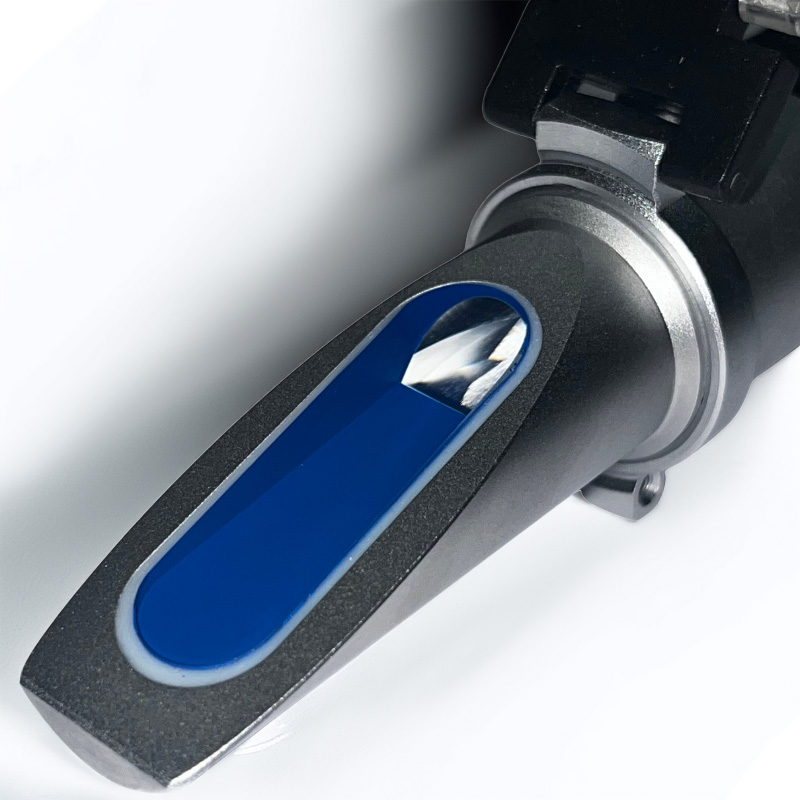

Precision Optical System

Equipped with a crown glass prism and precision lens for sharp, reliable readings.



Automatic Temperature Compensation (ATC)

Provides accurate measurements without manual adjustment, even with temperature variations.







Typical Applications

- Automotive Maintenance

 Measure the freezing point of ethylene glycol or propylene glycol antifreeze to ensure proper protection in cold climates and prevent engine damage.

- Battery Servicing

 Test the specific gravity (SG) of battery acid to evaluate the charge level and health of lead-acid batteries in vehicles and equipment.

- Industrial Equipment Maintenance

 Check coolant and battery conditions in forklifts, generators, and backup power systems.





Product Parameters

Model	RHA-301A
Net Weight	0.24kg
Length	153mm
Diameter	29mm
Temperature Range	10℃ to 30℃ with ATC 20℃ without ATC

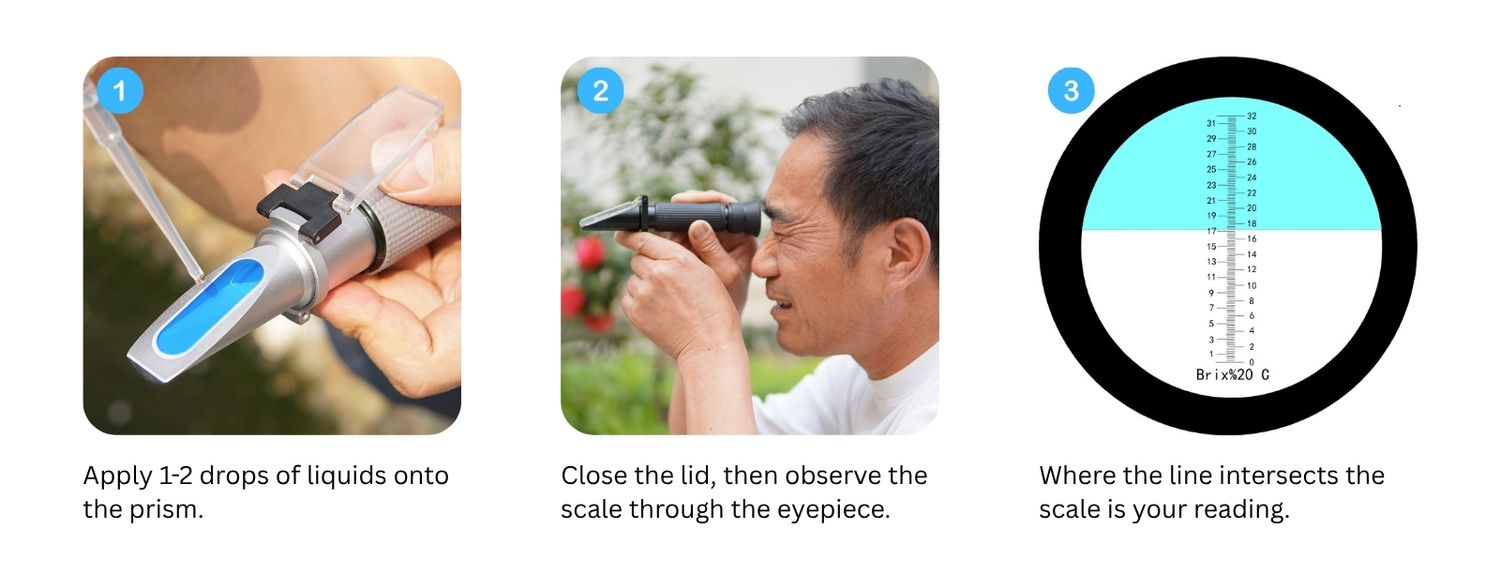

Instruction of Use

After-Sale Services

At Lindian Technology, we take pride in providing only premium-quality refractometers. If any of our products is found to be defective upon arrival, we will replace the defective unit free of charge.

In addition, we offer a free replacement warranty for a period of three years, along with free lifetime maintenance and calibration services.
