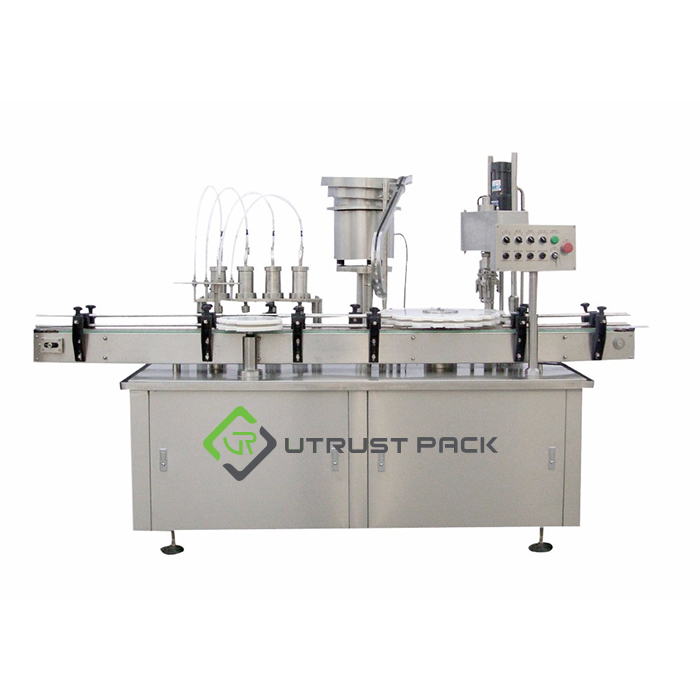

3 in 1 Automatic Carbonated Soft Drink Filling and Screw Capping Line
Automatic Carbonated Drink Production Line Product Feature
1.Automated 1 head Bottle filler + vibratory bowl +Screw Capping 3 in 1 machine easy to clean and disinfect.
2.PLC control system, color touch screen display.
3.The filling nozzle was equipped with drip-proof device.
4.When filling liquid, the filling nozzles dive into the bottom of bottles, rising slowly, it can effectively prevent bubbles.
5.Main electrical components adopt foreign well-known brands .
6.Machine shell is made of 304 stainless steel, meets GMP standards.
7. Connected with labeling machine with conveyor to be come the production line
Product Specification
1. Filling range:100-800ml
2. Filling speed: 20 bottles per minute
3. Measurement accuracy: + / -0.5% g (800ML standard)
4. voltage: single phase 220v
5. power: 2Kw
6. Working pressure : 0.6 ~ 0.8mpa
7. Machine weight: about 750kg
8. Number of filling heads: 1-8 (optional)
9. Height range of compatible bottle type: 30-180mm
10. the dimensions (H X W X D) 1250 * 1200 * 2200 mm

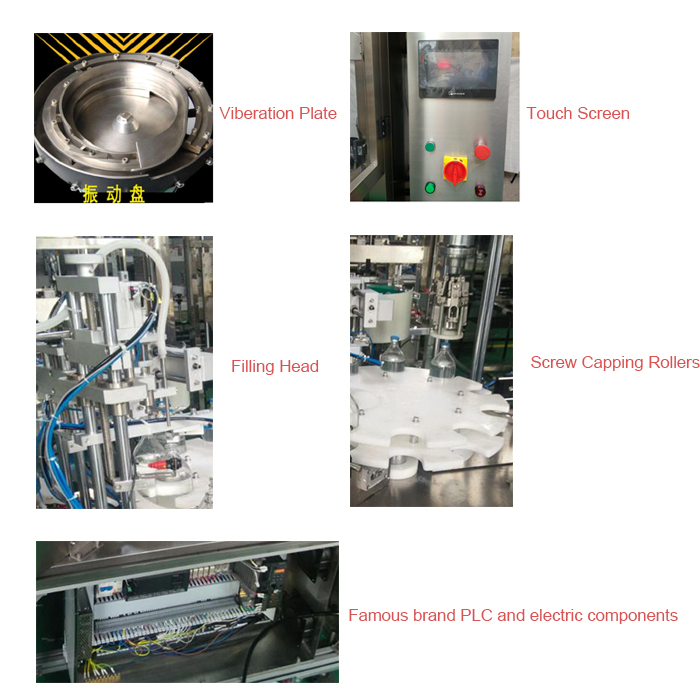

Product Details
Application
This packaging line is suitable for tinplate and aluminum alloy cans, and glass bottles.
Contact Supplier
Production Procedure
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
|
FAQ
|
|
1, What is your Installation Services?
|
2, What about your Guarantee of quality?
|
|
User
manual and videos to support for installing, debugging, operation of
the canning line, it will indicate you how to use this machine well
|
The 3 in 1 Automatic Carbonated Soft Drink Filling and Screw Capping Line 1 year warranty, al the packaging line machines part can be replaced within 1 year if broken (not including man made)
|
|
3, If we have very special request for the production line,could you help me to do the design?
|
4, Can I visit your factory?
|
|
Experienced mechanical designer customized-design provided.
|
Yes, welcome please.
|
|
5, If we have samples of new products, can you help to analysis and design the machine?
|
6, Do you have certificate?
|
|
Yes, Our technical department can help to analysis, design and test the new products you offered.
|
Yes, we have some, like CE / SGS.
|
