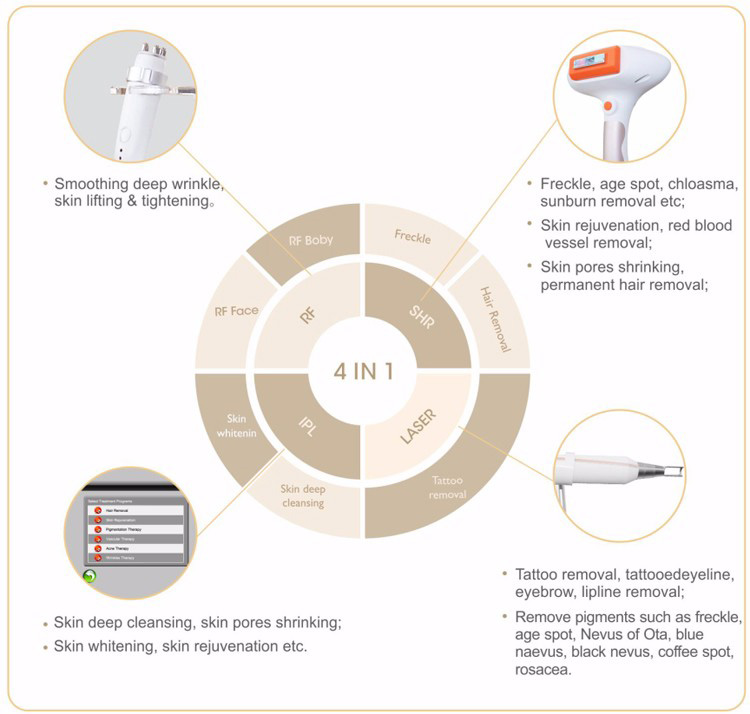

Our multi-functional beauty machine combines 3 kinds of technology including OPT IPL, Nd yag laser and RF. Working principle of the 3 in 1 beauty machine.
-

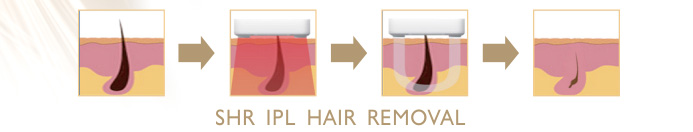

OPT IPL
SHR IPL is safe and painless permanent hair removal machine for wide range of client base which is clinical proven. It delivers low energy light via rapid "pulses" - (5 per second) to gently,effectively and efficiently traumatises the hair stem cells thus preventing re-growth.The wavelength of SSR headpiece range from 420 to 950nm, supported with integrated software system allows for a wide range of treatment areas: acne, wrinkles, pigmentation, vascular lesions, and skin rejuvenation.
-

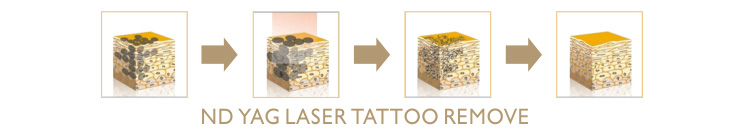

Nd Yag Laser
1. The laser delivers high energy to penetrate the skin epidermis causing an instantaneous explosion on the targeted tattoo or pigment particles.
2. The melanin will be fragmented so small that they can be metabolized by the lymphatic system or excreted out of body, which makes the targeted pigment disappear or lighter. The laser selectively targets and destroys tattoo pigments with no harm to surround normal tissues as the normal skin absorbs low energy induced by laser at the wavelength of 1064nm and 532nm.
-

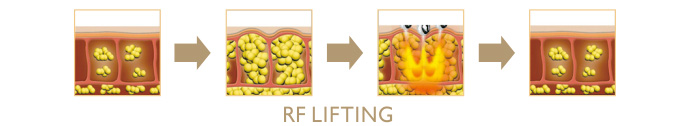

Radio Frequency
RF energy acts on the dermis directly, activates dermal cells to make water molecule shock in high-speed generating friction energy, when part of the tissue reaches about 60 ℃ (Feel fitful warm from subcutaneous). The collagen in dermal tightens immediately and is activated to achieve long-term growing and to enhance the skin tightening and anti-aging.
Technical Parameters of multi-functional Beauty Machine
|
E-Light & SHR IPL
|
Wavelength
|
530-1200nm & 640-1200nm
|
|
Spot Size
|
10*50mm²
|
|
E-light Energy Density
|
1-50J/cm²
|
|
OPT Pulse Width
|
1-40ms
|
|
OPT Pulse Type
|
Single Pulse
|
|
OPT Frequency
|
1-10Hz
|
|
Spot size
|
10*50mm
|
|
RF
|
Source
|
Radio frequency
|
|
Energy Density
|
Max 25J/cm2
|
|
Polar
|
Bi-polar RF
|
|
Frequency
|
5MHZ
|
|
Working duration
|
50ms—2500ms
|
|
Working interval
|
1—4ms
|
|
Nd yag Laser
|
Laser type
|
ND:YAG Solid-state laser
|
|
Pulse Width
|
8-20ns
|
|
Laser Robs
|
Yellow crystal rods
|
|
Wavelength
|
1064nm, 532nm
|
|
Frequency
|
1—10Hz
|
|
Diameter of light spot
|
1—8mm adjustable
|
|
Energy Density
|
20-1500mj
|
|
Cooling system
|
Semi-conductor cooling + embedded circle water cooling + air cooling system
|
|
Power supply
|
AC220V±10%V, 50HZ±1HZ (AC110V±10%V, 60HZ±1HZ)
|
Functions
Treatment Before and After
