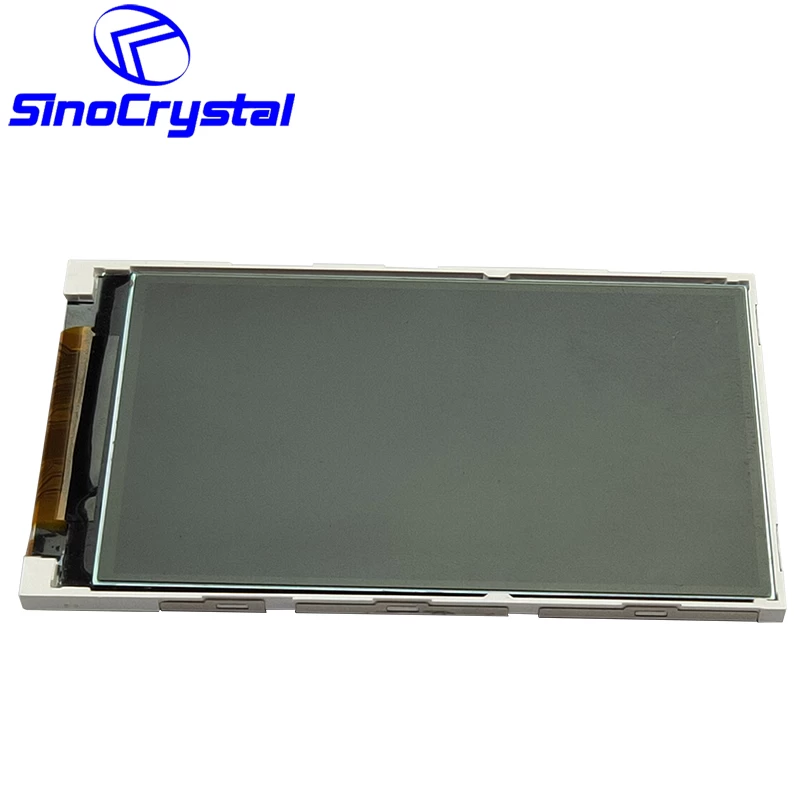

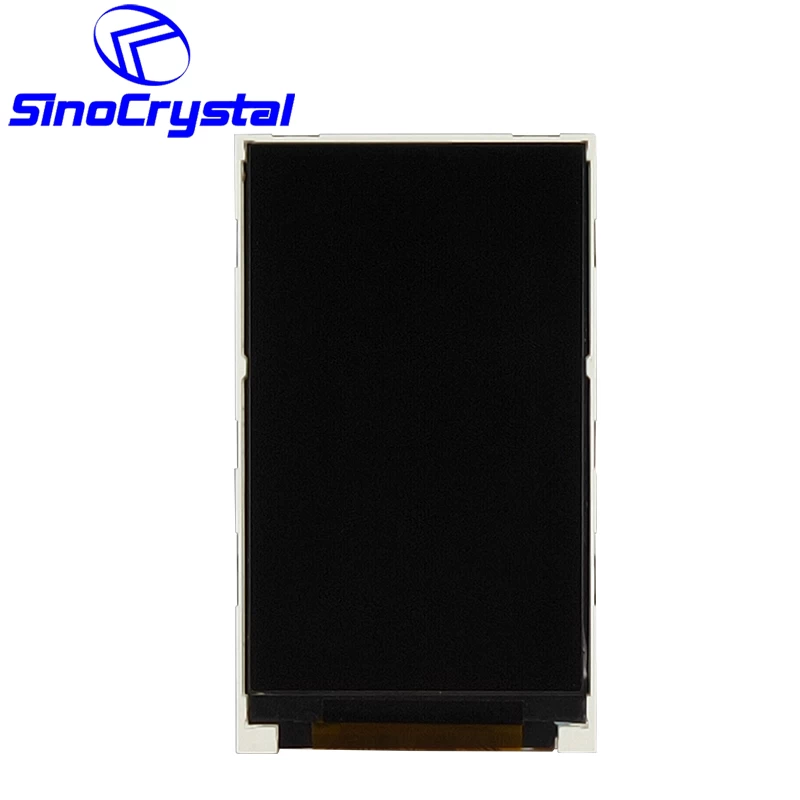

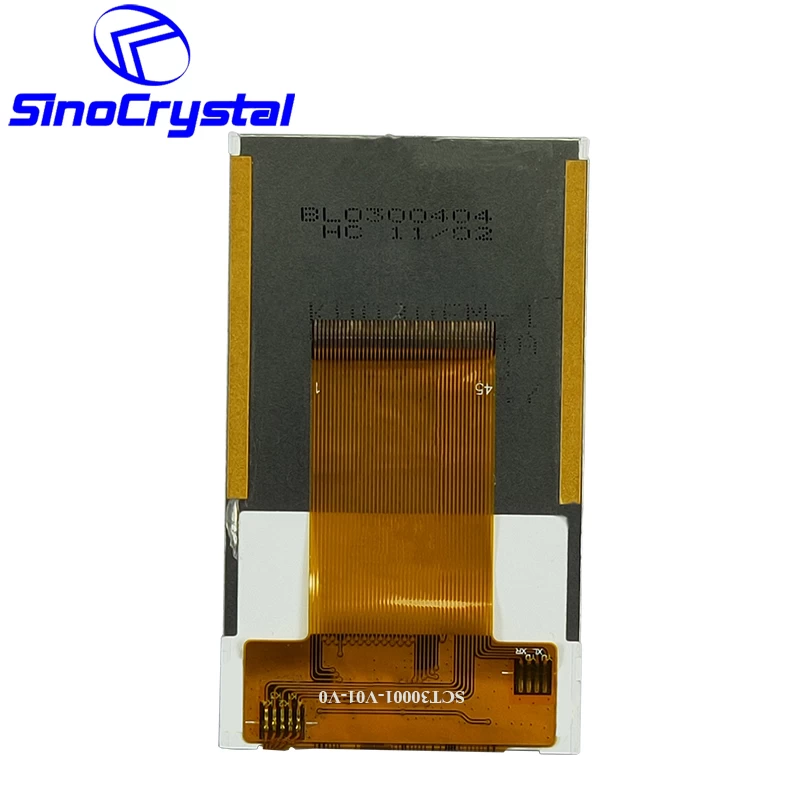

Basic Information
Resolution: 960*240
Outline Dimension: 43.44 x 74.79 x 2.6
Active Area: 36.84 x 65.52
Driver IC: ILI8961
View Direction: 12 o'clock
PIN: 40
Backlight: White LED
Touch Screen: No touch screen for standard. If you need touch, click for a inquiry
Drawing
General Specification
|
Item
|
Nominal Dimension
|
Unit
|
|
Dot Matrix
|
960 x 240
|
Dots
|
|
Module Size ( W×H×T )
|
43.44 x 74.79 x 2.6
|
mm.
|
|
Active Area ( W×H )
|
36.84 x 65.52
|
mm.
|
|
Pixel arrangement
|
Delta RGB
|
mm.
|
|
Color depth
|
262K(MAX)
|
colors
|
|
Interface
|
8-bit RGB / CCIR / YUV
|
-
|
|
Driving IC Package
|
COG
|
-
|
|
Operating temperature
|
-20 ~70
|
ºC
|
|
Storage temperature
|
-30~80
|
ºC
|
|
LCD Type
|
a-Si TFT
|
-
|
|
LCD Mode
|
TN/Normal White
|
-
|
|
Backlight Type
|
LED x 4
|
PCS
|
Interface Definition
|
Pin No
|
Pin Symbol
|
Level
|
Description
|
|
1
|
VCOM
|
-
|
VCOM
|
|
2
|
K
|
-
|
LED backlight Cathode
|
|
3
|
A
|
-
|
LED backlight Anode
|
|
4
|
DRV
|
-
|
Gate signal for the power transistor of the boost converter
|
|
5
|
VCAC
|
-
|
Intermediate voltage for charge pump
|
|
6
|
VCOM
|
-
|
VCOM DC output
|
|
7
|
FRP
|
-
|
Frame polarity output
|
|
8
|
AGND
|
-
|
Power ground
|
|
9
|
VGL
|
-
|
Negative low power supply for gate driver output
|
|
10
|
VGH
|
-
|
Positive power supply for gate driver output
|
|
11
|
C4M
|
-
|
Pins to connect capacitors for power circuitry
|
|
12
|
C4P
|
-
|
Pins to connect capacitors for power circuitry
|
|
13
|
VINT3
|
-
|
Floating this pin.
|
|
14
|
VINT2
|
-
|
Floating this pin.
|
|
15
|
C3M
|
-
|
Pins to connect capacitors for power circuitry
|
|
16
|
C3P
|
-
|
Pins to connect capacitors for power circuitry
|
|
17
|
VINT1
|
-
|
Power setting capacitor connect pin
|
|
18
|
C2N
|
-
|
Pins to connect capacitors for power circuitry
|
|
19
|
C2P
|
-
|
Pins to connect capacitors for power circuitry
|
|
20
|
C1N
|
-
|
Pins to connect capacitors for power circuitry
|
|
21
|
C1P
|
-
|
Pins to connect capacitors for power circuitry
|
|
22
|
DVDD
|
-
|
Power setting capacitor connecting pins.
|
|
23
|
VDDIO
|
1.65-3.6V
|
Power supply for charge pump circuit
|
|
24
|
VDD
|
2.7-3.6V
|
Power supply for digital interface
|
|
25
|
AGND
|
-
|
Power ground
|
|
26-33
|
D0-D7
|
H/L
|
Data input
|
|
34
|
DCLK
|
H/L
|
Data clock
|
|
35
|
HSYNC
|
H/L
|
Line synchronizing
|
|
36
|
VSYNC
|
H/L
|
Frame synchronizing
|
|
37
|
SCL
|
H/L
|
Serial clock input
|
|
38
|
SDA
|
H/L
|
Serial data input
|
|
39
|
CSB
|
H/L
|
Serial chip select, Low enable
|
|
40
|
VCOM
|
-
|
VCOM
|
