3 Way Low Pim 150dbc RF Splitter Amplifier With N Female Connector 698 - 2700mhz Ip65

Features

  • Wide Frequency Band for 4G and 5G, 698-2700MHz, 617-3800MHz, 698-3800MHz;
  • Low Insertion Loss & Low VSWR;
  • Low PIM, supports -140/-150/-155/-160dBc;
  • N, 7/16 DIN, 4.3-10 Female connectors are available;
  • Use for equal splitting of high power RF signals with minimal reflections or loss;
  • Multi-type power splitters are available in 2-way, 3-way and 4-way;
  • High Reliability, IP65 & IP67 waterproof.



3 Way Low Pim 150dbc RF Splitter Amplifier With N Female Connector 698 - 2700mhz Ip65

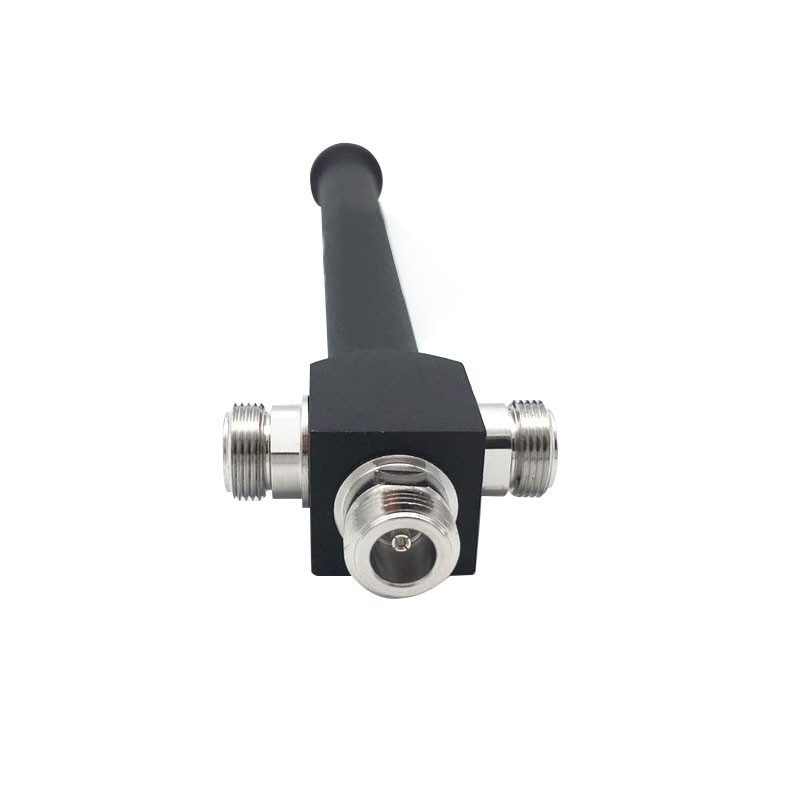

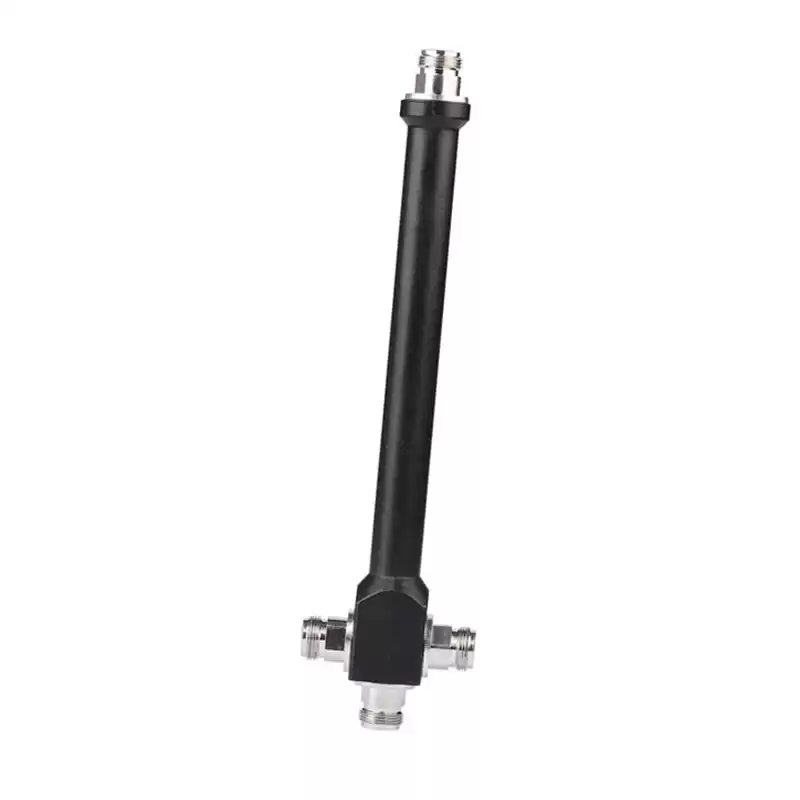

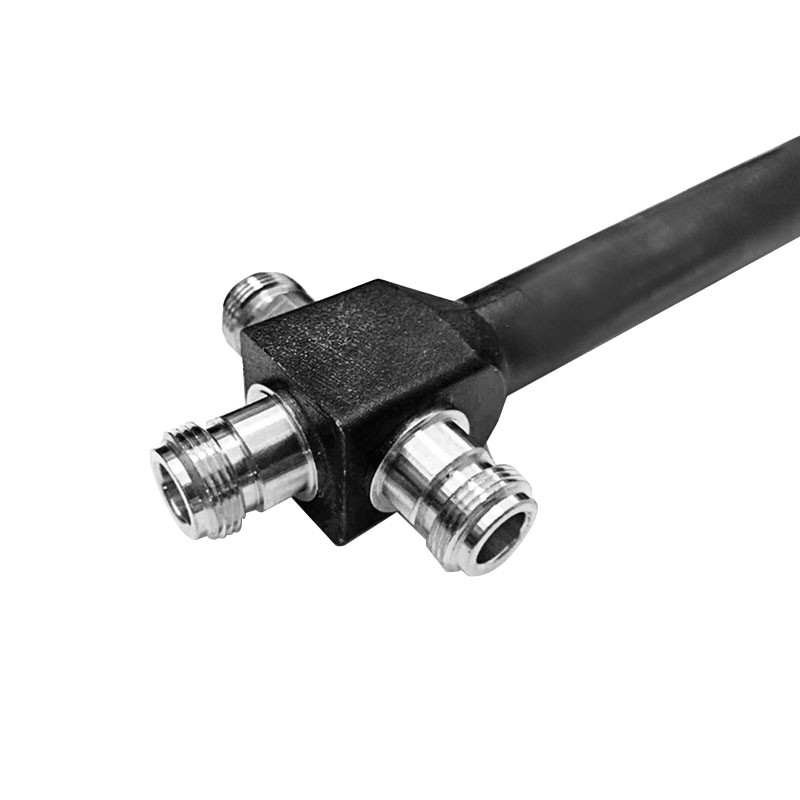

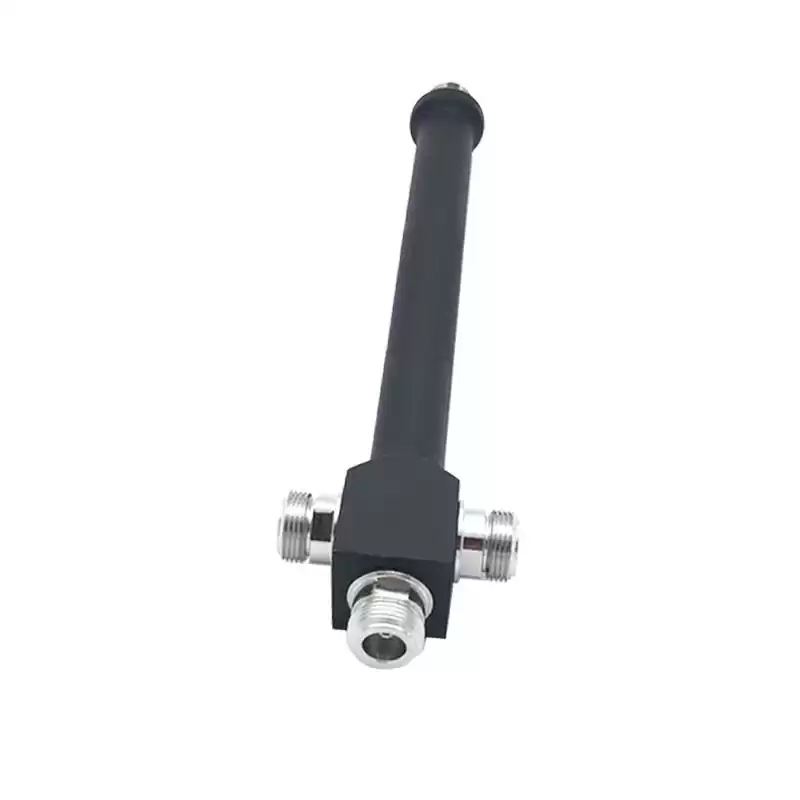

The 3 way type N Power Splitter (also known as 3 way type N Power Divider) is rated for a minimum frequency of 617MHz and a maximum frequency of 3.8GHz. This 3 port type N power divider / coaxial splitter has a 50ohm impedance and a maxium input power of 500W. ROHO's type N coaxial RF splitter / divider has a female N type input and 3 female type N output ports;This 3 way N type RF power divider is a reactive design and has a maximum insertion loss of 0. The maximum input VSWR of this type N reactive splitter / divider is and the minimum isolation is 0 dB. The 3 port type N power divider is one of RF, microwave and millimeter wave components supplied,ROHO also could do SMA,DIN,4.3-10,N or other Connector for this product,All specification we can be customized customized.



Specifications

Electrical Specifications
Frequency Range(MHz) 698-2700
Type 3 Way
Impedance(Ω) 50
Average Power(W) 200W
VSWR ≤1.25
Split Loss(dB)  ≤4.8
Insertion Loss(dB)  ≤0.4
PIM (dBc) ≤-150dBc@2*43dBm;≤-160dBc@2*43dBm;Or specify
RF Connector Interface N Female
Environmental Specifications
IP Grade IP65
Operating Temperature(℃) -35~ +65
Relative Humidity 5%-95%
Application Indoor or Outdoor



Applications

  • In-building Distribution System and Mobile Communication Network Optimization;
  • Split the one Input signal into 2,3 or more paths in telecommunication applications;
  • Radar, electronic navigation and electric confrontation;
  • Aerospace equipment systems;
  • Cluster communication, satellite communication, shortwave communication and hopping radio.
