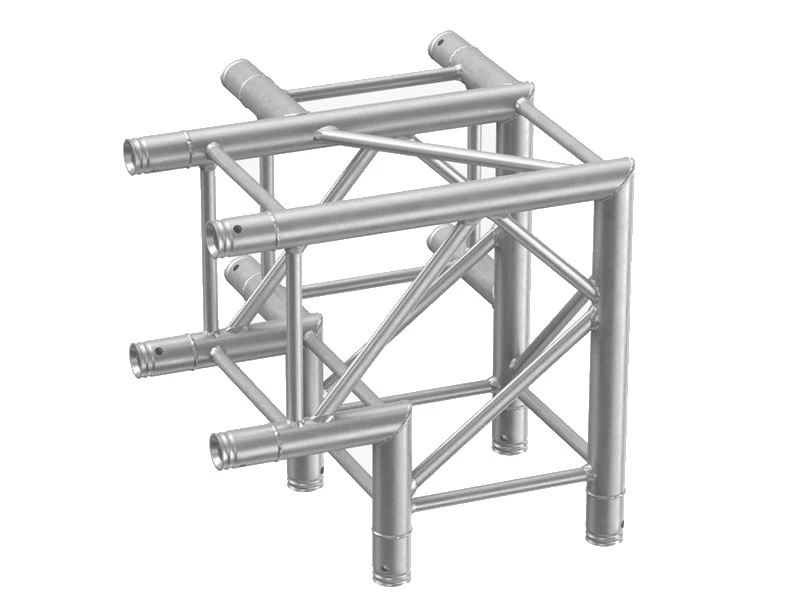

3 Way Square Truss Corner:
This 3 Way Square Truss Corner is one of the Aluminium Truss Corners for the ITSC-CS29. It offers optimum flexibility to complete your special truss structures requirements. ItsCurved Angleoffers your architecture featurs for truss displays.
Features:
-
Light weight and quick to install
-
Modular and fotproof assembly
-
Powder coating or anodizing to be any color on request
-
Special design for architecture structure
Specification:
|
Material
|
Aluminum Alloy 6061-T 6 / 6082-T 6
|
|
Types
|
Square Truss corner
|
|
Main tubes
|
50 x 3 mm
|
|
Braces
|
25 x 2 mm
|
|
Connection type
|
Conical couple system
|
Dimensions
|
500x500x500mm
|
|
Selfweight
|
6.7kg
|
|
Transportation volume
|
0.0.13m3
|
