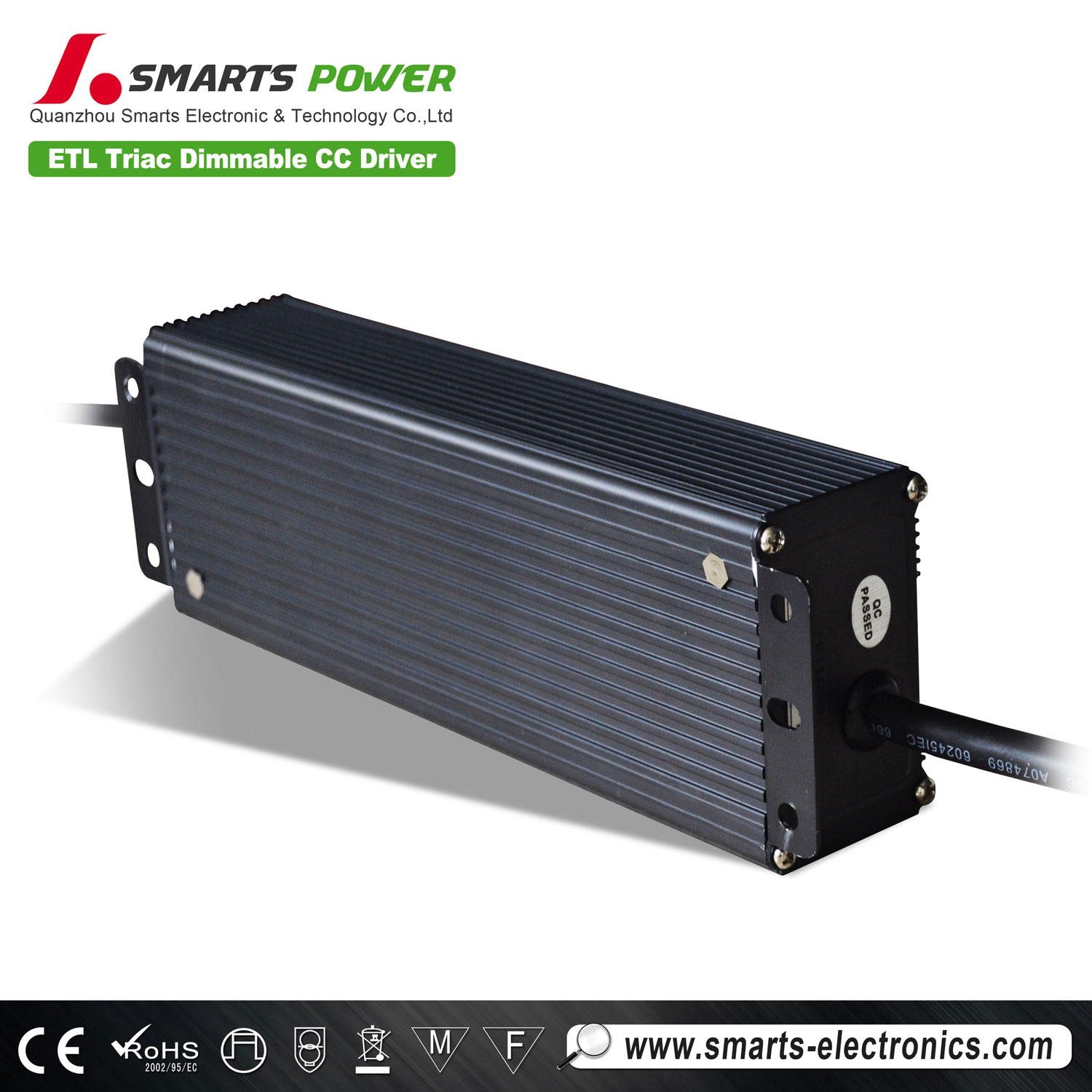

3 years warranty 2400mA 80w triac dimmable LED power supply

Product Description

Product parameters:

 Model

Input

voltage(AC  V)

Working Frequency
(Hz)

Output voltage
(DC V)

Output Current

Output power

(DC W)

Working Temp.

Protection grade

SMT-115-0700CT

  90-135V/
    170-265V

47~63HZ

 80~115V

0-700mA

     80W

-25~50°C

IP67

SMT-090-0900CT

90-135V/
    170-265V

47~63HZ

70-90V

0-900mA      80W

-25~50°C

IP67

SMT-080-1050CT

90-135V/
    170-265V

47~63HZ

55-80V

0-1050mA      80W

-25~50°C

IP67

SMT-067-1200CT

90-135V/
    170-265V

47~63HZ

    40-67V 0-1200mA     80W

-25~50°C

IP67

SMT-058-1400CT

90-135V/
    170-265V

47~63HZ

40-58V

0-1400mA     80W

-25~50°C

IP67

SMT-040-2000CT

90-135V/
    170-265V

47~63HZ

25-40V

0-2000mA     80W

-25~50°C

IP67

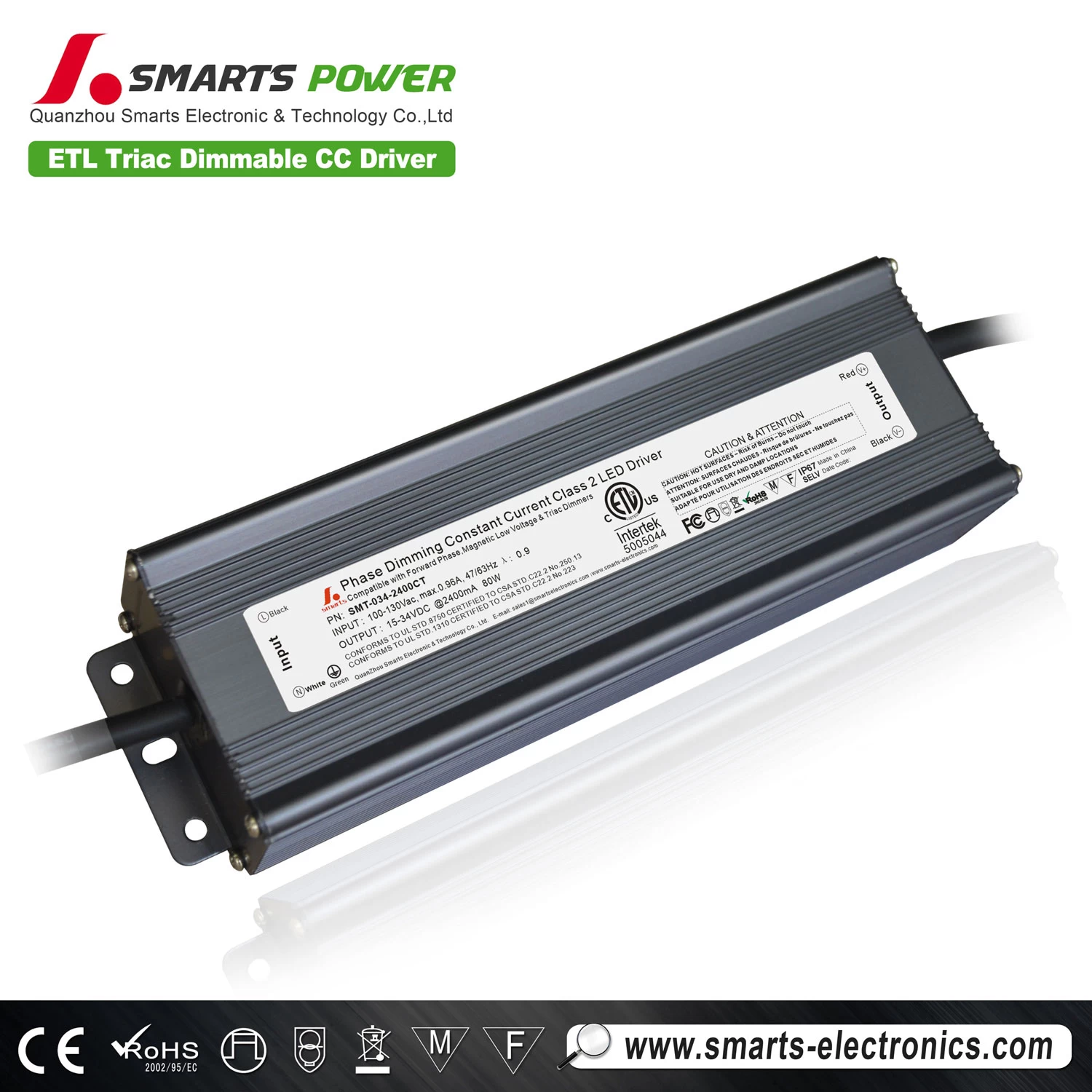

SMT-034-2400CT

90-135V/
    170-265V

47~63HZ

15-34V

0-2400mA      80W

-25~50°C

IP67

Protection & Environment& Safety & EMC
IP67 triac ELV dimmable led drivers 1400ma/2400ma



Specifications:

  • Dimming mode: triac dimmable
  • working mode:constant current type
  • PF>0.93/110V ; PF>0.95/220V ; PF>0.94/250V
  • Full Load Efficiency (Typ.):  >85%
  • AC Current(Typ.): 0.14A/110VAC  0.12 A/220VAC  0.01A/250VAC
  • Leakage current:  < 0.27mA/110VAC;  < 0.25mA/220VAC
  • 3 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)

Features:

  • High efficiency,save energy ,protected environment
  • Output constant current
  • Input range :90-135VAC / 170-265VAC
  • Built-in PFC function,PF >0.9
  • Efficiency > 85%
  • Protections:Short circuit/over Voltage
  • Fully isolated plastic case
  • Easy installation
  • Cooling by free air convection
  • Work with leading edge and trailing edge TRIAC dimmers
  • Strong compatibility, flicker-free dimming
  • Suitable for LED lighting and moving sign applications
  • Compliance to worldwide safety regulations for lighting
  • Meet to safety standard and EMC.
  • 100% full load burn-in test.
  • Brand electrotronic components.
  • ROHS material.

Environment :

  • Working Temperature : -25 ~ +50°C
  • Working Humidity : 20 ~ 90% RH non-condensing
  • Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
  • TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
  • Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

Safety :

  • Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
  • Withstand Voltage : I/P-O/P: 3000KVAC
  • Isolation Resistance : I/P-O/P:100M Ohms/500VDC

Applications:

  • indoor LED illuminating lights, LED Neon
  • LED urban Decoration,LED Lighting Advertising
  • LED Display, Safety Protection Apparatus
  • Telecommunications, Networks
  • Vehicle Lights, Controller Panels

IP67 triac ELV dimmable led drivers 1400ma/2400ma
