30-300mm PU Sandwich Panel for Cold Storage System
Product Description:
|
Product Name
|
30-300mm PU Sandwich Panel for Cold Storage System
|
|
Brand of steel plates
|
Bao Steel, Yieh Phui Steel, Ma Steel, BHP Steel.
|
|
Painting of steel plates
|
PVDF, SMP, HDP, PE; The top painting should be above 25μm.
|
|
Galvanized layer of steel plates
|
Exterior plate:55% Aluzinc above 100g/m³or Zinc coating above 150g/m³; Inner plate:55% Aluzinc above 70g/m³or Zinc coating above 100g/m³.
|
|
Thickness of steel plates
|
0.4mm-0.6mm.
|
|
Thickness ofcore
|
30-300mm.
|
|
Density of core
|
40-50kg/m³
|
|
Effective width
|
930/1000mm
|
|
Panel Length
|
According to customers’ request
|
Product Advantages:
1.Low thermal conductivity≤0.020. It has a high-efficient thermal insulation effect.
2.High percentage of close area ≥90% and low moisture absorption ≤3%. It has an excellent waterproof effect.

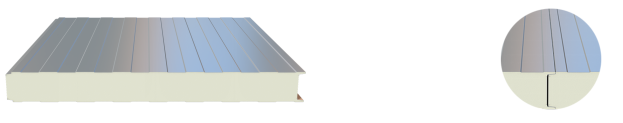

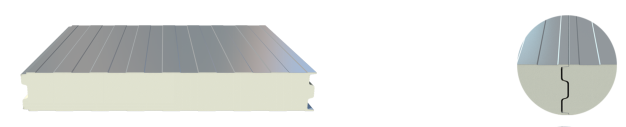

3.It adopts the unique concave-convex type which improves the tightness of the socket of the panel. High viscosity, high strength≥220 and good load resistance performance≥2450.
4.Excellent flame resistance level B.
5.Wide scope of temperature resistance.
