Product Name
30000times Super Long Cycle Life 12V 58AH Solar Storage And UPS Lithium Titanate LTO Battery Pack
Highlights
-
High power / excellent abuse tolerance
-
Super Safety with built-in integrated BMS
-
High energy efficiency: the yield is more than 95%
-
LCD/Monitor/Bluetooth functions are optional
-
12V 50AH/80AH/100AH/120AH/200AH are optional
-
Super long life: 25000 cycles at 100% DOD, 30000 cycles at 80% DOD
-
3 years warranty,extendable to 5 years

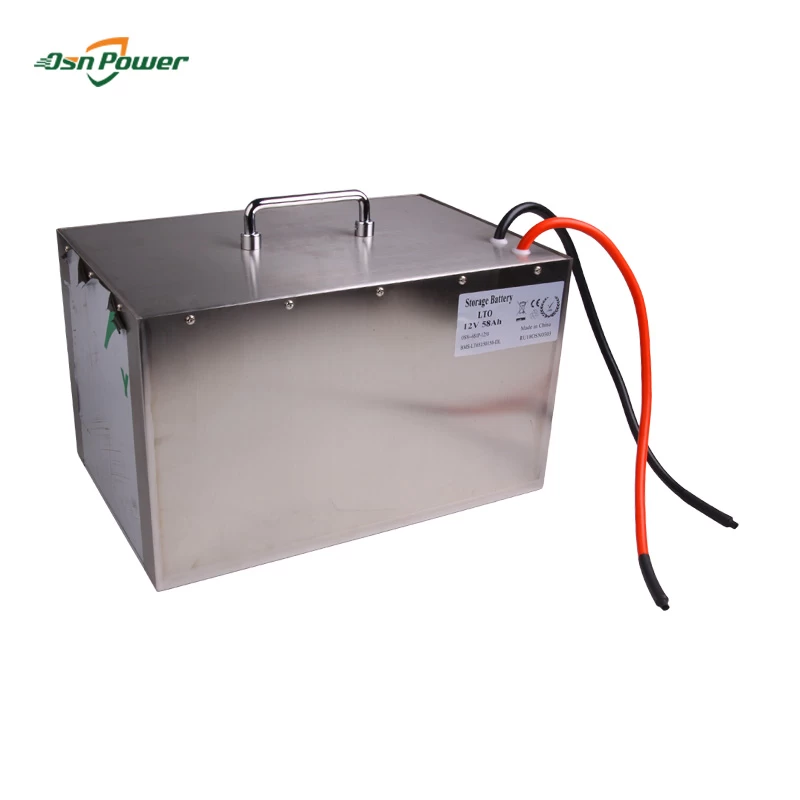

Photo of LTO 12V 58AH Solar Storage And UPS Lithium Titanate LTO Battery Pack
Datasheet of LTO 12V 58AH Solar Storage And UPS Lithium Titanate LTO Battery Pack
|
MODEL
|
OSN-UPS-1258
|
|
PERFORMANCE
|
|
Rated Capacity
|
58 Ah
|
|
Nominal Voltage
|
12 V
|
|
Discharge Ending Voltage
|
9V
|
|
Charging Limited Voltage
|
16.8V
|
|
Max. Charging Current
|
200.0 A
|
|
Max. Continuous Discharging Current
|
200.0 A
|
|
Serial Connection
|
up to 4 units in series
|
|
Parallel Connection
|
up to 4 units in parallel
|
|
Containing Cell
|
LTO 2.3V 58AH
|
|
Design Life
|
More than 25 years
|
|
Cycle Life
|
30000 cycles @80% DOD (dependant on actual DOD, usage & temp.)
|
|
MECHANICAL SPECIFICATIONS
|
|
Dimensions (W*D*H)
|
350(L)*230(W)*210(H)mm (With case)
|
|
Weight
|
15 Kg
|
|
Enclosure
|
Metal Case
|
|
Power terminal
|
Customize
|
|
OTHER
|
|
Operating Temperature
|
Charging / Discharging: -40 to +55°C
|
|
Storage Temperature
|
-50 to +65°C
|
|
Warranty
|
5 years
|
More features
Super long cycle life: over 30,000 times
Faster charge: 10mins fully charged
Higher discharge rate: Up to 10C
Wide working temperature range: -50°C ~ 65°C
High Safety(No fire, explosion,leakage)
Related Products
We are developing 12V 200AH and bigger battery for camping cars.
Please contact us at service@osnpower.com or +86-18575517952 for most suitable 12V battery solution for your Camper Vans or motorhomes applications.
