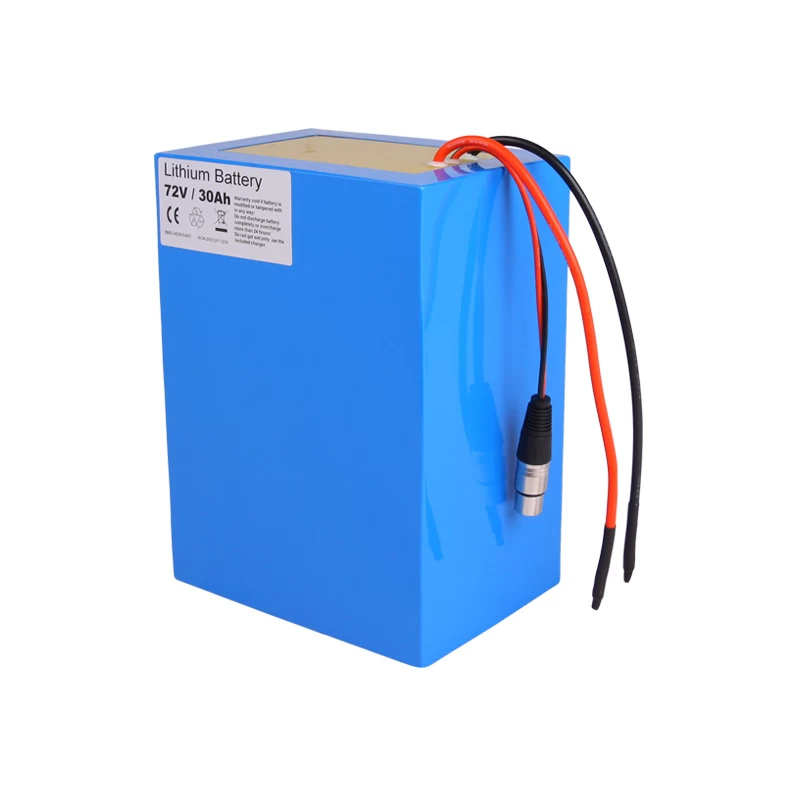

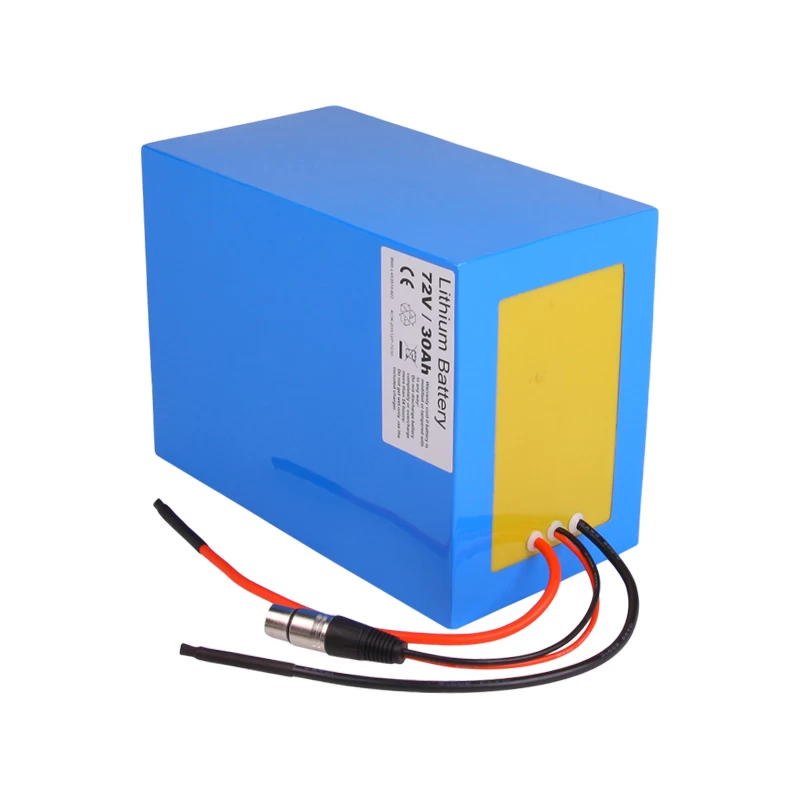

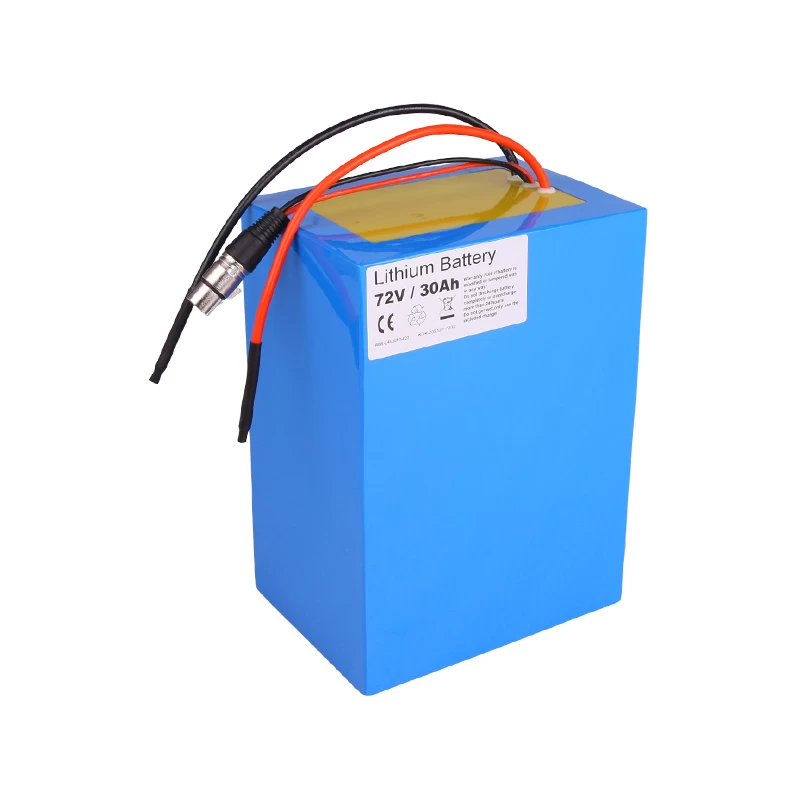

3000W 72V30Ah Lithium ion Battery Pack For Electric Motorcyle

The 72v30Ah is using the most safe Lithium Phosphate technology (LiFePO4 or LFP),

built into high quality BMS with 40A continuous discharge current ,they are ideal for 3000W Electric scooters/motorcycles .



Product name


3000W 72V30Ah Lithium ion Battery Pack For Electric Motorcycle




Highlight:

  • The Lithium Ion Battery 72v30Ah offers high level safety that using Lithium Phosphate technology (LiFePO4 or LFP)
  • High-end MOS transistor ,low internal resistance,more stable current
  • Quality construction with Automotive spot welding eliminating human error
  • Pure nickel strip can pass high current,and will not get rusty even use for longer time .
  • 40A BMS (Battery Management System) balances cells and protects cells from overcharge, over discharge, short circuit and overheating.

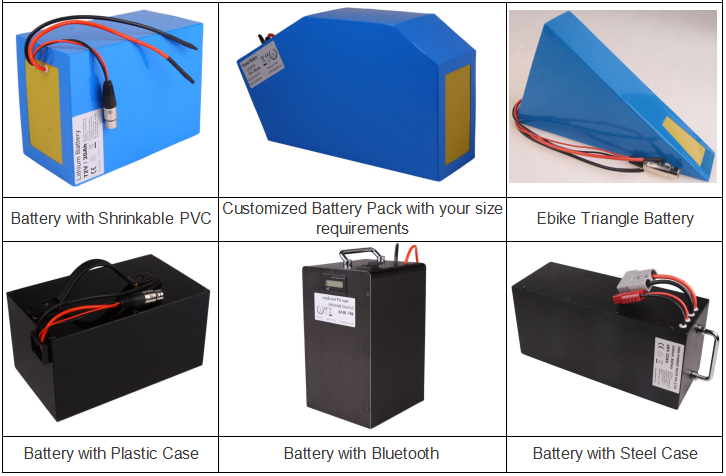

  • Customized Shape/Size design according to your requirements. (Shrinkable PVC,Plastic Case,Steel Stainless,Aluminum case for your choose .)



Specification


Nominal Voltage

72V

Nominal Capacity

30Ah

Cells

LiFePO4 26650 3.2V

Configuration

24S9P

Dimensions

(can be customized)

Weight

20.5kg

Continuous Discharge Current

40A

Peak Discharge Current

80A

Full Charged Voltage

87.6V   (3.65V per cell)

Charge Cut-off Voltage

93.6V   (3.9V per cell)

Discharge Cut-off Voltage

48V    (2.0V per cell)

Standard Charge Current

6A

Charge Method

CC/CV

Charge Temperature

0°C--45°C

Discharge Temperature

-10°C--60°C

Cycle Life

2000 times (80% of initial capacity at 0.2C rate, IEC Standard)

Warranty

Battery warranty 24 months, charger warranty 12 months (subject to user guidelines being followed)



More Features


● Drop-in replacement for lead acid batteries .

● Maintenance-free, modular, and lightweight,up to 60% weight saving

● Longer life compare to lead acid battery,more than 2000 cycles life time @80% DOD .

● More energy with 1/3 smaller size

●Easy installation,installed in any position.



Related Product



Applications


With 10 years experience of making LiFePO4/NCM/LTO packs, we can customize any packs for you.

Please email us at service@osnpower.com to get solution and quotation.
