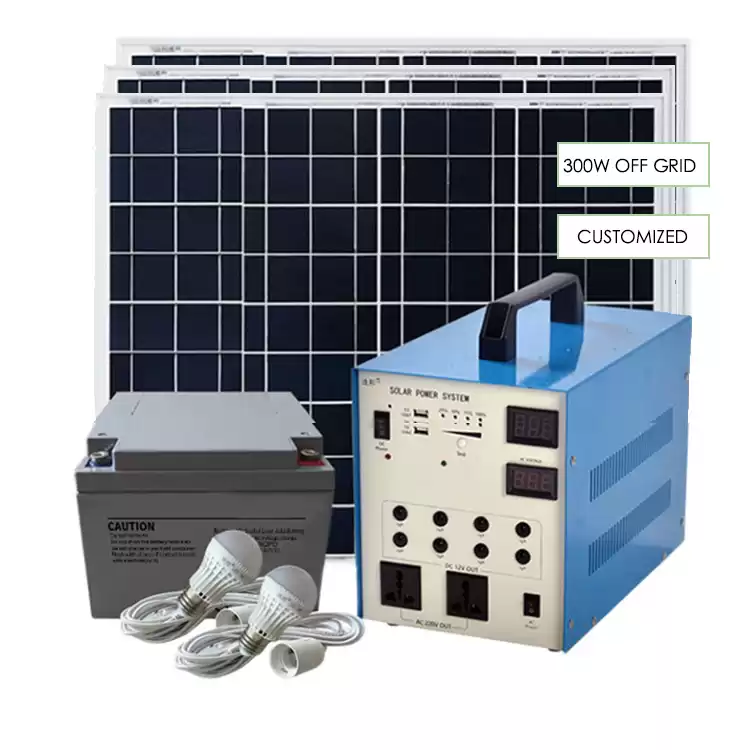

300W Solar Panel Power AC DC Solar System
Mailely solar power systems are usually used in a remote area with a lack of reliable utility but abundant sunshine. The inverter /charger adopts a multi-core processor design and advanced MPPT control algorithm to realize intelligent management. Reliable standard equipment, has quick response speed and excellent high transfer efficiency. The solar panel is monocrystalline panel, Encapsulated with tempered glass and waterproof resin, our solar panel is very sturdy. This solar power system is convenient to carry and easy to install. Very suitable for home use, and can also be used for outdoor camping, travel trailer , etc.
Load example:
Can bring electrical appliances within 300W
|
|
|
200W TV
|
Use alone for about 7 hours
|
|
50W Fan
|
Use alone for about 28 hours
|
|
30W bulb
|
Use alone for about 48 hours
|
Product Specifications:
|

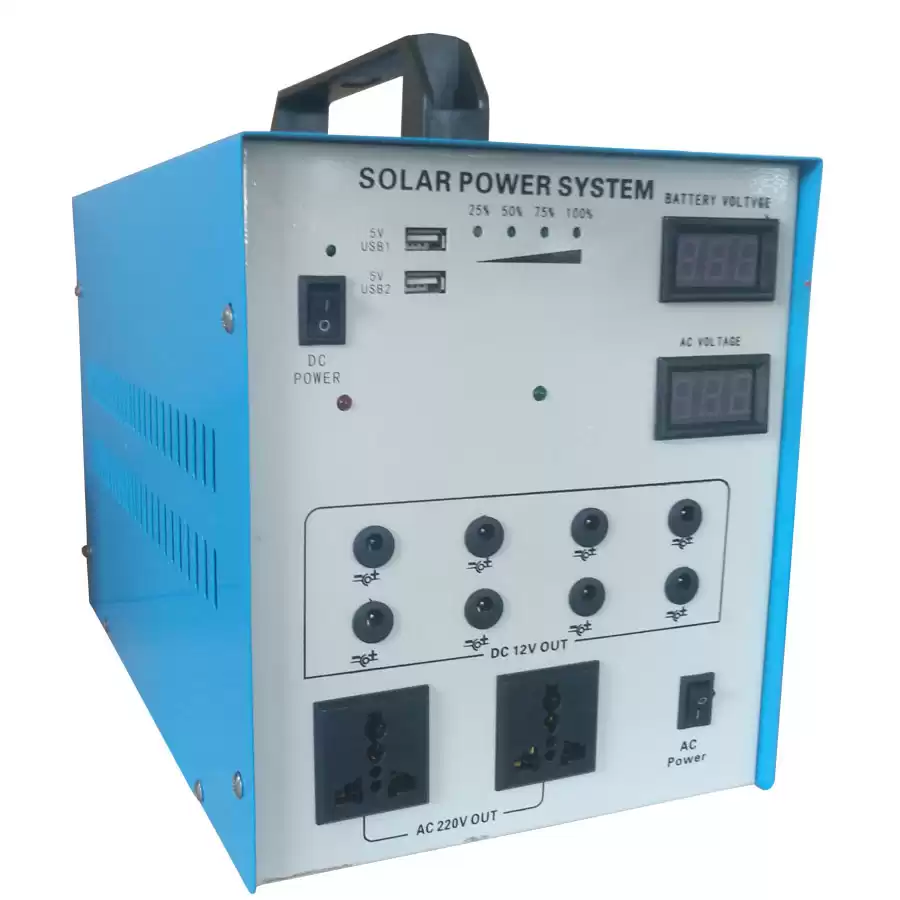

Low Frequency Pure Sine Wave Inverter
|
Input voltage
|
DC12V
|
|
Maximum charging current
|
20A
|
|
Maximum current
|
25A
|
|
USB
|
1A/5V
|
|
LED indicator
|
Switch, battery
|
|
AC220V output interface
|
2PCS
|
|
DC12V output interface
|
8PCS
|
|
Charging control method
|
PWM Controller
|
|
Temperature difference supplement
|
-4MV/0°/2V
|
|
Load protection
|
Overcharge, overdischarge, overload, short circuit
|
|
Size
|
345*210*245mm
|
|
Weight
|
4.03KG
|
|
Built-in inverter
|
300W
|
|
Solar panel *1
|
Maximum output power（Pm）
|
100W
|
|
Optimal power voltage (Vmp)
|
17.6V
|
|
Optimal power current (Imp)
|
5.71A
|
|
Open circuit voltage (Voc)
|
21V
|
|
Short circuit current (Isc)
|
6.4A
|
|
Size
|
1200*540*30mm
|
|
Weight
|
7KG
|
|
Conversion efficiency
|
18%
|
|
Power deviation
|
3%
|
|
Cell
|
Monocrystalline silicon
|
|
Service life
|
More than 25 years
|
|
Battery *1
|
Battery Type
|
Valve-controlled maintenance-free gel battery
|
|
Voltage
|
12V
|
|
Capacity
|
120AH
|
|
Size
|
407*173*209mm
|
|
Weight
|
32.5KG
|
|
Accessories
|
LED lights *2
|
12V/3W
|
|
LED light wire *2
|
5M
|
|
Data line *1
|
|
|
* Accessories such as brackets and cables can be configured according to personal installation environment requirements.
* 1W LED lamp is equivalent to 10W incandescent lamp brightness
* Your requirements can be customized.
|
