What is a power inverter?
A power inverter is a device which converts battery output (DC, or direct current) into 110v or 230V AC mains electricity (alternating current). 110-230V AC(vary from different countries) is the type of electricity supplied by utility companies to run standard domestic appliances such as a TV, fridge, radio, lights or to charge a laptop / mobile phone etc. If you have a battery, connecting a power inverter will enable you to power household appliances in areas with no access to mains electricity; such as in a motorhome, caravan, boat, farm or any other remote location. Inverters are also perfect for off-grid and back up systems for accidental power cuts.

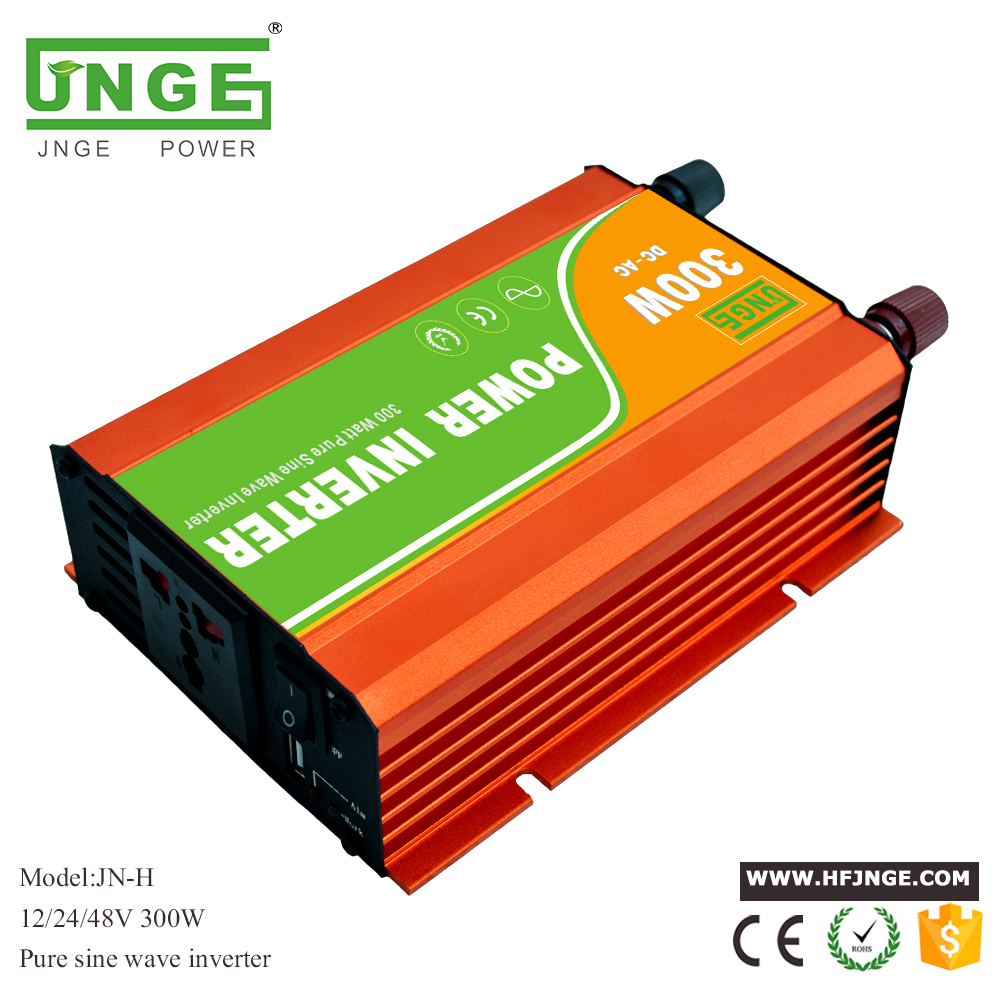

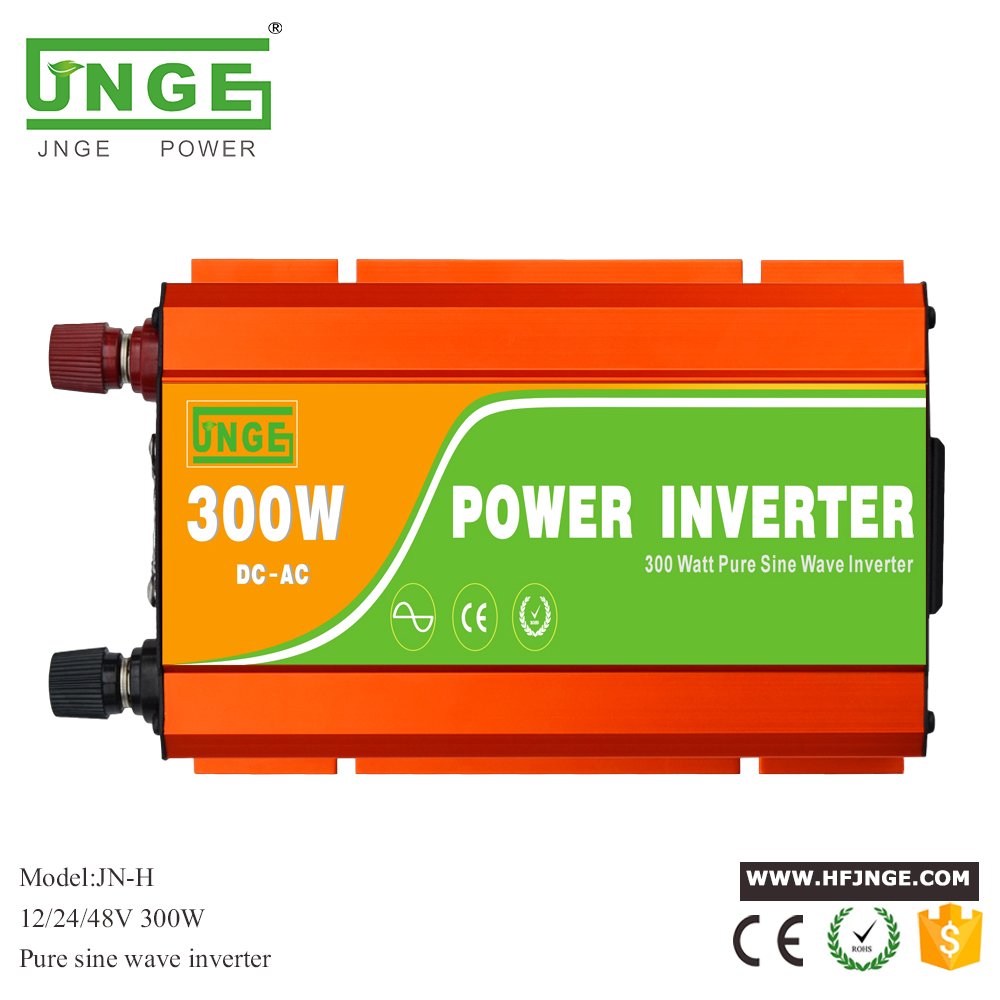

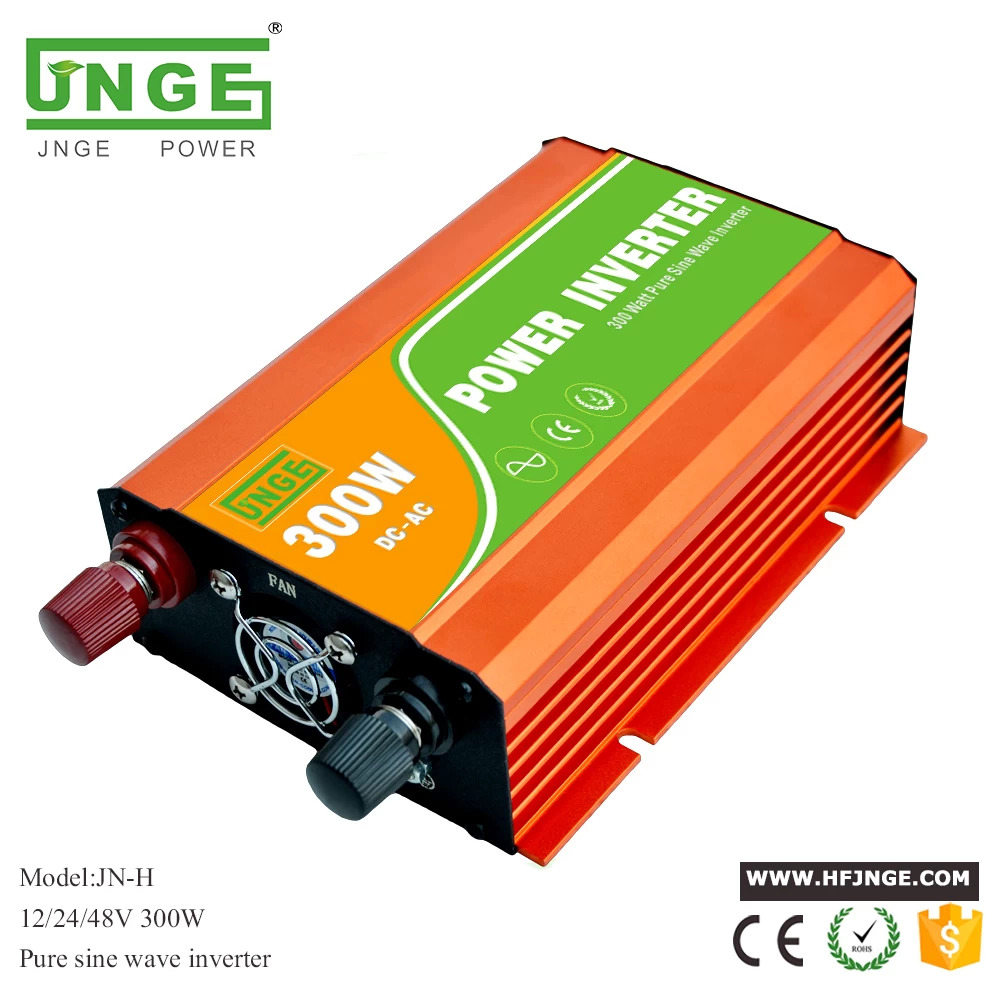

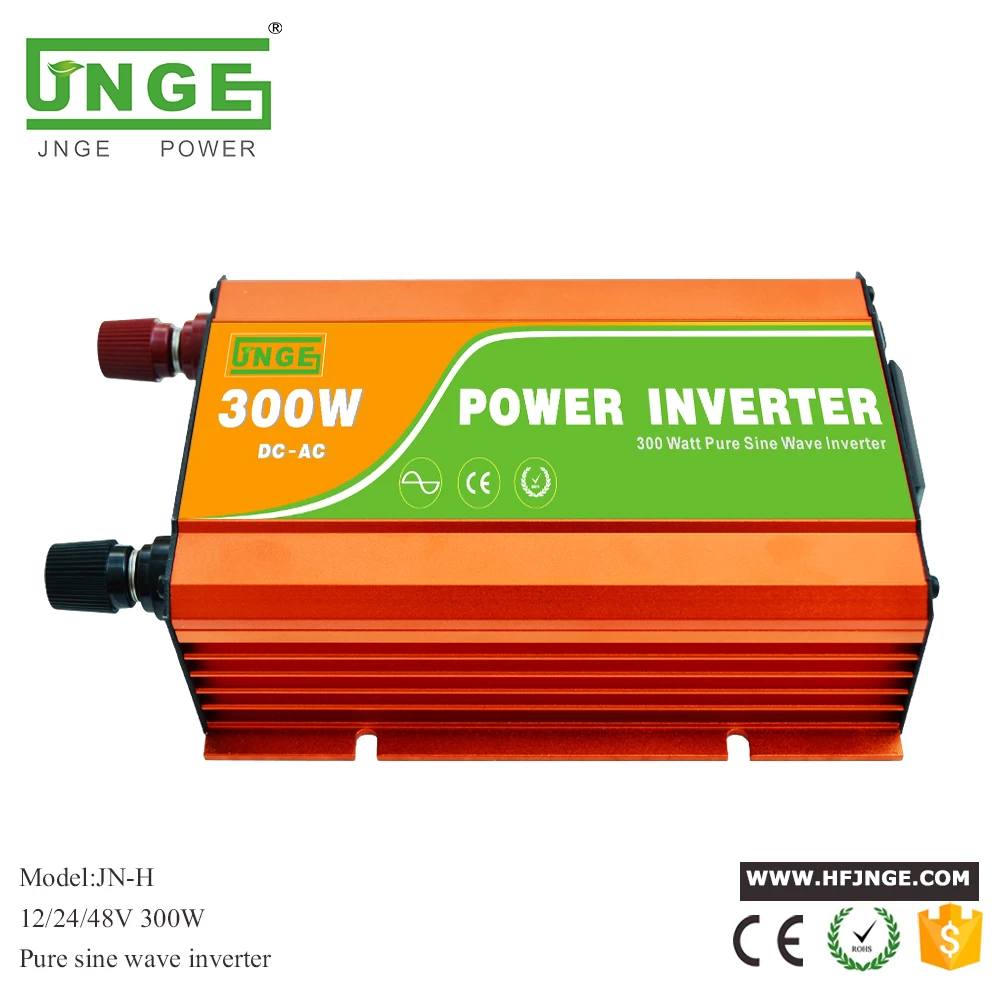

This is a 300W 12V pure sine wave power inverter which can generate 300W of continuous power and up to 600W of power at peak times (peak time reserve capacity is useful if more energy is required to start an appliance than for its continuous running).
This is a pure sine wave type of inverter, which means that the 110-230VAC output harmonically follows a smooth sine wave and is almost identical to normal mains electricity. Pure sine wave output is far superior than square sine wave or modified sine wave output for running appliances. This is because:
It is suitable for a broader range of appliances (for example, appliances with electric motors can not be powered by modified sine wave inverters)
It is more efficient compared to modified sine wave inverters.
Technology Parameter :
|
Power Level
|
300W
|
500W
|
1000W
|
2000W
|
3000W
|
4000W
|
5000W
|
6000W
|
|
Rated Power
|
300W
|
500W
|
1000W
|
2000W
|
3000W
|
4000W
|
5000W
|
6000W
|
|
Peak Power
|
600W(<1S)
|
1KW(<1S)
|
2KW(<1S)
|
4KW(<1S)
|
6KW(<1S)
|
8KW(<1S)
|
10KW(<1S)
|
12KW(<1S)
|
|
Input Voltage
|
12V/24V/48V
(Can custom)
|
12V/24V/48V
(Can custom)
|
12V/24V/48V
(Can custom)
|
12V/24V/48V
(Can custom)
|
24V/48V
(Can custom)
|
24V/48V/96V
(Can custom)
|
24V/48V/96V
(Can custom)
|
24V/48V/96V
(Can custom)
|
|
Output Voltage
|
100VAC±5%/110VAC±5%/120VAC±5%
or 200VAC±5%/220VAC±5%/240AC±5%(Can custom)
|
|
Output Frequency
|
50HZ±0.5HZ or 60HZ±0.5HZ
|
|
Output Waveform
|
Pure Sine Wave
|
|
Wave form distortion
|
THD＜3%(linear load)
|
|
Output Peak Efficiency
|
Maximum 94%
|
|
Starting Mode
|
Front and back the bipolar soft stat
|
|
Switching Time
|
<=10mS
|
|
Switching Way
|
DC/AC can be automatically set priorities
|
|
Cooling
|
Intelligent air cooled (fan start over 45 degrees)
|
|
Protect Function
|
Under voltage /Overvoltage
|
LED red light turn on , automatic recovery, buzzer alarm, DC-AC priority automatically switch to the mains, switch indicator light. Automatically restored automatically switch to the inverter power supply, switch indicator light.
|
|
Over-Load
|
LED red light turn on , lock, buzzer alarm, DC-AC priority automatically switch to the mains, switch indicator light. Automatically restored automatically switch to the inverter power supply, switch indicator light.
|
|
Over-Temperature
|
LED red light ,self-recovery, buzzer alarm,DC-AC priority automatically switch to the mains, switch indicator light. Automatically restored automatically switch to the inverter power supply, switch indicator light.
|
|
Short Circuit
|
LED red light ,self-recovery ,buzzer alarm, DC-AC priority automatically switch to the mains, switch indicator light. Automatically restored automatically switch to the inverter power supply, switch indicator light.
|
|
Input Reverse Connection
|
Diode, fuse
|
|
Working Temperature
|
﹣20°-—+70°
|
|
Stock Temperature
|
﹣30°-—+75°
|
