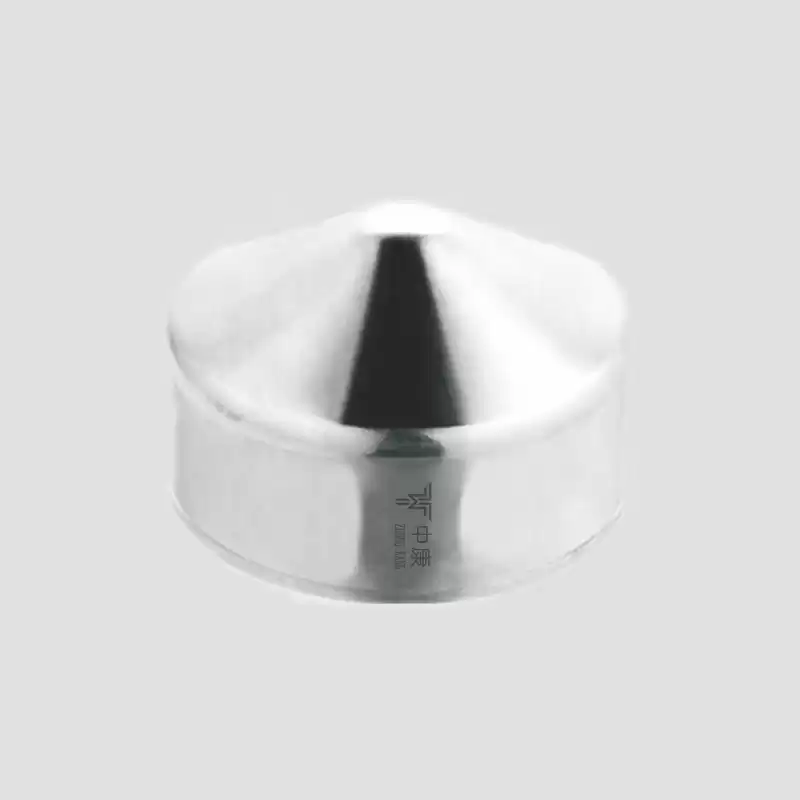

Stainless steel cap, also known as plug, is always installed at the end of the pipeline to close it.It ranges from 15-108mm, but regularly we prepare the stock of 15-54mm, for bigger size, end cap is not often used. Sometimes installers use blind flange instead.

Welded Connection Definition：

Socket Argon Arc Welded Connection:

● Insert the stainless steel pipe into the fitting socket, with the connection mode of TIG

● Insert the stainless steel pipe into the fitting socket or pipes, with the connection mode of TIG .

● The pipe wall thickness of Socket weld is from 0.6 to 1.5mm, wall thickness over 1.5mm is suitable to butt welding

Suitable for low pressure fluid transportation of hot and cold water，direct drinking water、heating、air condition、fire protection and gas for civil use , and also for low-pressure fluid transportation pf pharmaceutical , beverage ,food , chemical and other industries.
