304 inox plumbing stainless steel round tube connectors
|
Item
name
|
Item No.
|
Size (DN/mm)
|
Out dia (mm)
|
|

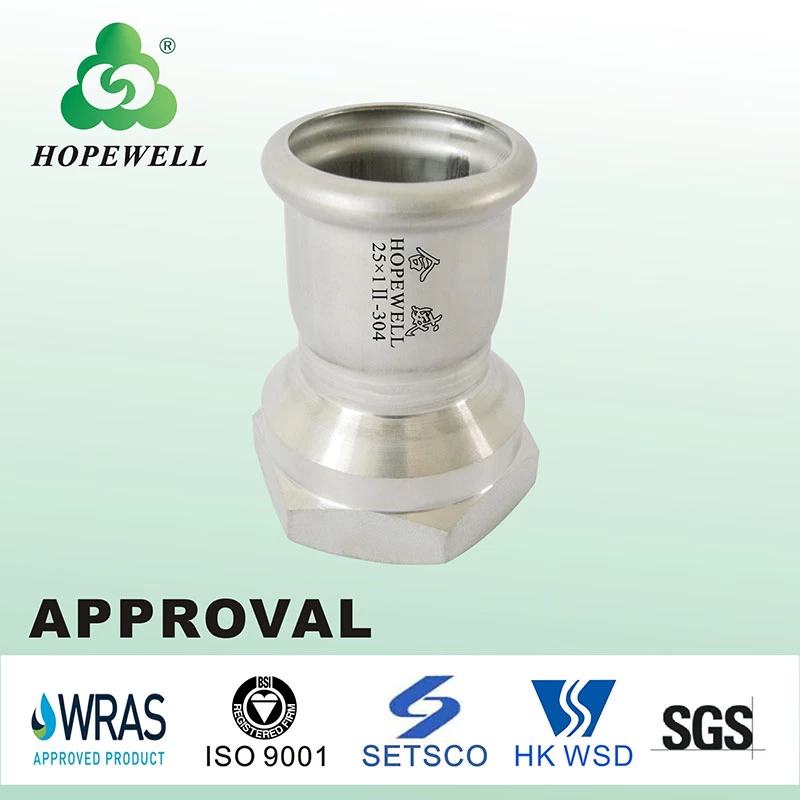

Female coupling-A
|
HW12161
|
DN15×Rc1/2
|
15.9×Rc1/2
|
|
Female coupling-A
|
HW12162
|
DN20×Rc1/2
|
22.2×Rc1/2
|
|
Female coupling-A
|
HW12163
|
DN20×Rc3/4
|
22.2×Rc3/4
|
|
Female coupling-A
|
HW12164
|
DN25×Rc1
|
28.6×Rc1
|
|
Female coupling-A
|
HW12165
|
DN32×Rc1
|
34×Rc1
|
|
Female coupling-A
|
HW12166
|
DN32×Rc1-1/4
|
34×Rc1-1/4
|
|
Female coupling-A
|
HW12167
|
DN40×Rc1-1/4
|
42.7×Rc1-1/4
|
|
Female coupling-A
|
HW12168
|
DN40×Rc1-1/2
|
42.7×Rc1-1/2
|
|
Female coupling-A
|
HW12169
|
DN50×Rc1-1/2
|
48.6×Rc1-1/2
|
|
Female coupling-A
|
HW12170
|
DN50×Rc2
|
48.6×Rc2
|
Hopewell produce 304 inox plumbing round tube connectors and stainless steel tube connectors, good reason to choose our tube connector
Standard:
tube connector standard: GB/T 19228.1-2003 (including EN10312 standard and GB Ⅱ standard);
Pipe standard: GB/T 19228.2-2003
Sealing ring standard: GBT 19228.3-2003
Material for tube connector:
Stainless steel 304 and 316 available.
Sealing ring material: EPDM
stainless steel tube connectors range:
Coupling -- Stainless steel equal pipe coupling, Reducer-A, Reducer-B, Adjustable coupling, Female coupling, Rotatable coupling, Male coupling;
Elbow -- equal elbow, plain elbow, reducing elbow, Female elbow, Based female elbow, Short female elbow, Male elbow;
Tee -- equal tee, reducing tee, Female tee, Male tee;
Pipe cap, pipe bridge and Flange.
Stainless steel pipe
Sizes range for stainless steel tube connectors:
The norminal diameter are: DN15, 20, 25, 32, 40, 50, 65, 80 and DN100, including EN10312 standard and GB Ⅱ standard.
EN10312 standard out diameters are: 18, 22, 28, 35, 42, 54, 76.1, 88.9, 108mm.
GB Ⅱ standard out diameters are: 15.9, 22.2, 28.6, 34, 42.7, 48.6, 76.1, 88.9, 108mm.
Under production:
Install Effect:
Loading:
