305W monocrystalline solar panel
Spcifications of 60 cell 300W-315W Mono solar panel
|
Electrical Characteristics of Mono solar panels
|
|
Module No.
|
UOM
|
SW60-300
|
SW60-305
|
SW60-310
|
SW60-315
|
|
Rated Maxmum Power-Pmax
|
WP
|
300W
|
305W
|
310W
|
315W
|
|
Maxmum Power Voltage-Vmp
|
V
|
32.65
|
33.0
|
33.35
|
33.7
|
|
Maxmum Power Current -Imp
|
A
|
9.2
|
9.25
|
9.3
|
9.35
|
|
Open Circuit Voltage-Voc
|
V
|
39.1
|
39.4
|
39.8
|
40.1
|
|
Short Circuit Current-lsc
|
A
|
9.75
|
9.8
|
9.85
|
9.9
|
|
Power Tolerance
|
%
|
+/-3
|
|
Module Efficiency
|
%
|
18.3
|
18.6
|
18.9
|
19.2
|
|
Current Temperature coefficient
|
%/k
|
0.06±0.01
|
|
Voltage Temperature Coefficient
|
mv/k
|
-(155±10)
|
|
Power Temperature Coefficient
|
%/k
|
-(0.5±0.05)
|
|
Nominal Operating Cell Temperature(NOCT)
|
℃
|
45±2℃
|
|
Standard Test Conditions STC:1000W/Wm2, spectrum
AM1.5 and cell temperature 25ºC.
|
|
Mechanical & Packaging Characteristics
|
|
Type of Solar Cell
|
|
Mono Crystalline 156*156mm
|
|
Solar cell and Configuration
|
|
60cells(6*10)
|
|
Dimension of Module
|
mm
|
1640*992*35
|
|
Weight
|
kg
|
17.5
|
|
Junction
Box
|
|
IP67 Rated
|
|
Type
of Glass and Thickness
|
|
Low-ron Tempered Glass
|
|
Frame
|
|
Clear anodized aluminium alloy, color: silver
|
|
packing Configuration and Quantity per Pallet
|
|
30 pcs per carton and one carton per pallet
|
|
Container Loading Capacity for 20GP
|
|
364
|
|
Container Loading Capacity for 40GP
|
|
840
|
|
Container Loading Capacity for 40HQ
|
|
910
|
|
Warranty: 15 years product warranty and 25 years performance
warranty ensure reliability of modules.
|
|
Note: All specifications & characteristics we can provide
depend the customer's requirement.
|
Dimensions of 60 cell 300W-315W Mono solar panel
Curve of 60 cell 300W-315W Mono solar panel

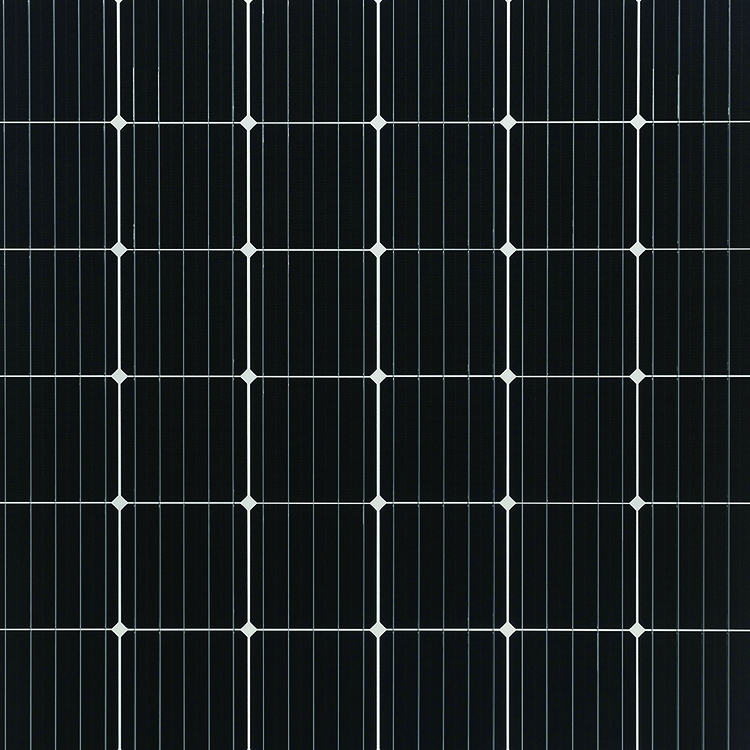

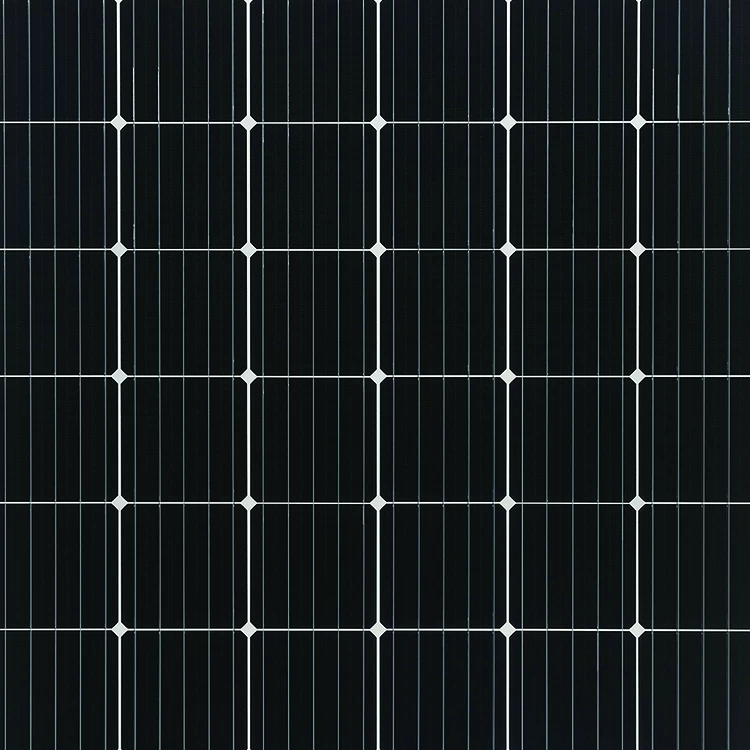

Details of Mono solar panels
Assemly of 60 cell 300W-315W Mono solar panel
Package of 60 cell 300W-315W Mono solar panel
Payment of 60 cell 300W-315W Mono solar panel
|
|
|
EXW
|
30% T/T in advance, paid the balance before shipment
|
|
FOB
|
|
CFR(C&F)
|
30% T/T in advance, paid the balance against copy of B/L
|
|
CIF
|
|
|
L/C amount above 50,000 usd, we can accept L/C at sight
|
|
|
Amount lower than 5000usd
|
|
|
|
|
7~10days after receiving payment for one container
|
