Features
Over 98.8% Max. efficiency
3 MPPT design with precise MPPT algorithm
Strings intelligent monitoring, Smart I-V Curve Diagnosis supported
130% DC overload ratio, 13A input for each PV string
Wide voltage range and low startup voltage
Type II surge arrester for both DC and AC
Natural convection, Fan-less design, longer lifespan
Datasheet
|
Model Name
|

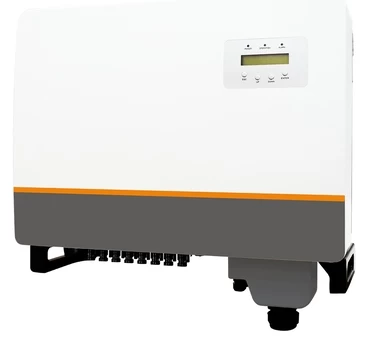

FX-INVERTER-30K
|
|
Input
DC
|
|
|
Recommended max. PV power
|
39kW
|
|
Max. input voltage /Rated voltage
|
1100V/600V
|
|
Start-up voltage/MPPT voltage range
|
180V /200-1000V
|
|
Max. input current
|
26A/26A/26A
|
|
Max. short circuit current
|
40A/40A/40A
|
|
MPPT number/Max. input strings number
|
3/6
|
|
Output
AC
|
|
|
Rated output power
|
30kW
|
|
Max. apparent output power
|
33kVA
|
|
Max. output power
|
33kW
|
|
Rated grid voltage
|
3/N/PE, 220/380V
|
|
Rated grid frequency
|
50Hz
|
|
Rated grid output current
|
45.6A
|
|
Max. output current
|
50.2A
|
|
Power Factor
|
>0.99 (0.8 leading - 0.8 lagging)
|
|
THDi
|
<3%
|
|
Efficiency
|
|
|
Max. efficiency
|
98.8%
|
|
EU efficiency
|
98.3%
|
|
Protection
|
|
|
DC reverse-polarity protection /Short circuit
protection
|
Yes
|
|
Output over current protection
|
Yes
|
|
Surge protection
|
DC Type II / AC Type II
|
|
Grid monitoring
|
Yes
|
|
Anti-islanding protection / Temperature protection
|
Yes
|
|
Strings monitoring
|
Yes
|
|
I/V Curve scanning
|
Yes
|
|
Anti-PID function
|
Optional
|
|
Integrated DC switch
|
Yes
|
|
General
Data
|
|
|
Dimensions (W*H*D) / Weight
|
647*629*252 mm/ 45kg
|
|
Topology
|
Transformerless
|
|
Self consumption
|
<1W (night)
|
|
Operating ambient temperature range / Relative
humidity
|
-25 ~ +60℃ / 0-100%
|
|
Ingress protection
|
IP65
|
|
Cooling concept
|
Natural convection
|
|
Max. operation altitude
|
4000m
|
|
Grid connection standard
|
NB/T 32004
|
|
Safety/EMC standard
|
IEC 62109-1/-2, IEC 62116, EN 61000-6-1/-2/-3/-4
|
|
Features
|
|
|
DC connection / AC connection
|
MC4 connector / OT terminal
|
|
Display
|
LCD, 2×20 Z
|
|
Communication
|
RS485, Optional: Wi-Fi, GPRS
|
