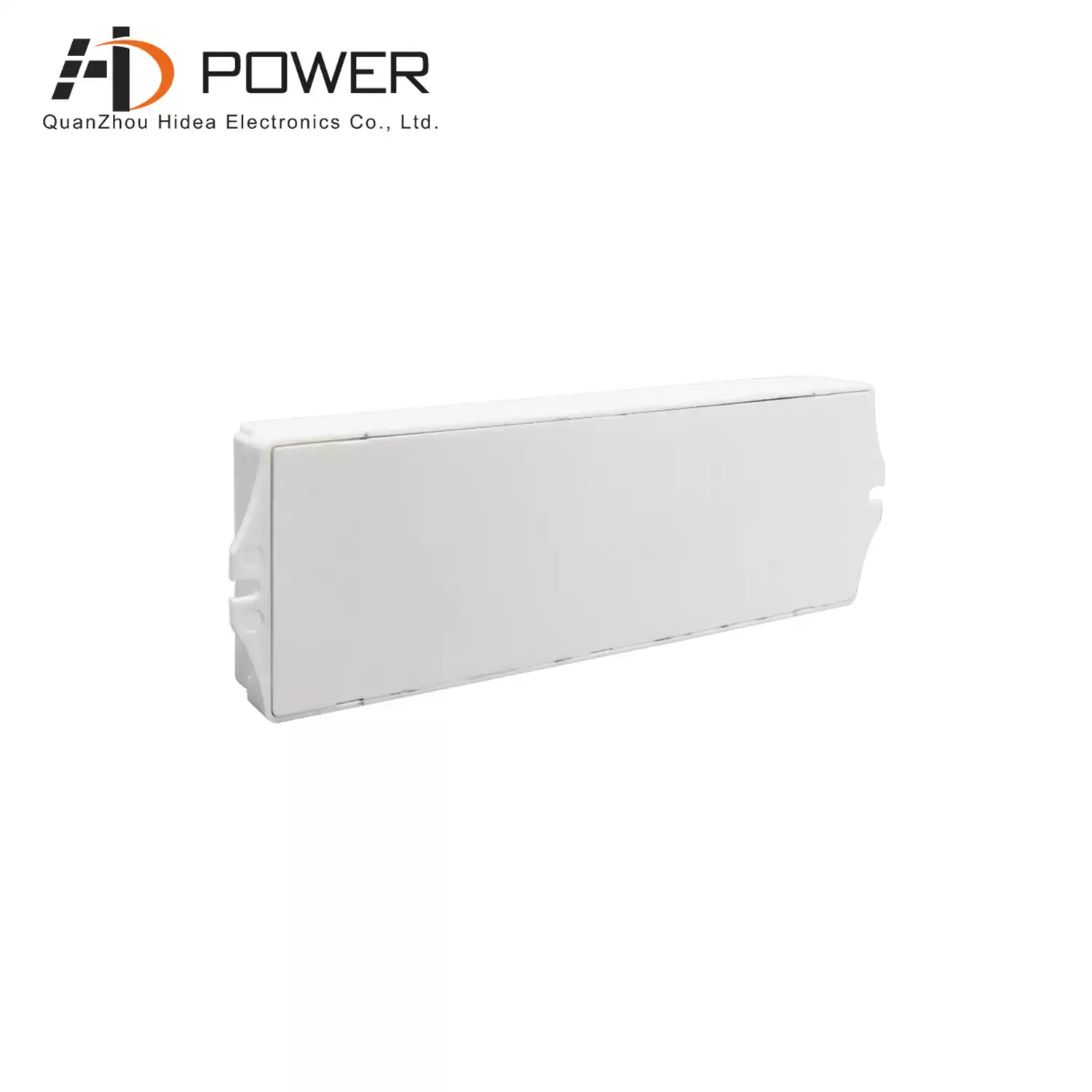

30w 12v dmx driver rgb led transformer

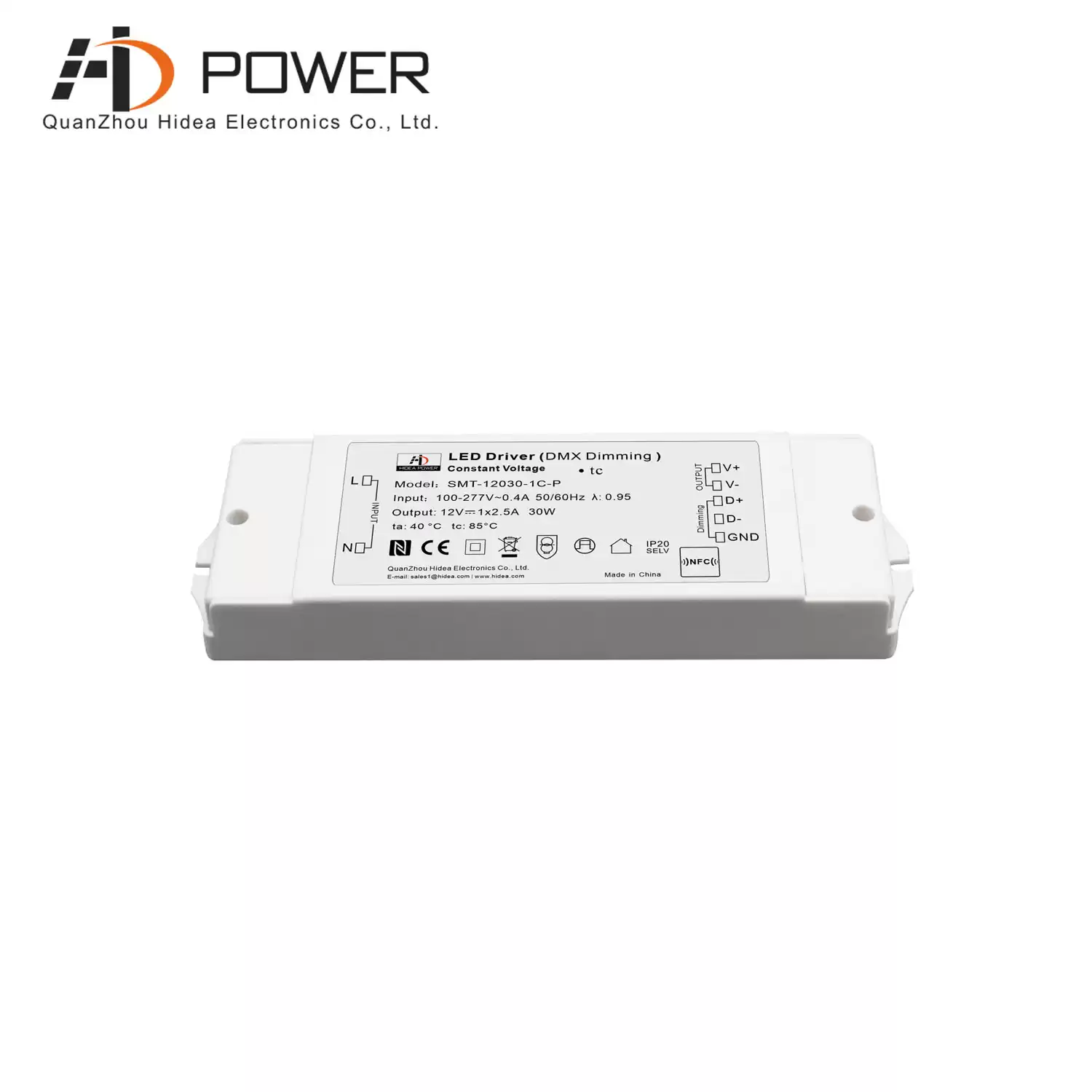

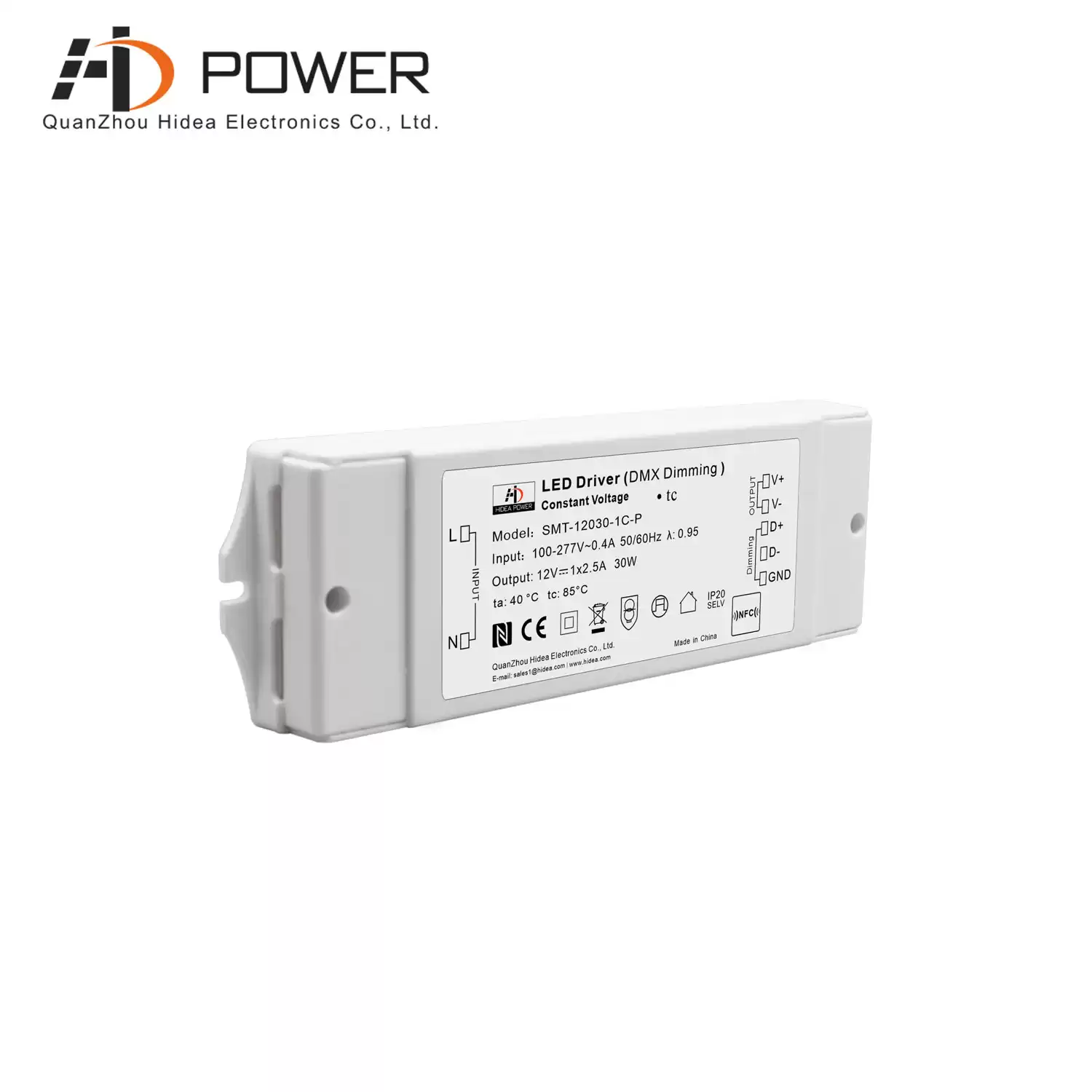

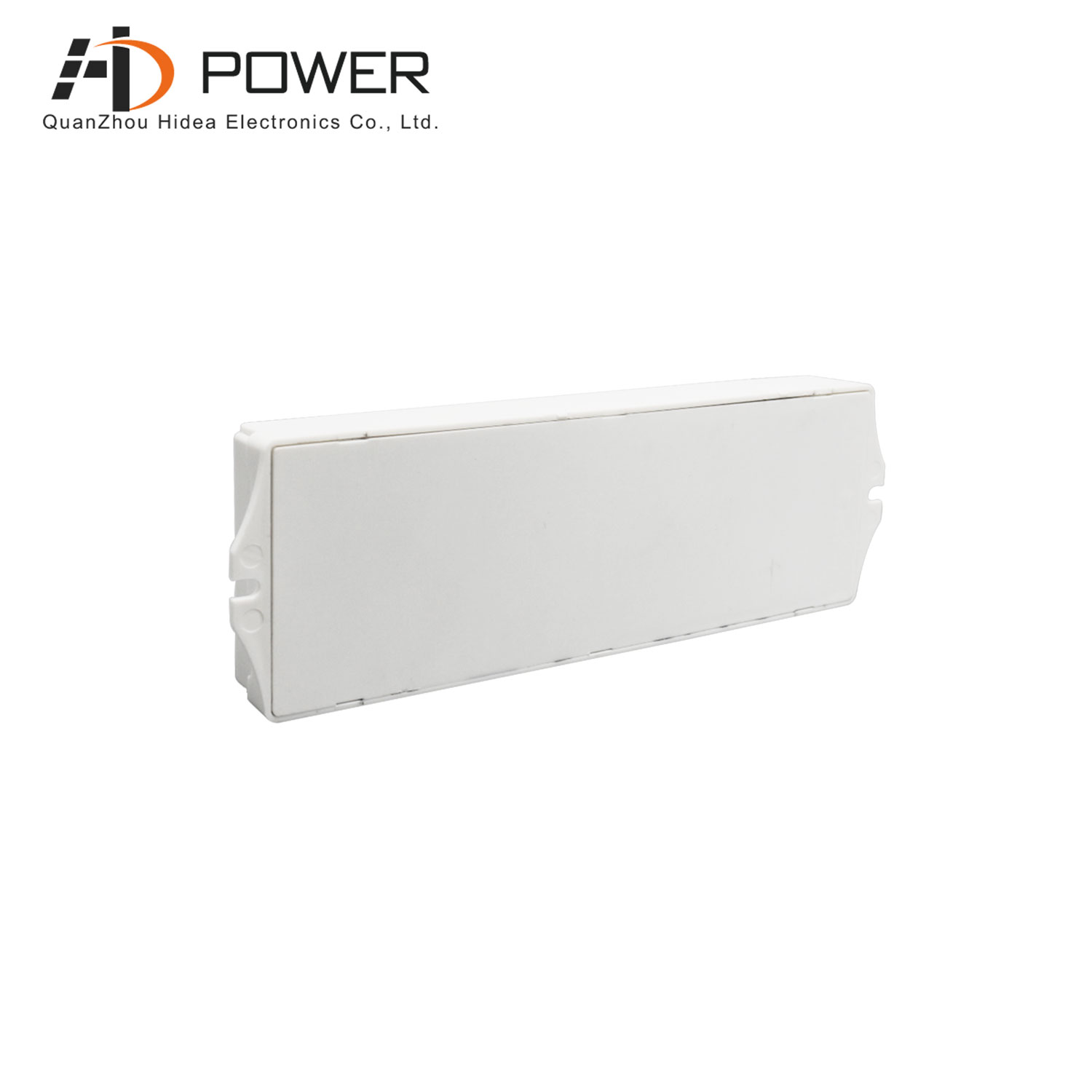

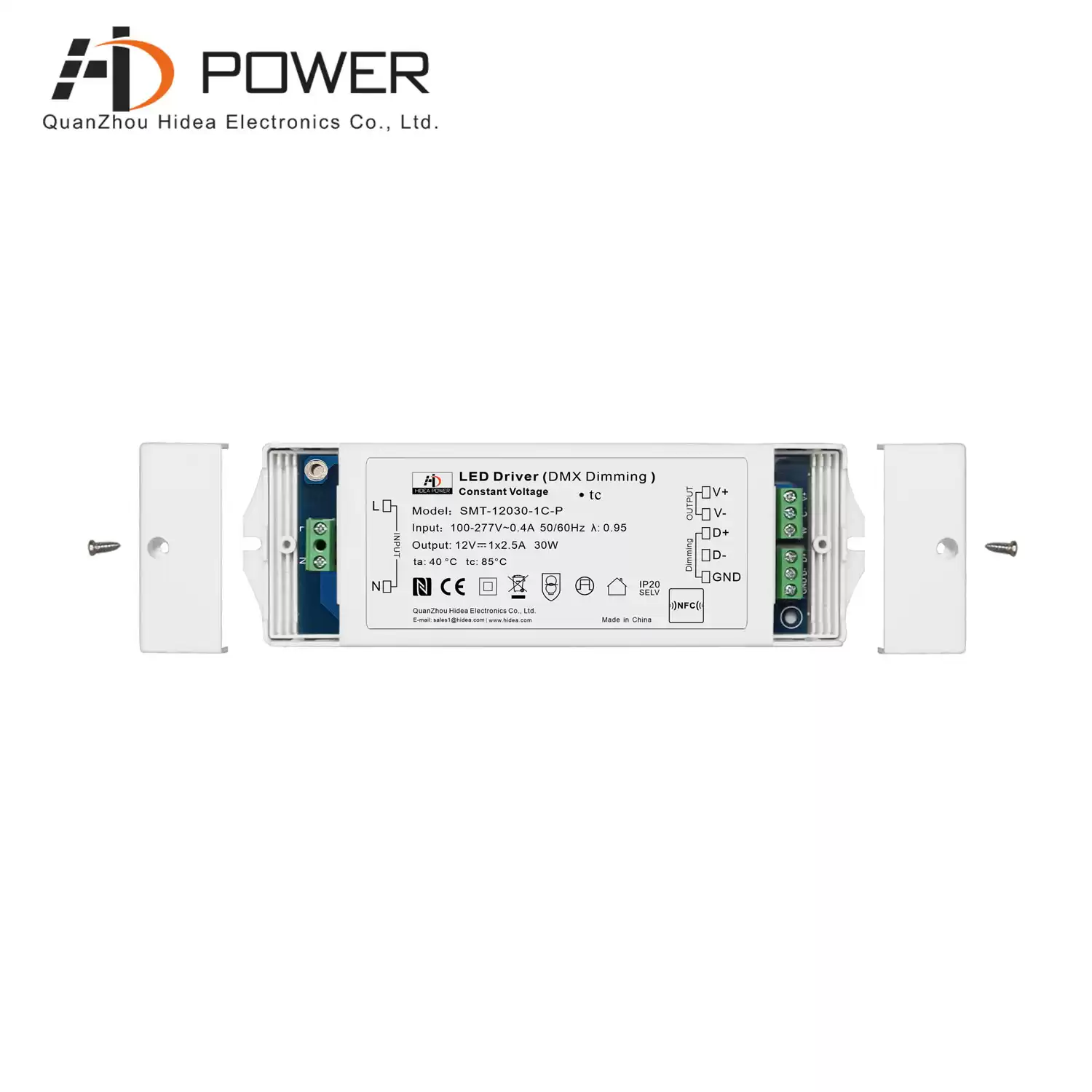

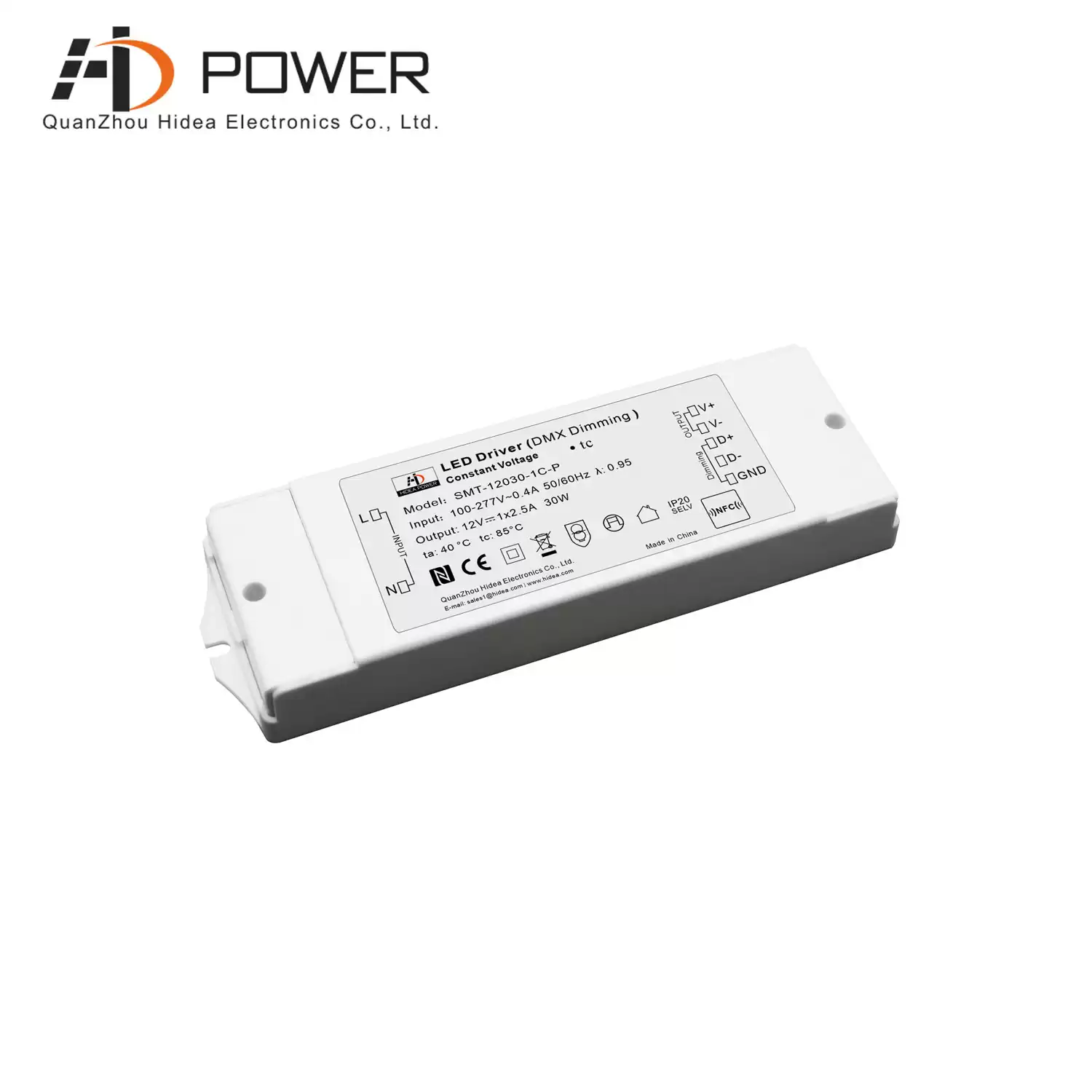

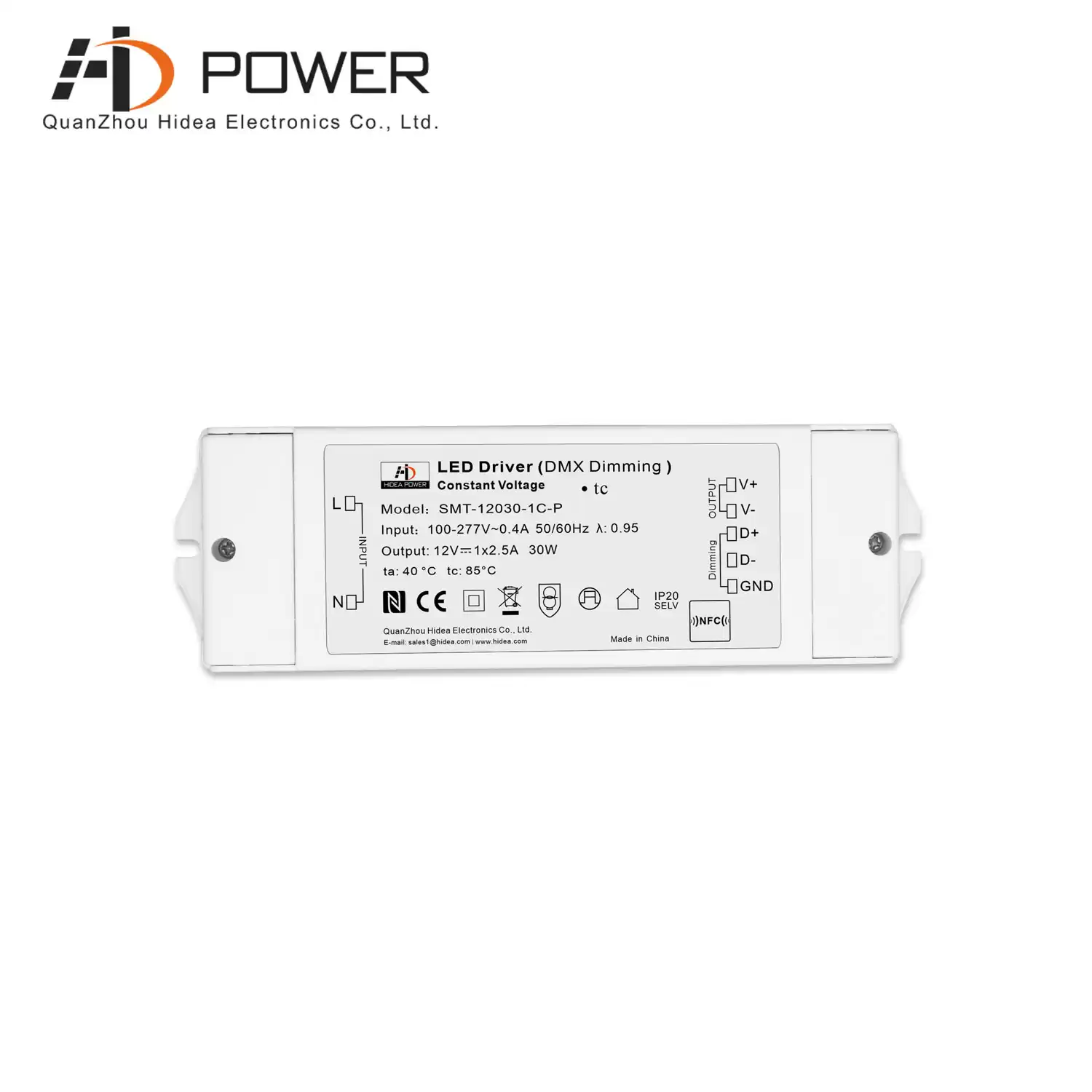

SMT-12030-1C-P is DMX dimmable 30w 12v led driver are with the RDM (Remote Device Management) function, work with BRITE-LITE LED tape lights.


  • Size171.5*54*20MM
  • Shape & SizeStandard Size
  • Output Voltage12/24Vdc
  • Output Power(Watt)30W
  • Input Voltage100-277Vac
  • Weight350g
  • Working ModeConstnat Voltage LED Driver
  • Dimming ModeDMX Dimming
  • CertificationUL/CUL
  • Warranty7 Years

30w 12v dmx driver rgb led transformer


30W Dimming led driver DMX dimmable is read and write DMX512 address or adjust output voltage by mobile Easy NFC APP or special NFC device, compatible with LTECH DMX dimmable driver 12v.


  Specification

Model SMT-12030-XC-P SMT-24030-XC-P
X=1 for DIM (DW);
Output DC Voltage 12V 24V
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Rated current CH1=2.5A CH1=1.25A
Rated power 30W  (class 2 power units)
Load Regulation ±2%
Input Voltage Range 100-277VAC
Frequency Range 47 - 63Hz
Power Factor(Typ.)@ full load PF≥0.95/ 230VAC  (Full loading)
THD(Typ.)@ full load ≤10%@120VAC  ≤20%@230VAC  ≤20%@277VAC
Efficiency(Typ.)@full load 80% @230VAC 82%@230VAC
AC Current(Max.) 0.4A 0.4A
Inrush Current (Typ.) 7A, 50%, 350us @120VAC;  25A, 50% , 200us @277VAC
Leakage current <0.5mA
Protection Short Circuit Hiccup mode, recover automatically after fault condition is removed
Over Load ≤120% ,hiccup model, recover automatically after fault condition is removed
Over temperature ≤100℃±10℃, shutdown output voltage, recover automatically after temperature drop
Protection Class II
Environment Working TEMP. -40~+60℃ (see below derating curve)
Working Humidity 20 - 90%RH ,non-condensing
Storage TEM.,Humidity -40 - +80℃,10 - 95%RH
TEMP.coefficient ±0.03%/℃(0 - 50℃)
Vibration 10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC   Safety standards EN61347-1   EN61347-2-13 (EU)   &  UL8750  UL1310 (US)
Withstand voltage I/P-O/P:3.75KVAC (EU) &  I/P-O/P:1.5KVAC (US)
Isolation resistance I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC Emission EN55015   EN61000-3-2  EN61000-3-3 (EU)  &  FCC Part 15 B (US)
EMC Immunity EN61000-4-2,3,4,5,6,11      EN61547
Others Net Weight 0.35KG
Dimension 171.5*54*20mm (L*W*H)
packing /
Notes 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.


  Compatible Light Type

30W dimmable constant voltage driver in DMX dimming are DMX512; DMX512 signal isolation, work well with Philips Hue Ledstrip white and colored light.



  Related Products

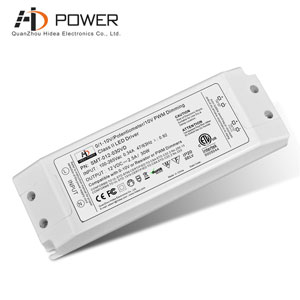

30w 12v led driver12v 30w 0-10V PWM dimming led driver , plastic case IP20 rated, 5 years warranty.
