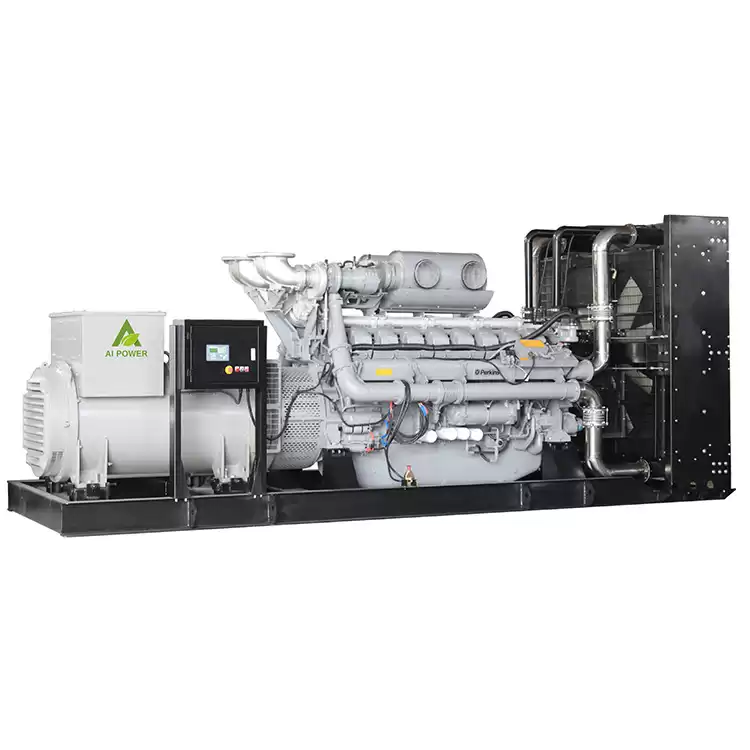

AI Generator 4012 Series perkins generator specifications 4012-46TAG3A WIth Radiator
General Features:
All qualified generator sets are subjected to a comprehensive performance test which includes 50% load, 70% load, 100% load, 110% load and to check, verify that all control systems, alarm and shut-down protection.
Equipped with battery charger and 24V high performance maintenance-free lead-acid starting batteries and connecting cables.
Stainless galvanized zinc plates with strong corrosion-proof.
Vibration isolators between the engine/alternator and base frame.
Equipped with industrial silencer and flexible exhaust hose.
Designed to comply with ISO8528/GB2820.
Powered by Perkins engine and coupled with Stamford alternator.
Water jacket preheater, oil heater and double air cleaner, etc. are available.
Phase Rating, 50Hz, PF 0,8
|
Generator set model
|
Voltage
|
Hz
|
Phase
|
P.F.
|
Prime Power
|
Standby Power
|
|
(V)
|
|
|
|
KVA
|
KW
|
KVA
|
KW
|
|
AP1880
|
230/400
|
50
|
3
|
0.8
|
1688
|
1350
|
1857
|
1485
|
Diesel Engine Specifications

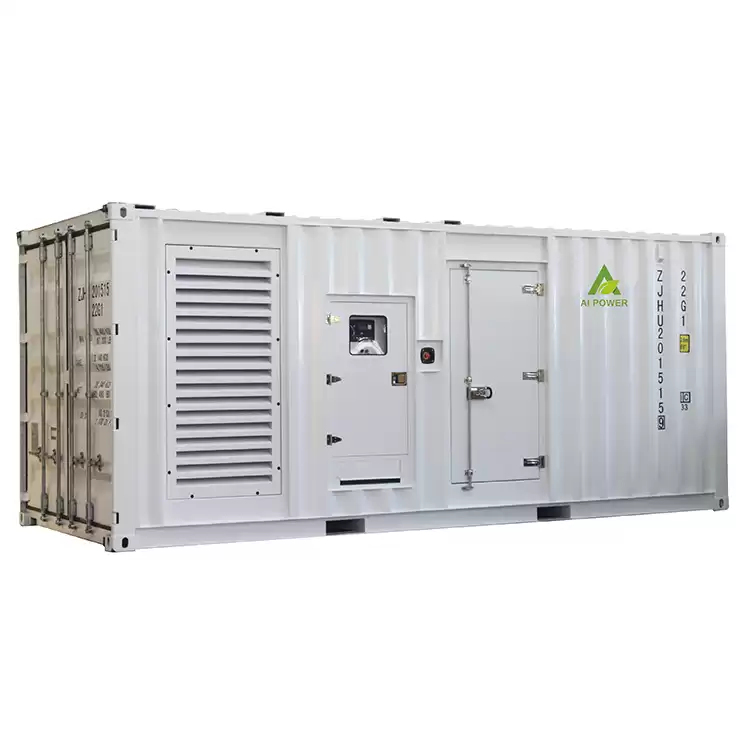

Powered by UK engine 1688kva super silent diesel generator price with 4012-46TAG3A
|
Engine manufacture
|
Perkins Engines Company Limited
|
|
Engine brand
|
Perkins
|
|
Engine model
|
4012-46TAG3A
|
|
Engine speed (rpm)
|
1500
|
|
Baseload power
|
Prime power
|
Standby power
|
|
Gross engine power (kWb)
|
1260
|
1500
|
1643
|
|
Typical Genset electrical output 0.8pf 25ºC (100 kPa) (KW)
|
1136
|
1364
|
1500
|
|
Cylinders
|
12-cylinder, 60° Vee
|
|
Cycle
|
4 stroke
|
|
Induction system
|
Turbocharged
|
|
Combustion system
|
Direct injection
|
|
Compression ratio
|
13:01
|
|
Bore * Stroke (mm)
|
160 * 190
|
|
Cubic capacity (Litre)
|
45.842
|
|
Injection system
|
Direct
|
|
Governor type
|
electronic
|
|
Fuel Consumption (litre/hour)
|
|
|
Standby
|
405
|
|
Prime
|
370
|
|
Baseload
|
310
|
|
75% output power
|
275
|
|
50% output power
|
210
|
Alternator Specifications
|
Alternator manufacturer
|
Leroy-somer Electro-technique (Fuzhou) Company Ltd.
|
|
Alternator brand
|
Leroysomer
|
|
Alternator model
|
LSA52.3S5
|
|
Control system
|
AREP
|
|
A.V.R.
|
Included
|
|
Voltage regulation
|
±1.0%
|
|
Insulation system
|
Class H
|
|
Protection
|
IP23
|
|
Rated power factor
|
0.8
|
|
Winding pitch
|
Two thirds
|
|
Winding leads
|
6
|
|
Frequency (Hz)
|
50
|
|
Voltage (V)
|
400
|
|
Phase
|
3
|
|
Output ratings (kVA/kW)
|
|
|
----------------Cont.H-40°C
|
1860/1488
|
|
----------------Standby-27°C
|
2050/1640
|
|
THF
|
<2%
|
|
TIF
|
<50
|
|
Max. overspeed (Rev/Min)
|
2250
|
|
Bearing
|
Single
|

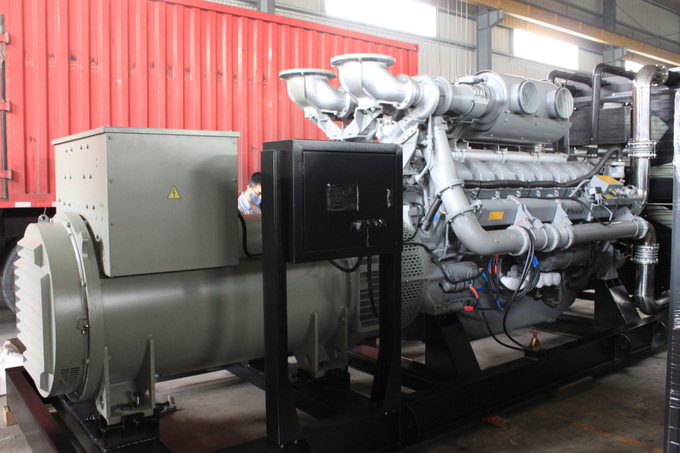

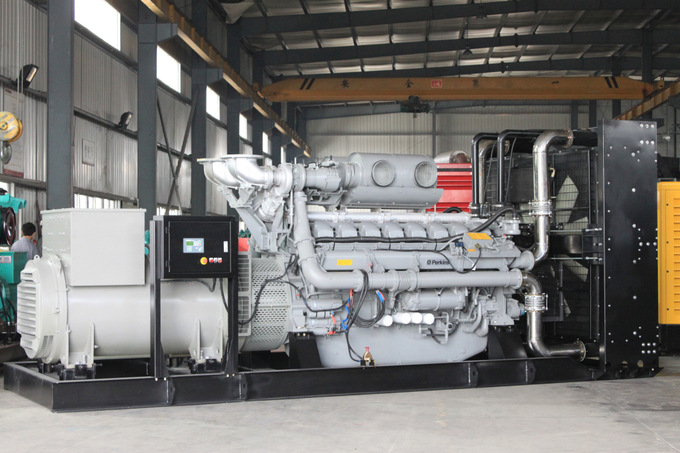

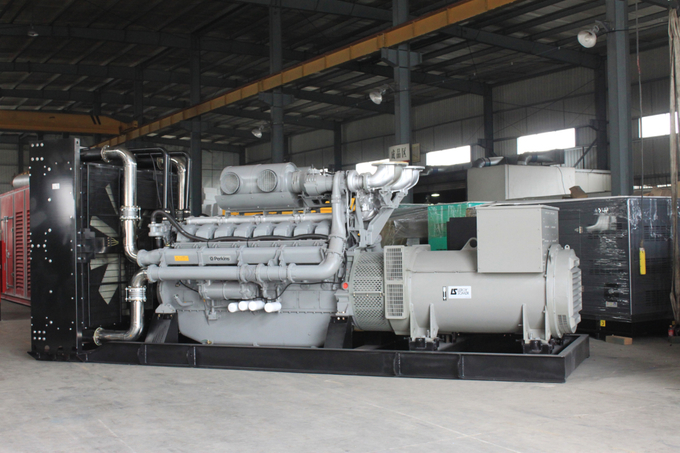

Perkins Prime Generator 1350KW/1688KVA 4016TAG1A Photos
Rating conditions: 25°C air inlet temperature, barometric pressure 100 kPa, relative humidity 30%. Please consult your distributor or the factory
for ratings in other ambient conditions. Note: For full ratings please refer to Perkins Engines Company Limited. All electrical ratings are based on an
average alternator efficiency and a power factor of 0.8. Fuel specification: BS2869: Class A2.
Rating definitions
Baseload power: Power available for continuous full load operation. No overload is permitted. Prime power: Power available for variable load with
an average load factor not exceeding 80% of the prime power rating in any 24 hour period. Overload of 10% permitted for 1 hour in every 12 hours
operation. Standby (maximum): Power available at variable load in the event of a main power network failure up to a maximum of 500 hours per
year. No overload is permitted.
