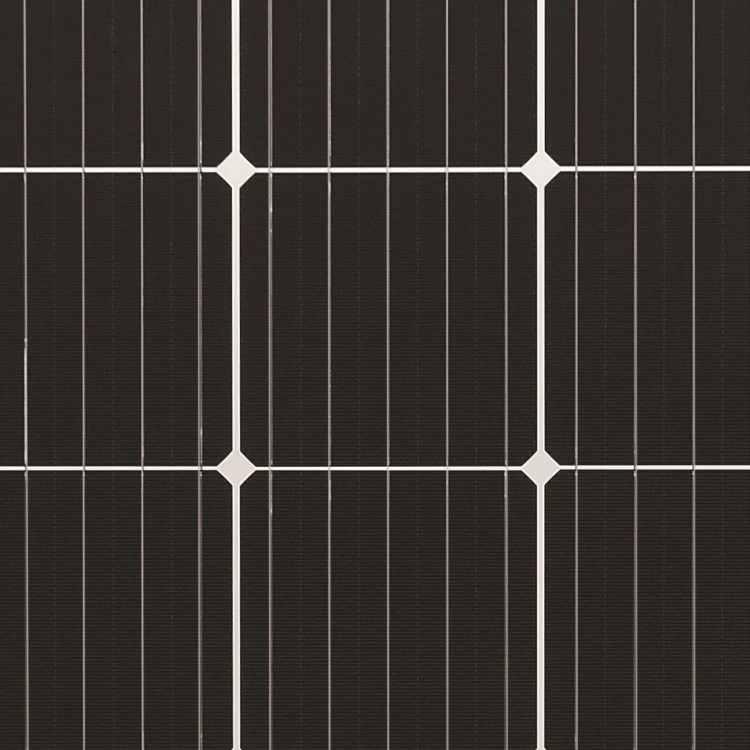

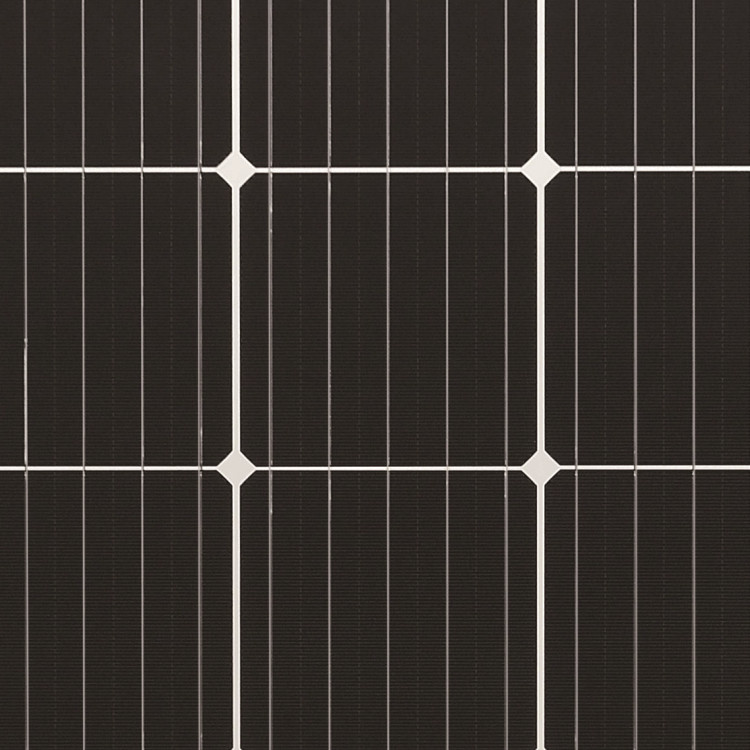

320W Mono solar panels with A grade level

320W power rate

Mono type,5BB

A grade level

System voltage Max 1000VDC




320W Mono solar panels

2_01



Spcifications of Mono solar panel from 320W-350W



Electrical Characteristics of Mono solar panels
Module No. UOM SWP72-320 SWP72-330 SWP72-340 SWP72-350
Rated Maxmum Power-Pmax WP 320 330 340 350
Maxmum Power Voltage-Vmp V 37.02 37.22 37.38 37.87
Maxmum Power Current -Imp A 8.66 8.86 9.12 9.24
Open Circuit Voltage-Voc V 45.82 46.16 46.36 46.96
Short Circuit Current-lsc A 9.23 9.42 9.62 9.8
Power Tolerance %  +/-3
Module Efficiency % 16.68 17.2 17.72 18.2
Current Temperature coefficient  %/k 0.06±0.01
Voltage Temperature Coefficient  mv/k  -(155±10)
Power Temperature Coefficient  %/k  -(0.5±0.05)
Nominal Operating Cell Temperature(NOCT) 45±2
Standard Test Conditions STC:1000W/Wm2, spectrum AM1.5 and cell temperature 25ºC.
Mechanical & Packaging Characteristics
Type of Solar Cell Mono Crystalline 156*156mm
Solar cell and Configuration  728X9
Dimension of Module mm 1950X984X40
Weight kg 22.5
Junction Box IP67 Rated
Type of Glass and Thickness Low-ron Tempered Glass
Frame Clear anodized aluminium alloy, color: silver
packing Configuration and Quantity per Pallet 30 pcs per carton and one carton per pallet
Container Loading Capacity for 20GP 288
Container Loading Capacity for 40GP 576
Container Loading Capacity for 40HQ 648
Warranty: 15 years product warranty and 25 years performance warranty ensure reliability of modules.
Note: All specifications & characteristics we can provide depend the customer's requirement.


Dimensions of 72Cells solar panels



 Curve of 72Cells solar panels



Details of Mono solar panels


Solar panel detailsSolar panel details



Assemly of 72Cells solar panels


Package of Mono solar panels




Payment of Mono solar panels
Payment Term



T/T
EXW

30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union

Amount lower than 5000usd
West Union
Delivery Time
7~10days after receiving payment for one container
