Overview
Huawei Transceiver 34060488 is promgrammed to be fully compatible and functional with all intened Huawei switching devices. The SFP optical transceiver is based on the ATM/SONET/SONET standard and is desinged to be complaint with SFP-8472 SFP Multi-source Agreement(MSA). This mondule is desinged for single mode fiber and operates at a nominal wavelength of 1550nm.
Specification
-

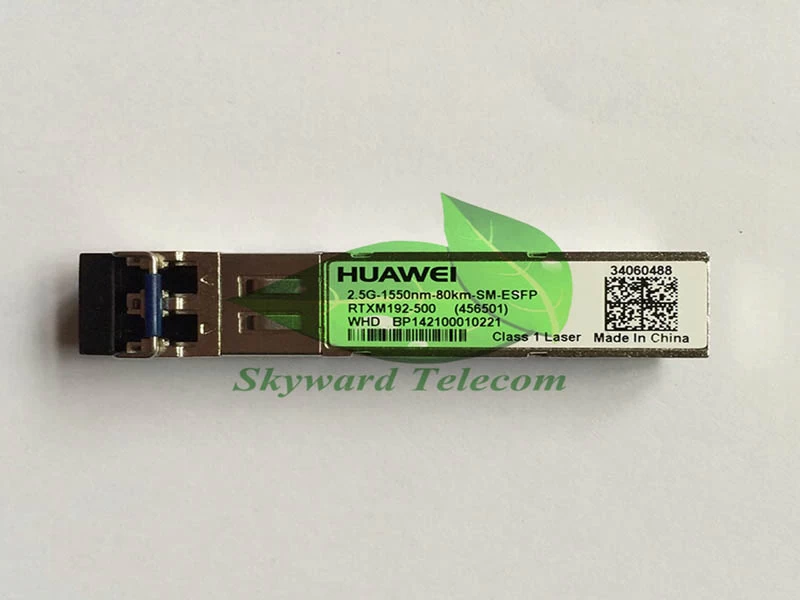

Part #: 34060488
-
Model #: 2.5G-1550nm-80km-SM-ESFP
-
Description: Optical Transceiver,eSFP,1550nm,STM16
-
Product
Series: NE40E-X8A
-
-2~3dBm,-30dBm,LC,SM,80km
-
up to 6.27GBd bi-directional data links
-
Hot-pluggable sfp footprint
-
uncooled 1550nm DFB laser transimitter
-
Duplex lc connectors
-
Built in Digital Diagnostics
-
Up to 80km over 9-125 SMF
-
Single power supply 3.3v
-
Operating temperature range C-temp: 0℃-70℃
Applications
-
SONET OC-48 LR-2/ SDH STM L-16.2
-
SONET OC-48 LR-2/ SDH STM L-4.2
-
SONET OC3-48 LR-2/ SDH STM L-1.2
-
1.25GBd Gigabit Ethernet
-
2.125GBd/ 1.08 GBd Fiber Channel
