Best North benz dump truck manufacturer in china
10 years beiben dump trucks field experience
Beiben china dump truck manufacturing
Mercedes-Benz Technology
Best beiben dumper
340HP 6x4 Beiben Dump Truck Tipper Truck 40T
Company Information

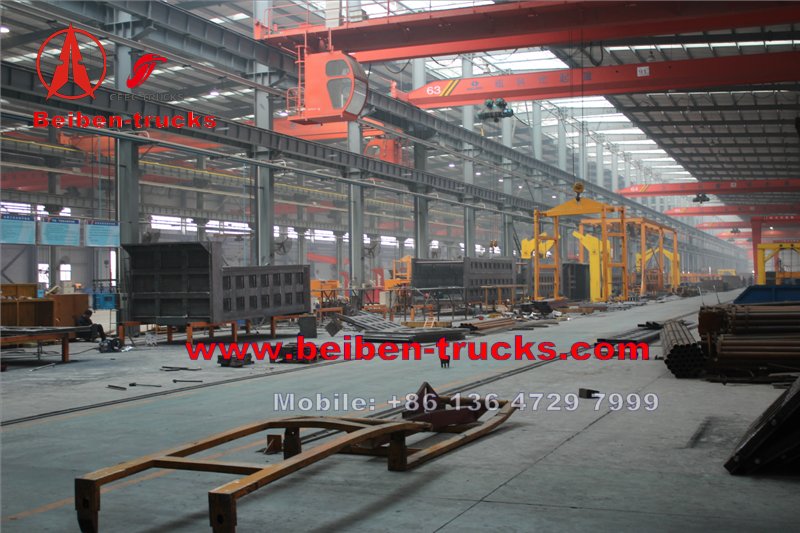

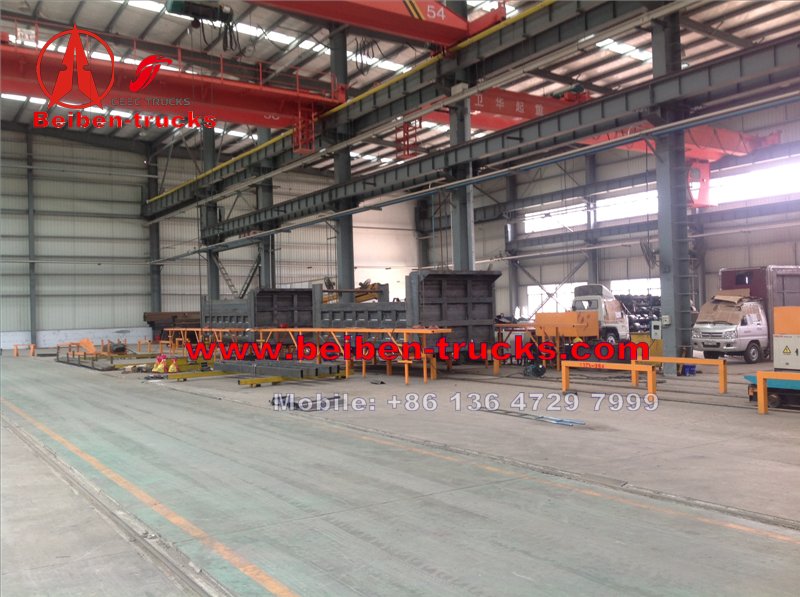

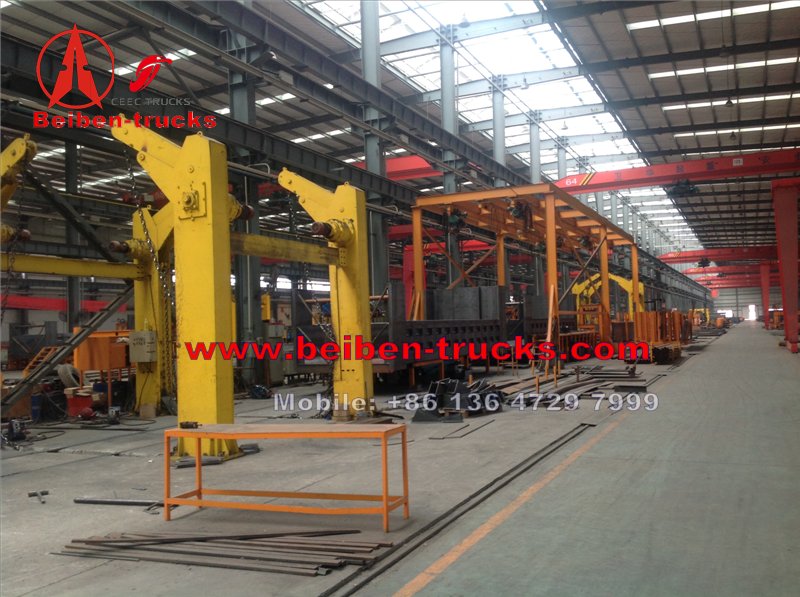

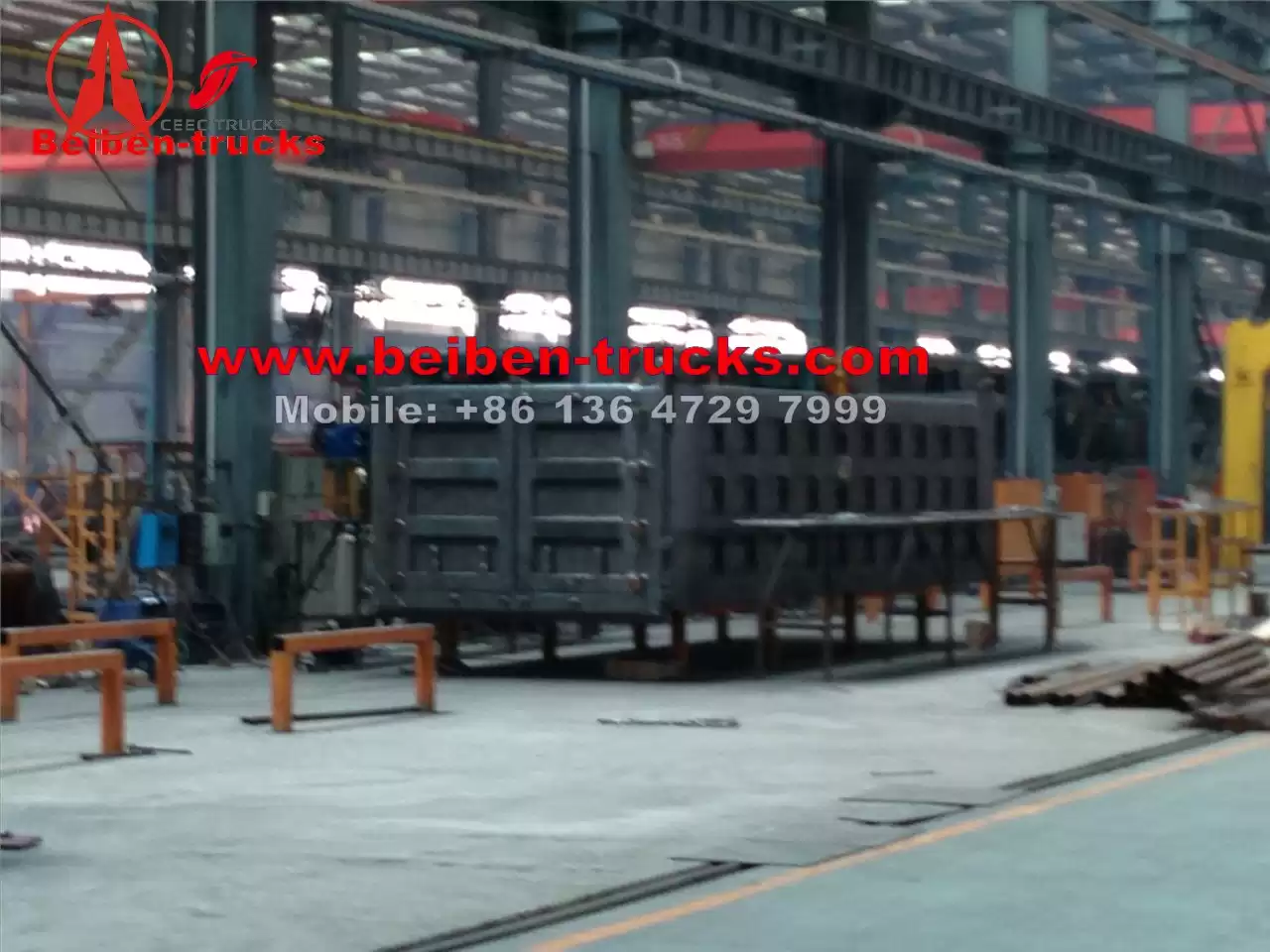

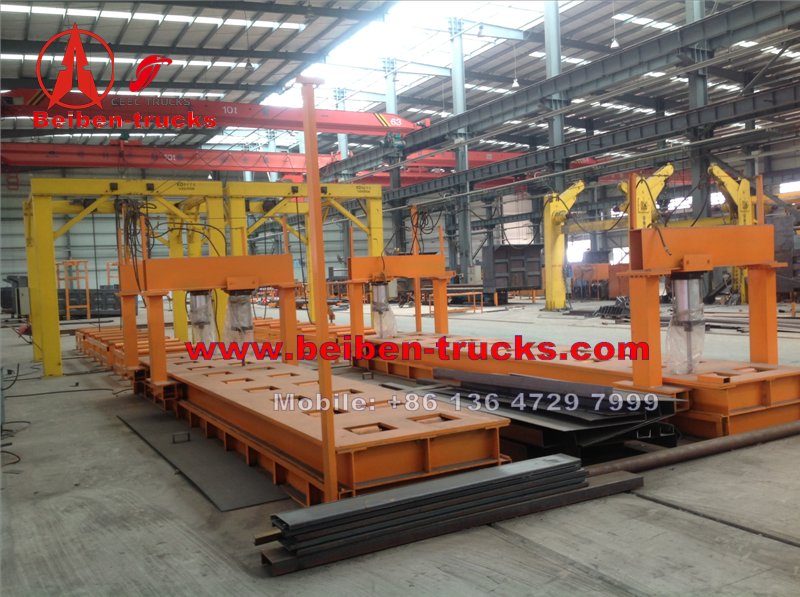

CEEC TRUCKS plant is a heavy automobile
business unit with the approval of State Administration for Industry and
Commerce and State Development Planning Commission and is one of rare
domestic enterprises with the authority of Ministry of Commerce.
Adopting modern enterprise system, the company is a marketing enterprise
of various heavy automobile brands, integrating international and
domestic trade.
Our Services
1. BeibenSpare parts available for 10 years
2. Engineer is available to make service overseas
3. 24hours online consultation service
Packaging & Shipping
1. All the beiben trucks will be made antirust before shipment
2. Different shipping method for different port, Ro-Ro Vessel, Bulk Vessel, Flat-Rack, Container, etc
3. Shipment tracking

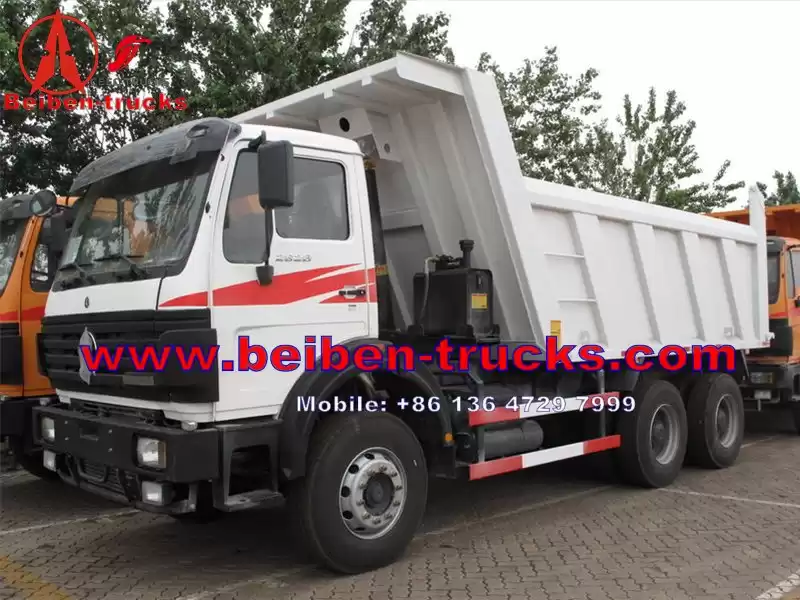

Mercedes Benz Technology WEICHAI engine 340hp & 380hp North Benz Dump Truck
North Benz NG80 WEICHAI Engine 290hp EUROIII 6x4 30-40t/ton Truck Beiben Dump Truck Tipper Truck Cabin:
North Benz short cabin, one sleeper, A/C
Radio player(with USB), Safety belt, Adjustable air type, high back and shock absorption
Driver seat with handle and seatbelts
Dash board with all necessary gauges such as (km meter, rpm, oil pressure, temperature, air pressure,
Fuel level)
Headlight, Sun protection on cabin.
Engine:
Engine brand: Weichai
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
With water cooling, turbo-charging & inter-cooling with exhaust valve brake.
Displacement: 9.726 liters
Max. Output: 290HP
Max torque: 1970NM@1200-1500rpm
Bore/Stroke(mm): 126/130
Clutch:
Clutch: Φ 430 Diaphragm type
Type: Single dry frictional disc, Hydraulic boosting
Gear box:
Model: Fuller 9 speeds(9JS150A), manual, 9-forward and 1 reverse speeds
Steering: ZJ120D
Brake system:
Double-circulate brake system
Axles:
Front axles: Mercedes Benz Technology 7.5 Tons
Rear axles: Benz double Reduction driving axle, Ratio: 1: 5.921(option5.263, 6.733)
Frame: Strengthened frame 300*90*8+6+8
Tyre: 12.00R20
No tyre: 10+1 spare
Spring: 10/13
Fuel tank capacity (L): 300
Weight:
Kerb. Mass: 9200 kg
Towing mass: 25000kg

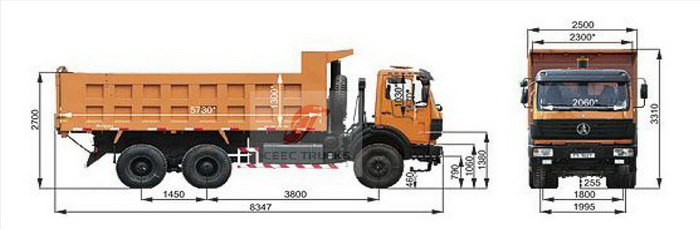

Dimensions:
Wheel base (mm): 3800+1450
Front overhang (mm): 1410
Rear overhang (mm): 1687
Front track (mm): 1995
Rear track (mm): 1808/1808
Max. Length(mm): 8347
Max. Width(mm): 250
Max. Heigh(mm): 3384

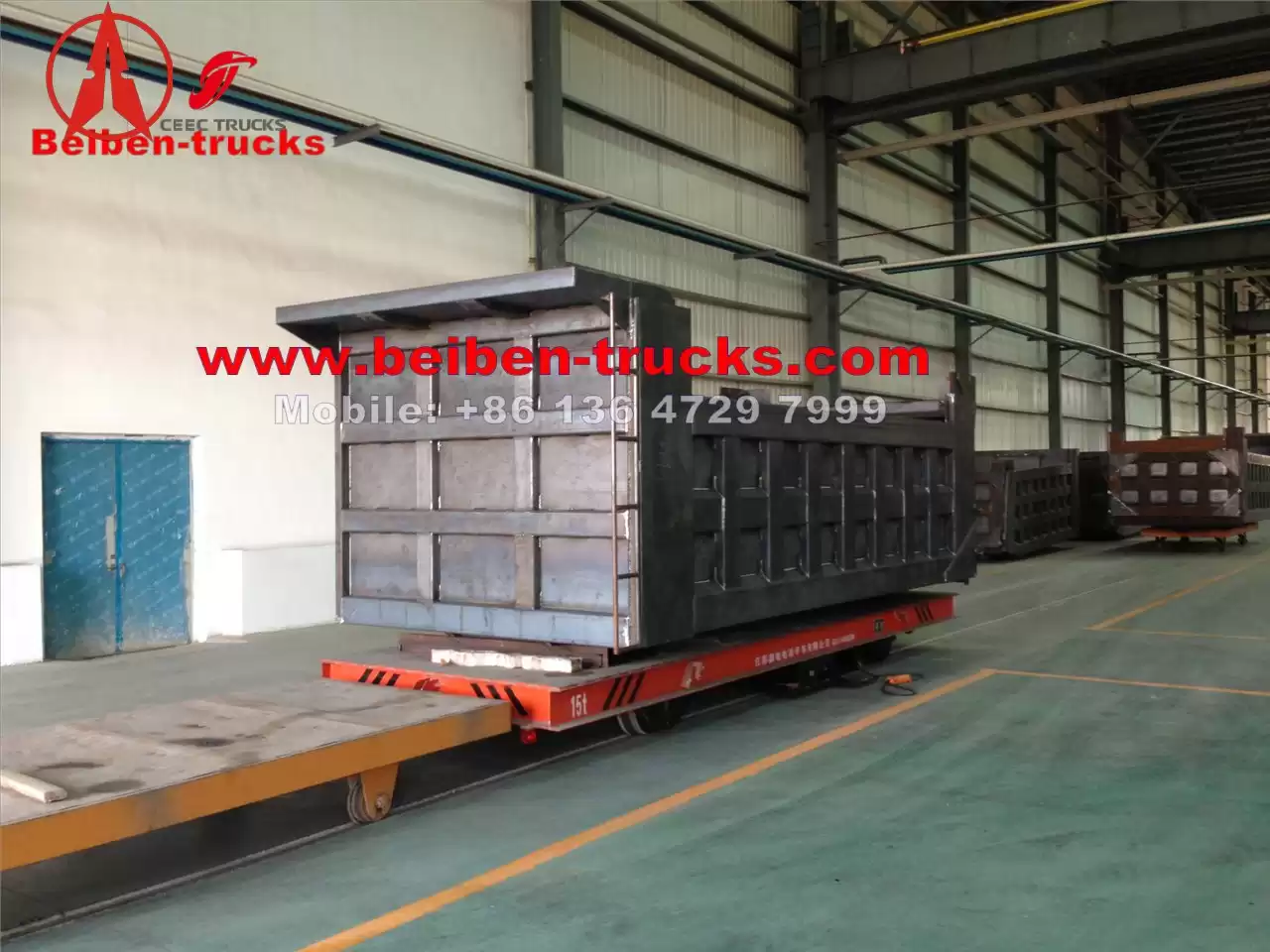

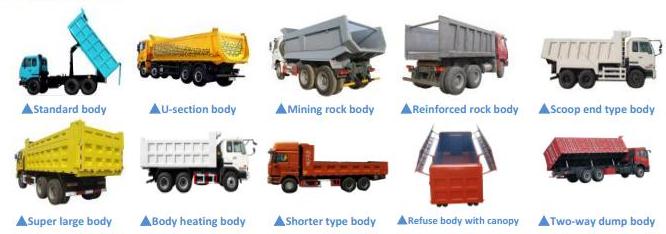

Tipper Body
Dimension 5600*2300*1500
Capacity :19.32CBM
Thickness of body steel(mm): floor 6 front 6 side & back 4
Hydraulic System --- F type lifting
Cylinder: Φ180x4640

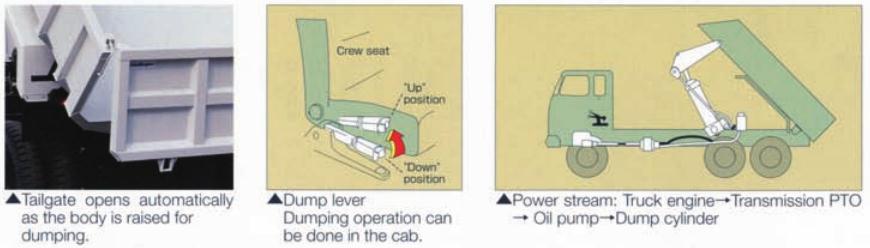

■Working principle

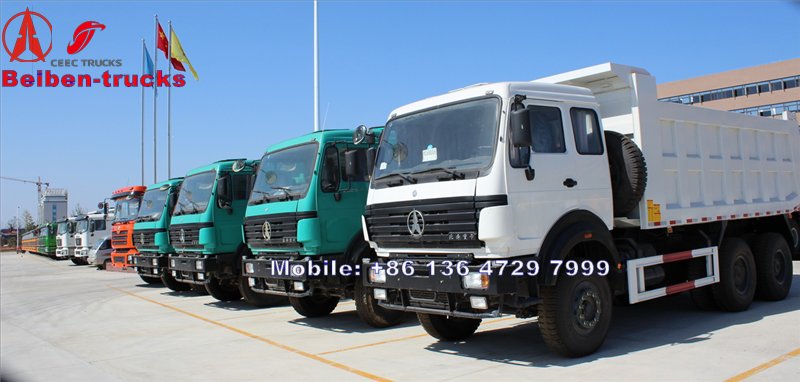

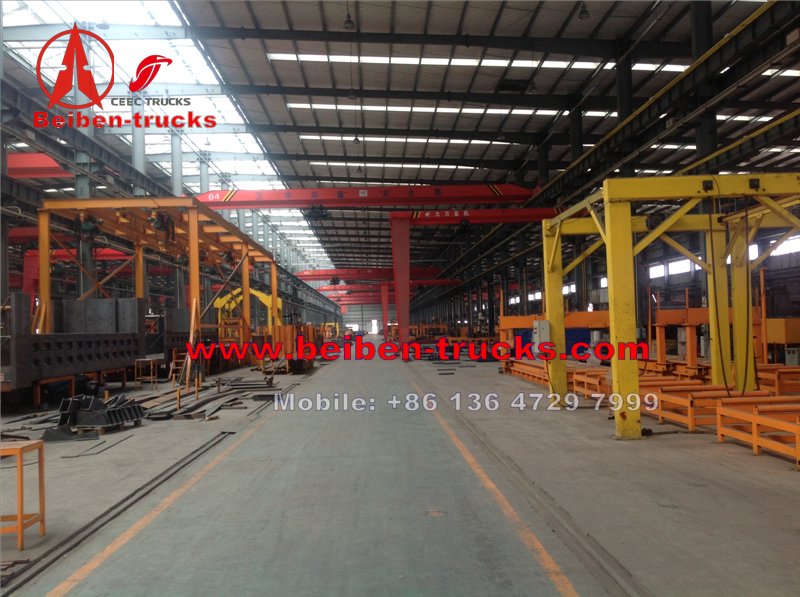

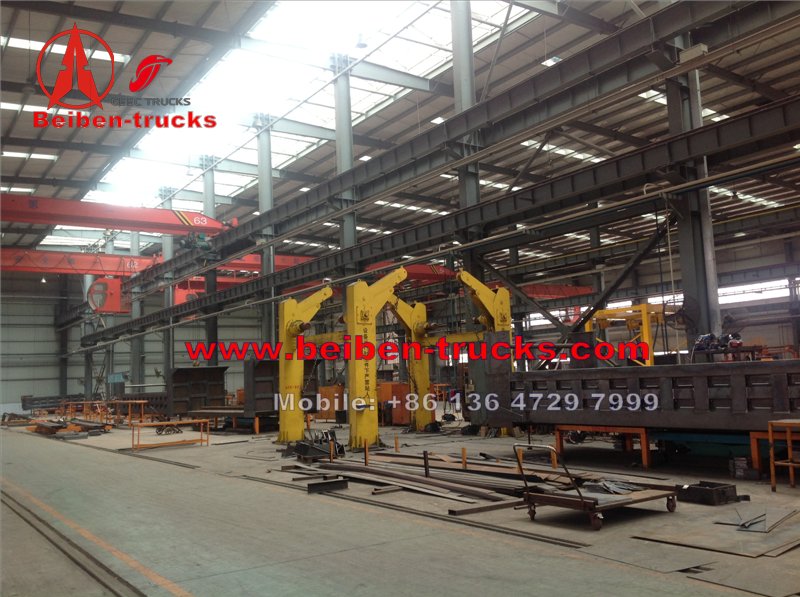

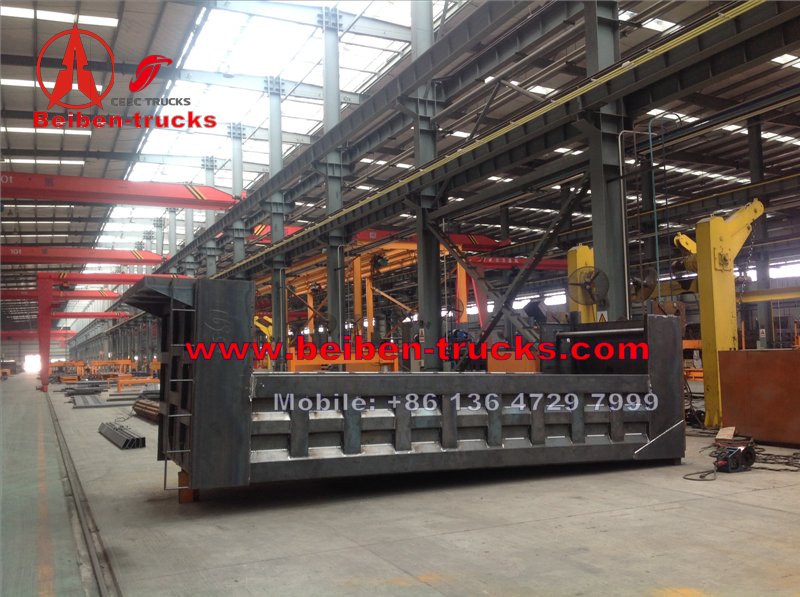

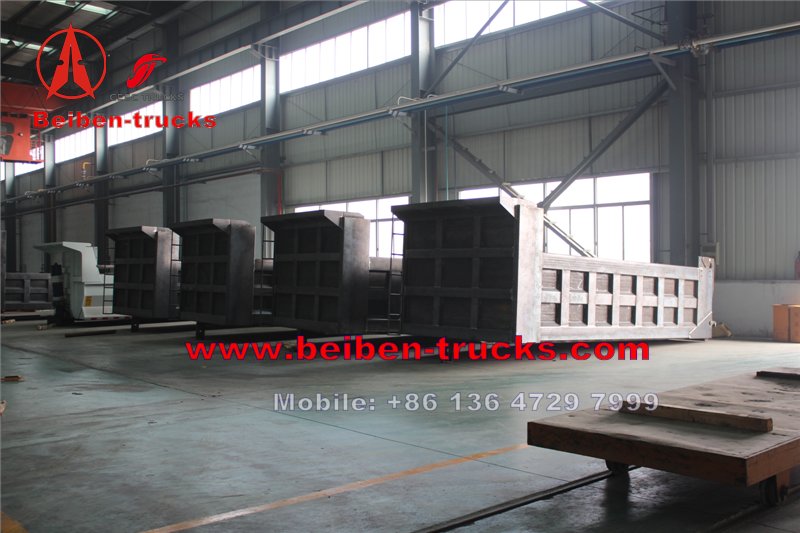

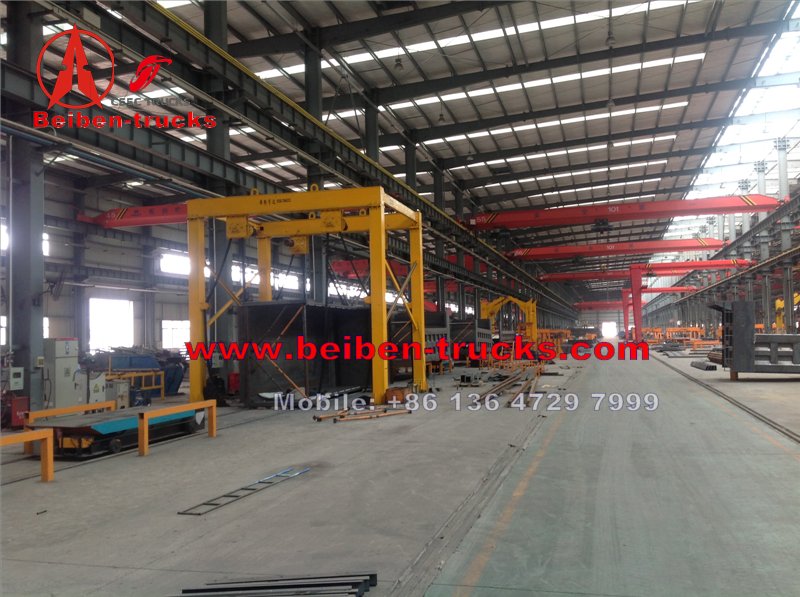

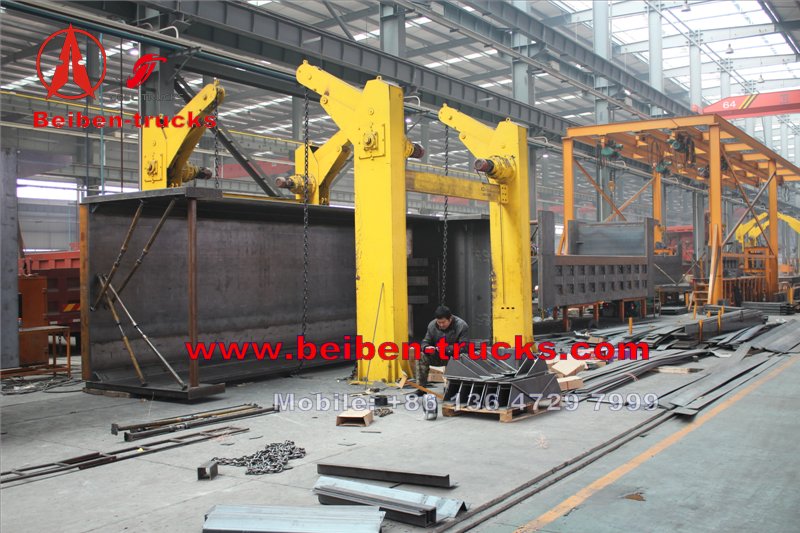

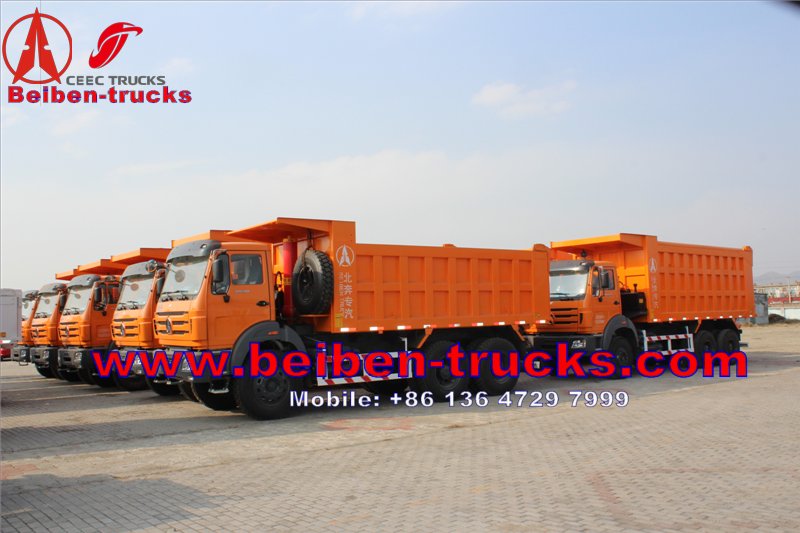

Beiben dump truck in great order from our plant.
The best beiben dump trucks, beiben 6*4 dump truck, beiben 8*4 dump truck manufacturer in china.
