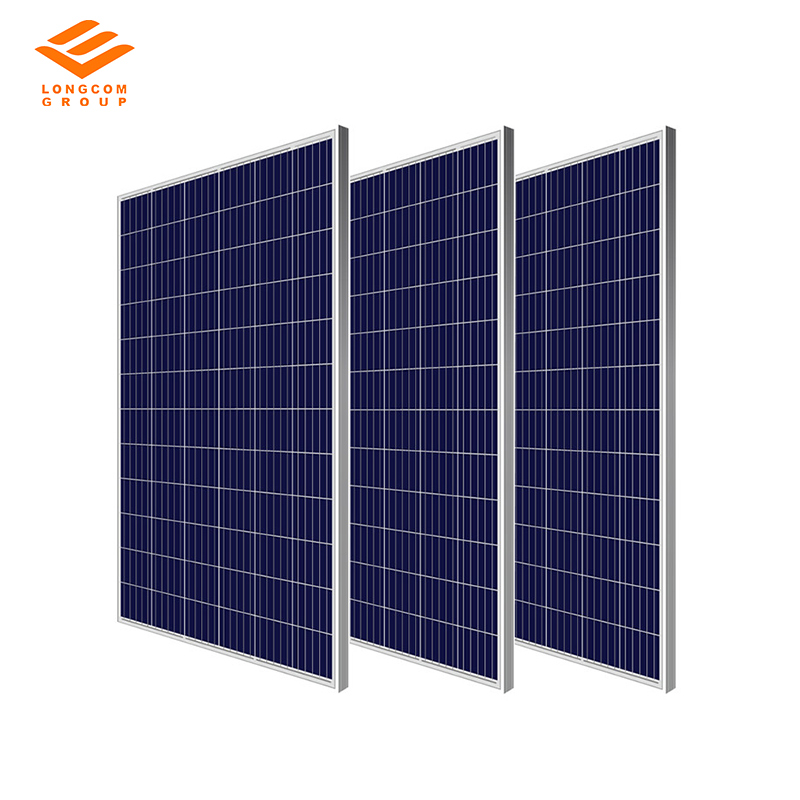

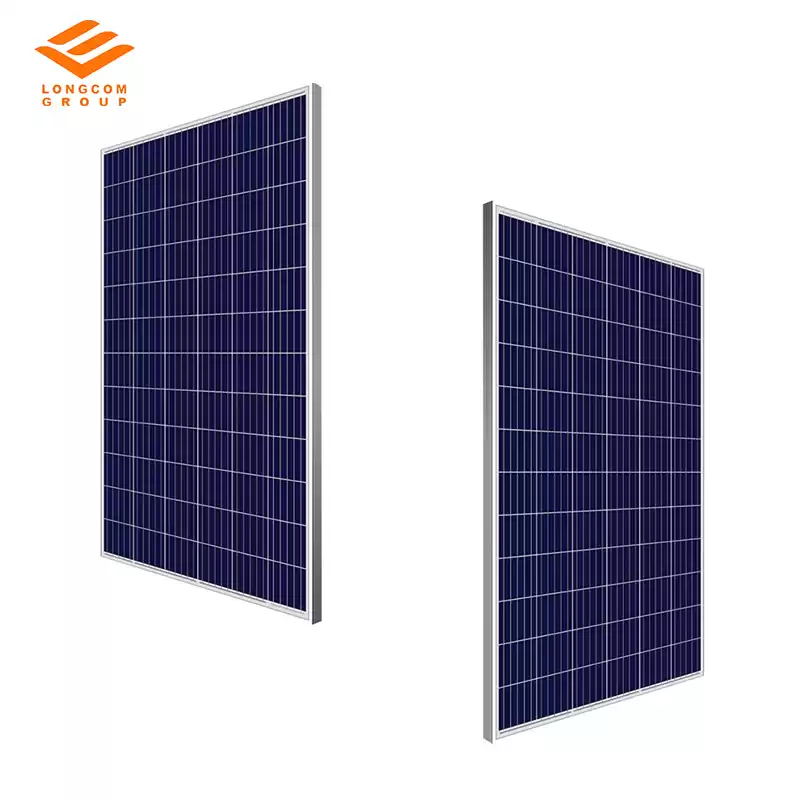

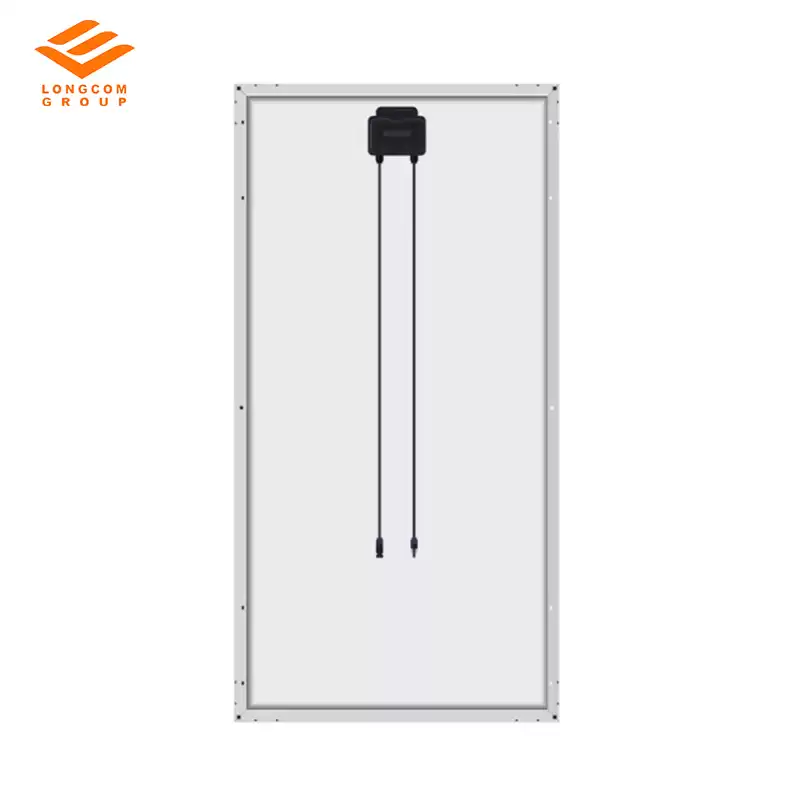

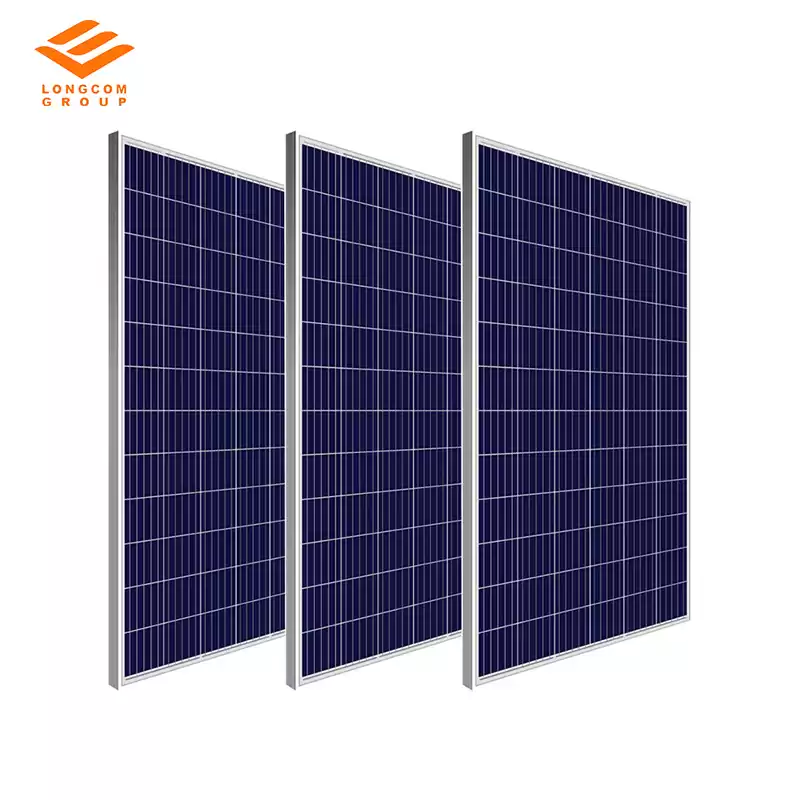

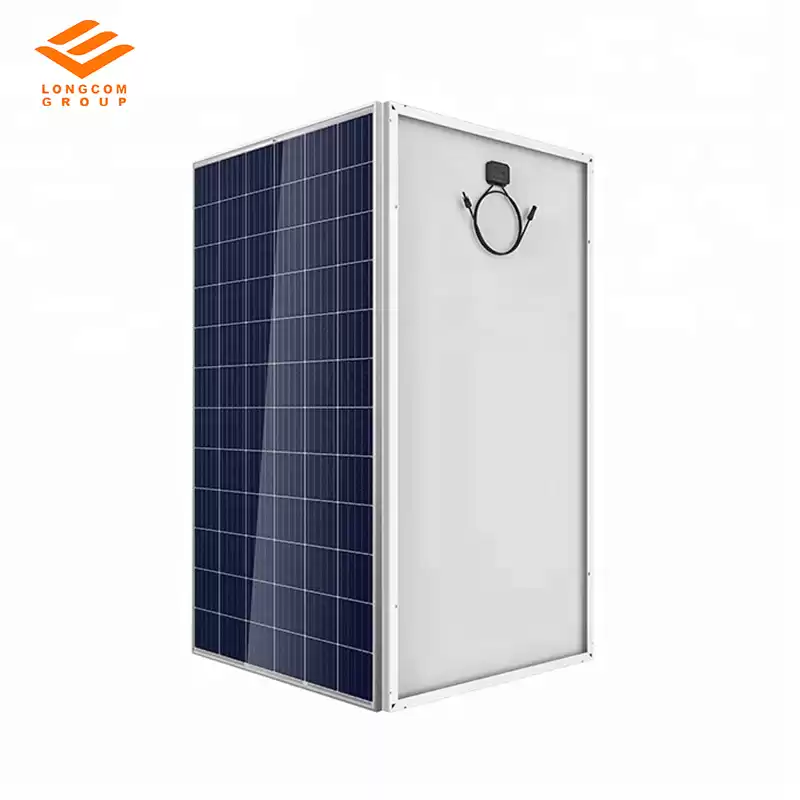

Product Name : 340w 350 watt 72cells polycrystalline solar cells solar panel
Features:
1. There are 72(6*12) pcs high efficient poly-crystalline silicon cells.
2. High power output and highest conversion efficiency of 16.55%
3. Certified to withstand high wind loads (2400 Pa) and snow loads (5400 pa)
4. Anti-reflective and anti-soiling surface reduces power loss from dirt and dust.
5. 100% EL double-inspection ensures modules are defect free.

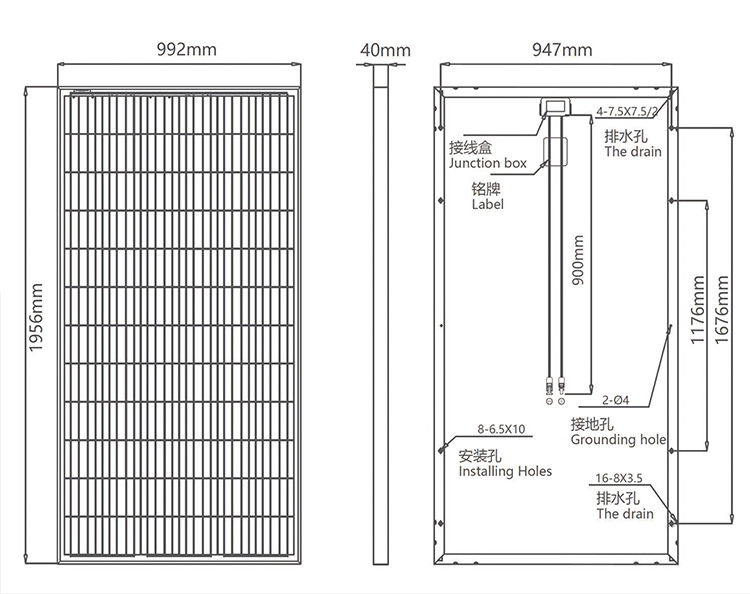

Mechanical Parameters:
|
Cell (mm)
|
poly 156*156
|
|
Weight
|
24 KG
|
|
Glass Thickness
|
4/3.2 mm
|
|
Dimensions (L*W*H)(mm)
|
1956*992*40
|
|
Cable Cross Section Size(mm)
|
4
|
|
Junction Box
|
Waterproof IP67 Rated
|
|
Connector
|
MC4 Compatible
|

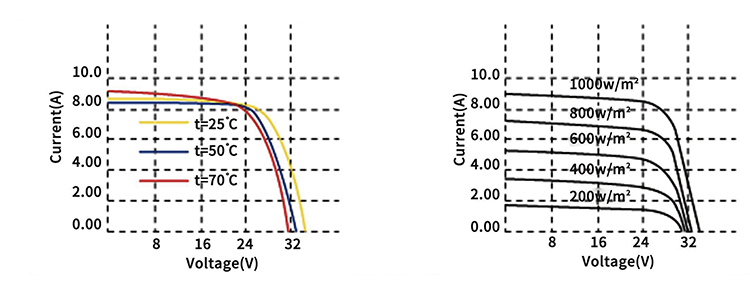

Electrical Parameters:
|
Module
|
SW300P-72
|
SW310P-72
|
SW320P-72
|
SW330P-72
|
SW340P-72
|
|
Rated Maximum Power at STC
|
300
|
310
|
320
|
330
|
340
|
|
Maximum Power Voltage(Vmp/V)
|
36.82
|
37
|
37.4
|
37.8
|
38.2
|
|
Maximum Power Current(Imp/A)
|
8.15
|
8.38
|
8.56
|
8.74
|
8.9
|
|
Open Circuit Voltage(Voc/V)
|
46.08
|
45.9
|
46.4
|
46.9
|
47.5
|
|
Short Circuit Current(Isc/A)
|
8.53
|
8.96
|
9.05
|
9.14
|
9.22
|
|
Module Efficiency(%)
|
15.11
|
15.63
|
15.91
|
16.16
|
16.42
|
|
Power Tolerance
|
0~+3%
|
|
Standard Test Condition(STC)
|
Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5
|
