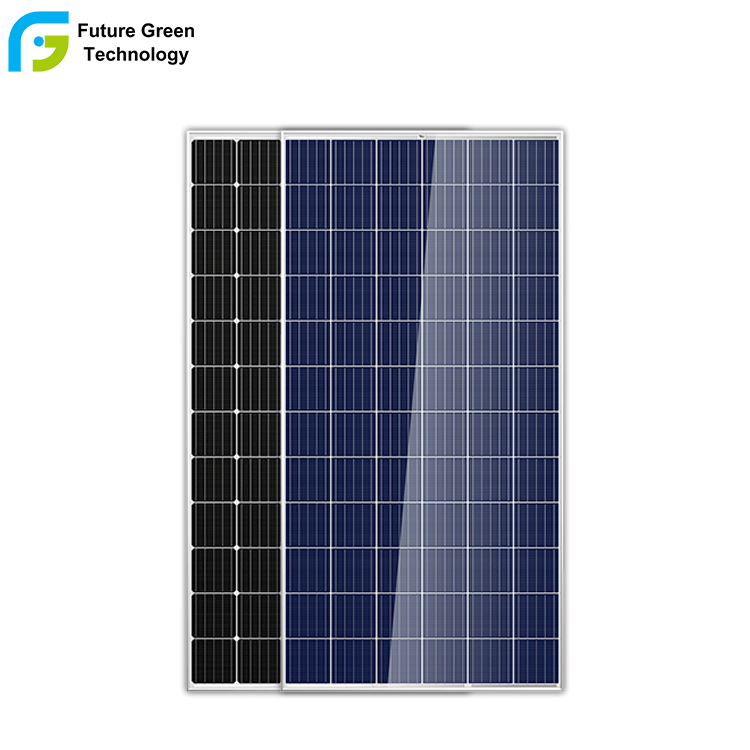

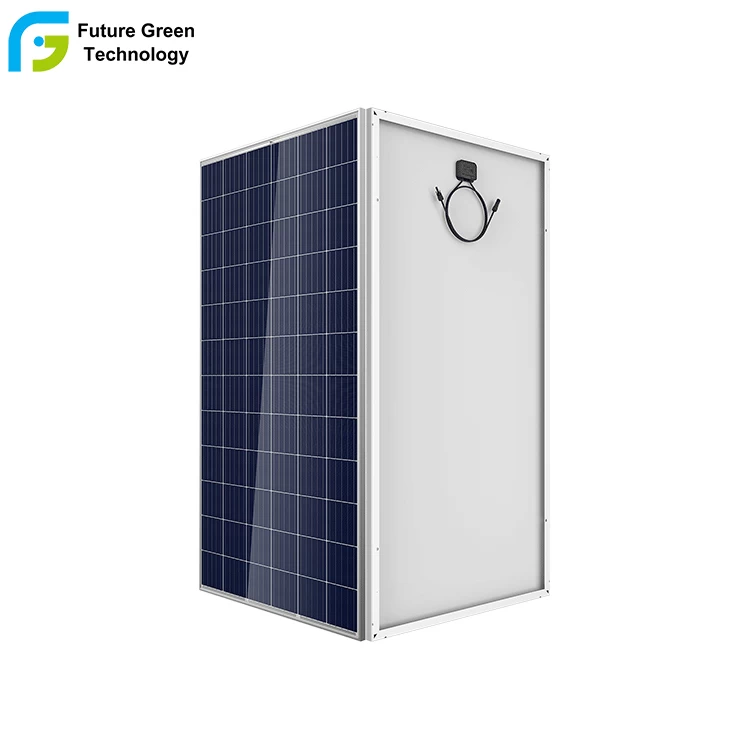

340W High Efficiency Solar Energy Poly PV Solar Panel

72 Cell Polycrystalline

17.4% Maximum Efficiency

25-linear power output warranty


  • SampleNot free

Feature

Feature
Feature
Feature

72 Cell

320-340W

17.4%

0~+5W

Polycrystalline Module

Power output range

Maximum Efficiency

Power output tolerance

Maximize limited space with higher power

FGET high efficieny series is our most versatile product. The panel packs even more power in a 72 cell module by using more efficient monocrystalline cells which have a darker, more uniform, aesthetically pleasing look. The series has the same great reliability, and is compatible with all major balance of system components and most module-level power electronics.



Exceptional warranty

In a recent study of PV modules made by leading manufacturers, FGET Solar modules ranked highest in reliable performance under real-world climate conditions.

FGET is confident and proud of the exceptional quality of our products. We guarantee our module output to be at or above its nameplate wattage, and we back every module with a 10-year product and 25-linear power output warranty.

ELECTRICAL DATA @ FGET FGET-320 PD14 FGET-325 PD14 FGET-330 PD14 FGET-335 PD14 FGET-340 PD14
Peak Power Watts-PMAX (Wp)* 320 325 330 335 340
Power Output Tolerance-PMAX (W) 0/+5 0/+5 0/+5 0/+5 0/+5
Maximum Power Voltage-VMPP (V) 37.1 37.2 37.4 37.6 37.8
Maximum Power Current-IMPP (A) 8.63 8.73 8.83 8.91 8.99
Open Circuit Voltage-VOC (V) 45.5 45.6 45.8 46.0 46.2
Short Circuit Current-ISC (A) 9.15 9.19 9.28 9.35 9.42
Module Efficiency ηm (%) 16.5 16.7 17.0 17.2 17.5
MECHANICAL DATA
Solar Cells Multicrystalline 156.75 × 156.75 mm
Cell Orientation 72 cells (6 x 12)
Module Dimensions 1960 × 992 × 40 mm
Weight 22.5 kg
Glass 3.2 mm, high transparency, AR coated and heat tempered solar glass
Backsheet White
Frame Silver Anodized Aluminium Alloy
J-Box IP 67 or IP 68 rated
Cables Photovoltaic Technology Cable 4.0mm², 1200 mm
Connector EU Countries: 28 MC4 / UTX / TS4, Non-EU Countries: 28 QC4 / TS4

Case Studies

 >>View More>>


CRRC 5kw

Project: CRRC Super Capacitor Test
Capacity: 5kW
Type of Module: FGET Multicrystalline 265Wp
Date of Completion November 2017
Owner:  CRRC Cooperation Ltd.

Installer: FGET

30kw System Replace

Project: CRRC Solar System replace
Capacity: 30kW
Type of Module: FGET Multicrystalline 265Wp

Date of Completion November 2016

Owner:  CRRC Cooperation Ltd.

Installer: FGET

Burkina Faso 5kw

Project: Burkina Faso 5kw

Capacity: 5kW
Type of Module: FGET Multicrystalline 250Wp
Date of Completion: March 2017

Owner:  Yacouba Zongo

Packing & Delivery

 >>View More>>



Carton Packing

20, 10 or 4 pieces in one carton for batteries smaller than 12V24AHone in one carton for larger batteries.

Batteries Layer

Load Lead acid batteries 3-5 layers high with cardboard between each layer, and stretch wrap. Make sure to catch the top of the pallet to help anchor it.

Fumigation Free Tray

As Lead Acid batteries are very heavy, we all use fumigation free tray to transport them.

Our Certification

 >>View More>>




Company Certificate

Commitment to quality, consistency, innovation and service is taking the Company through a steady growth in the competitive market.

ISO Certificate

 SGS ISO9001 quality management system certificate, ISO14001 environment system certificate



MSDS & Transport

Our batteries have UL and CE approvals. MSDS and Report for Safe Transport of Goods.



Our Services:

Samples and OEM, Warranty and After-Sale Service:

Sample can be provided for quality testing

  •  OEM Welcomed
  •  Warranty:5 years for solar panel, 2 years for controller/inverter/battery.
  •  After-Sale Service: 24 Hour-Hot Line for Consultancy and Technical Support
