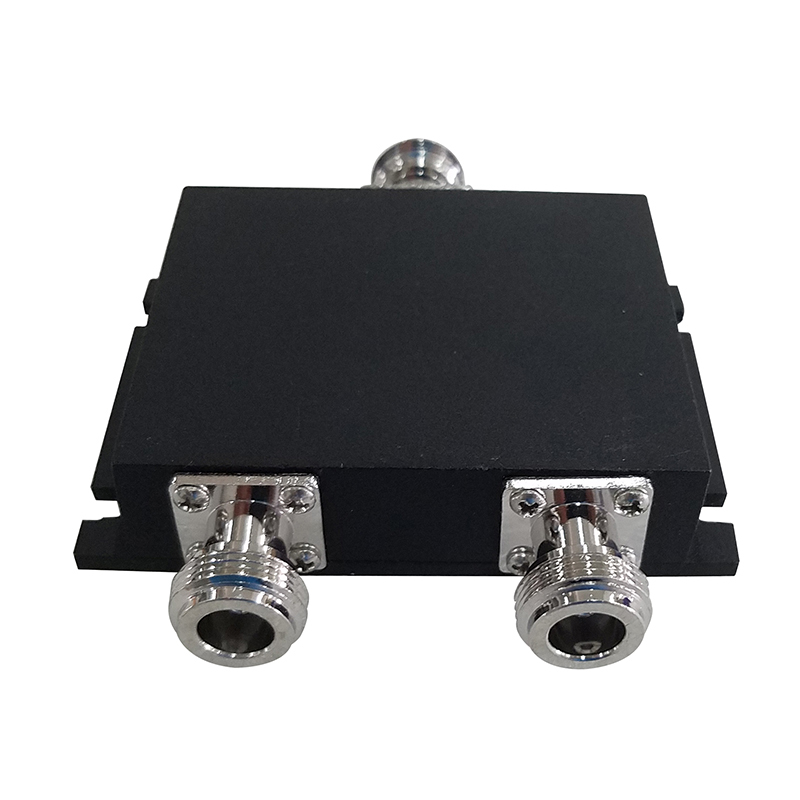

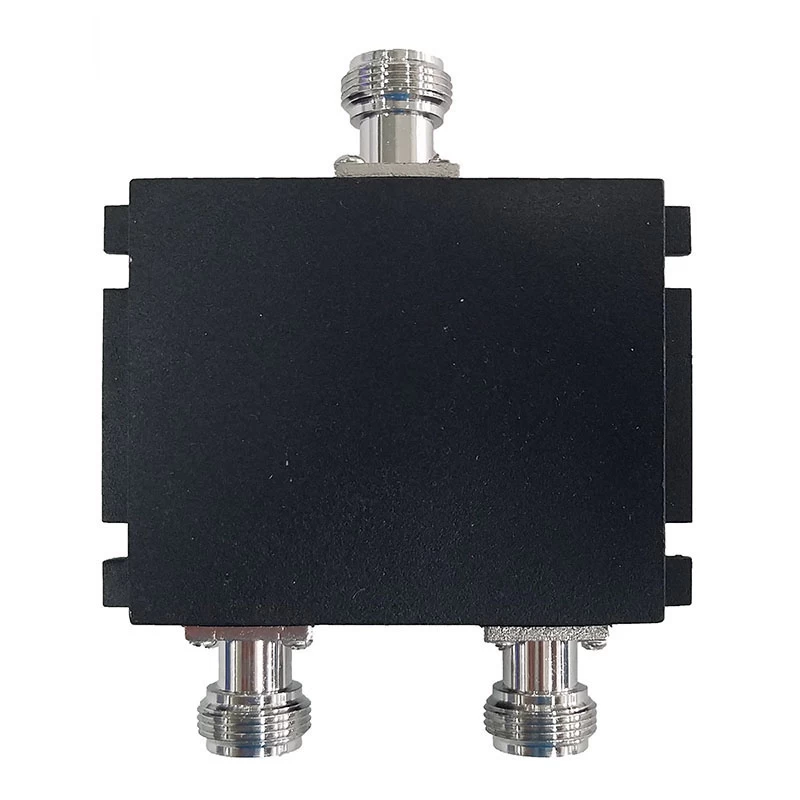

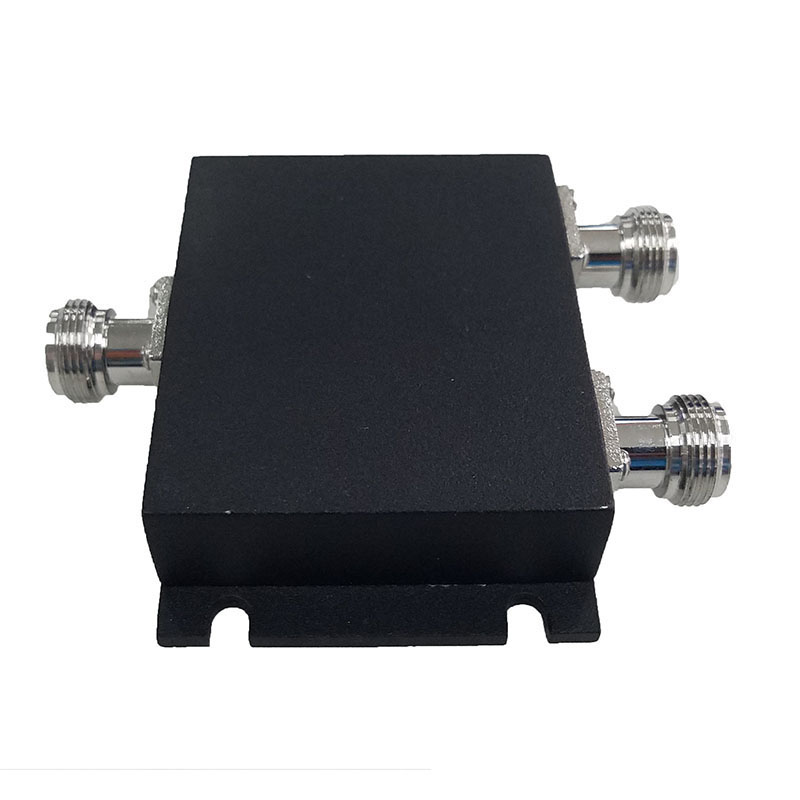

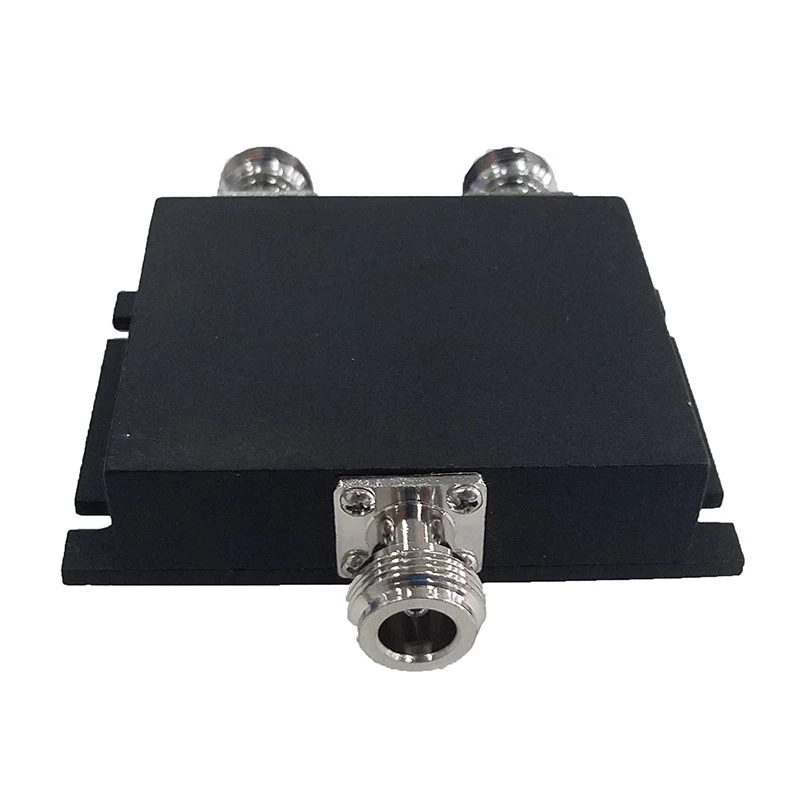

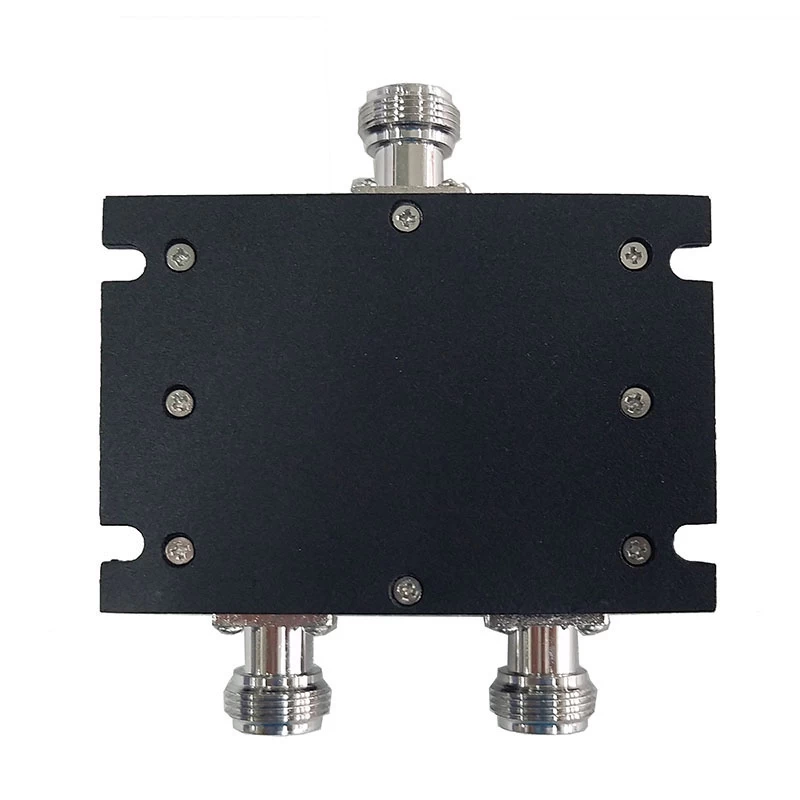

350-520MHz UHF 2Way Wilkinson Power Divider

350-520MHz/400-470MHz 2Way Wilkinson/Microstrip Power Splitter/Divider with N-female with UHF frequency band,it is low insertion loss,low VSWR.



Product Name

2Way Wilkinson/Microstrip Power Splitter/Divider with N-female


350-520MHz/400-470MHz UHF Splitters are used for Walkie Talkie Communication System


Product Features

◆UHF band

◆ Low VSWR

◆ Low Insertion Loss

◆ Indoor Application

Widely used for In-building Solutions and Emergency Communication System.


Technical &Mechanical Specifications

Model No.

MPD-UHF-02-NF

MPD-UHF-03-NF

MPD-UHF-04-NF

Freq(MHz)

350-520MHz 350-520MHz 350-520MHz

Output Port Number

2

3

4

Insertion Loss(dB)

3.5

5.5

6.5

Isolation(dB)

20 min

20 min

20min

VSWR

≤1.25

≤1.25

Total Input Power(W)

50

Impedance

50 ohm

Connector

N-female

Color

Black

Temp(deg)

-30~+70

Application

Indoor

Weight(kg)

0.25

0.3

0.35

OUR SERVICES
1. Professional skills support for 2Way Wilkinson/Microstrip Power Splitter/Divider with N-female
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose

350-520MHz UHF 2Way Wilkinson/Microstrip Power Splitter/Dividerwith N-female350-520MHz UHF 2Way Wilkinson/Microstrip Power Splitter/Dividerwith N-female
