350 Pro Plus 5ply Corrugated Cardboard Production Line

  • Siemens profibus control system with full servo control to satified with the quick respond and synchronization.
  • Whole line equip with the most advanced automatic function on the Glue, Tension, Heating issue.





Intelligent 5Ply Corrugated Cardboard Production Line


350 Pro Plus 5ply Corrugated Cardboard Production Line

Cardboard thickness:  5Ply (2ply, 3ply, 4ply, 5ply can be made)

Width: 1800-2800mm

Speed: 250-350meters /min

DCS Full Servo Control

Intelligent Control System



Features:

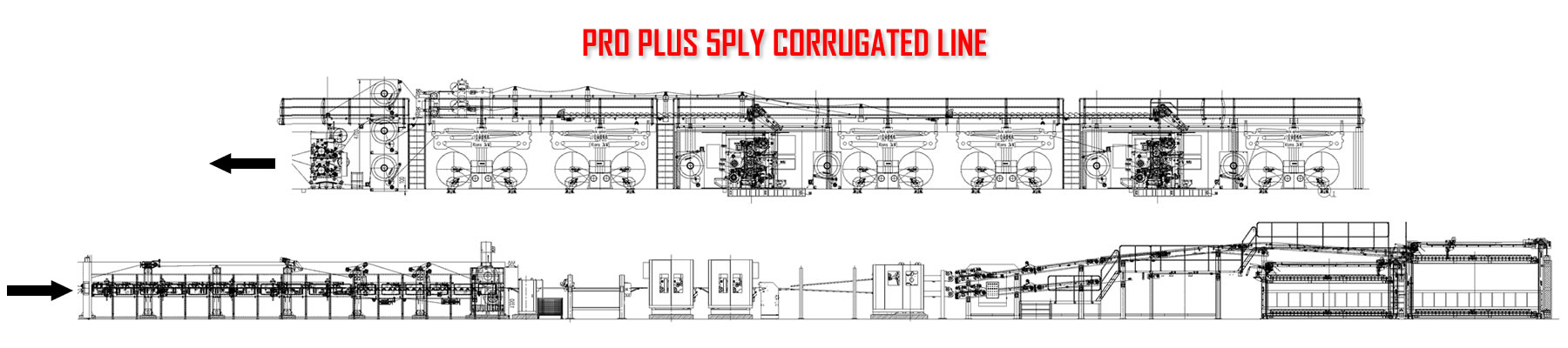

Double wall corrugated cardboard production line design
  • Fully automatic intelligent corrugated cardboard production line, industry 4.0 and advanced packaging technology are combined to achieve intelligent management of the complete production line, from customer's cardboard orders to production and logistics to cardboard packaging delivery intelligent control.

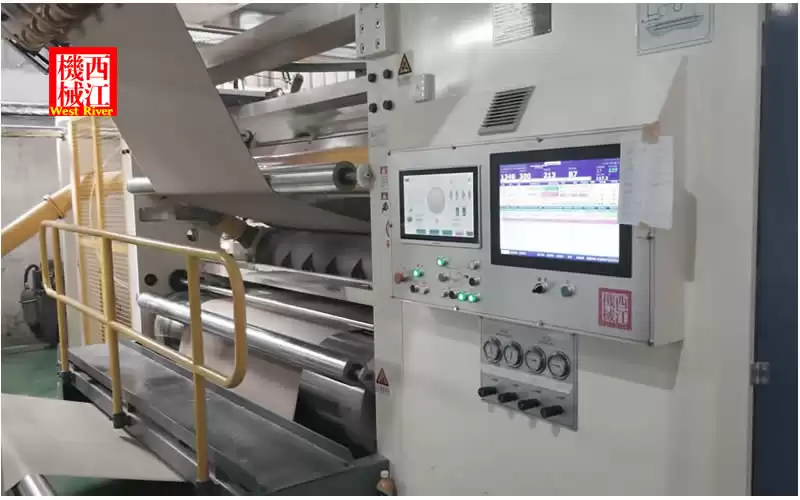

  • Combining with European technology, using the mature structure of West River inner vacuum single facers, combining calendar type fast change single-facer and fast change vertical cassette type single-facer, realizing the production of low GSM and high-strength cardboard.
  • Adopting the latest active control technology, the paper feeding temperature, humidity and tension can be automatically monitored and adjusted, and the physical properties of the base paper can be accurately controlled.
  • Change orders without stopping, intellectualized temperature regulation, digital plant management system and automatic counting output cardboard to pack with auto logistics system to improve production efficiency. Realize the daily 1200 orders with maximum 1,000,000sqm capacity daily production of cardboard sheets making.
  • DCS center control system with complete integration of electrical, electronic and mechanical manufacturing that truly complies with Germany Industrial 4.0.
    Using EtherCat communication technique for logic, simple and high machinery functionality concept for complete line.
    Can be customized according to different customer's situation.



Product Show

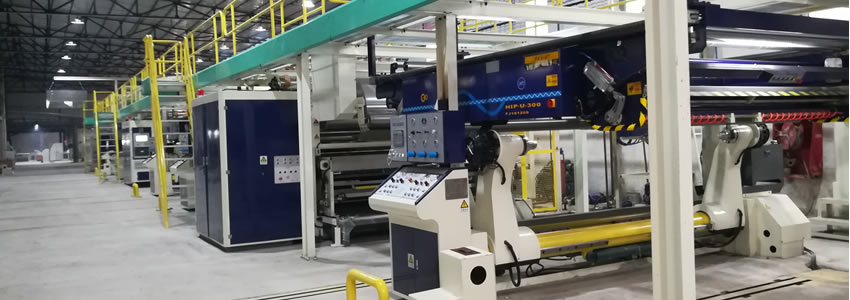

Full line with automatic corrugated function

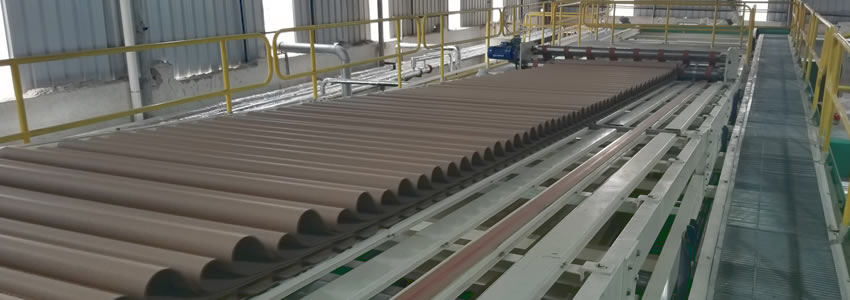

2ply corrugated board on span bridge.

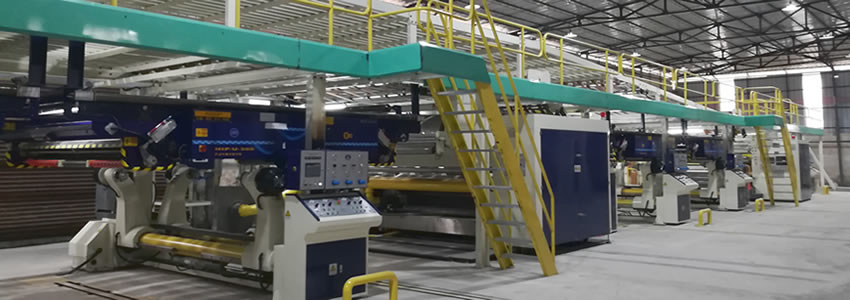

Fully automatic corrugated line with high speed running



FAQs

1Q: Are you the manufacturer?
A: Yes, we are the professional manufacturer combined with WEST RIVER, KL&Japan Shinko, Nantai & Japan Asahi, Jiayi, Guanwei, Jinshun brand machines.

2Q: Where are your factory located in ?
A: Our factories located in Shanghai, Guangzhou, Foshan, Zhaoqing Cities in China

3Q: How to choose the corrugated machine ?
A: According to your market requirement for the cardboard thickness, your target requirement, raw material size, we will give you the best choice of the corrugated machine.

4Q: What can you do for me?
A: Usually the customer need to choose the corrugated machine, flexo printer, die cutter and other converter machine separately by different supplier, but we will give you the whole plan design solution from A to Z, what you need to do is just tell us your target, then you will get the most suitable proposal from us.

5Q: How to control machine quality ?
A: All material are environmental protection,non-pollution, We have professional technicists to supervising to production, Our professional department to examine about every production process

6Q:What can you do if the machine face problem?
A: We provide the machine remote service system, and the warranty period is 1 year. If the broken parts can't repair, we can send the new parts to replace the broken parts for free, but you need to pay the freight. After warranty period, we will charge for the maintanance, and we supply the technical support for the whole life of the equipment.
