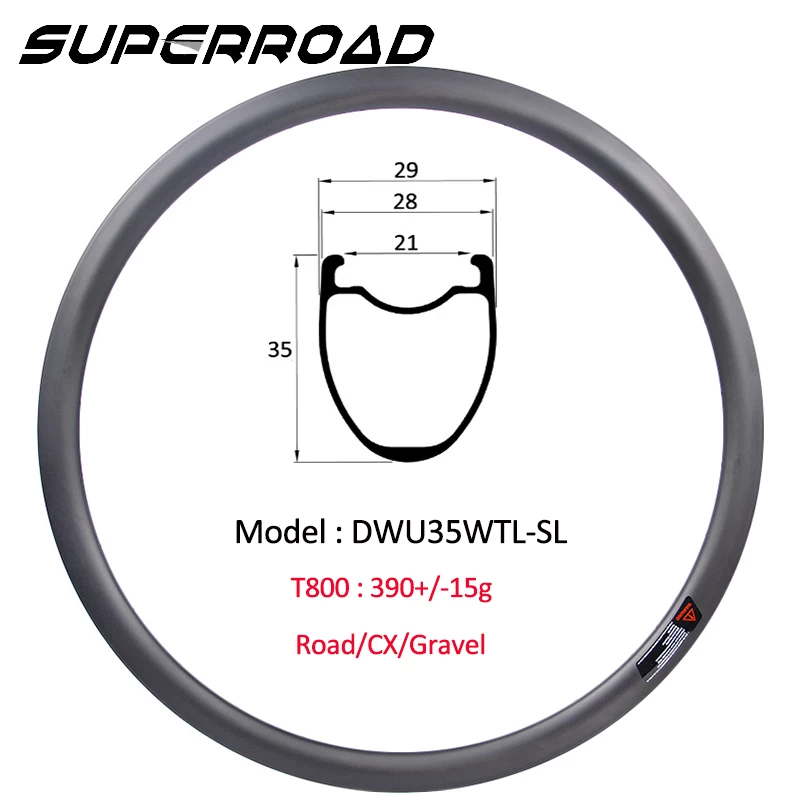

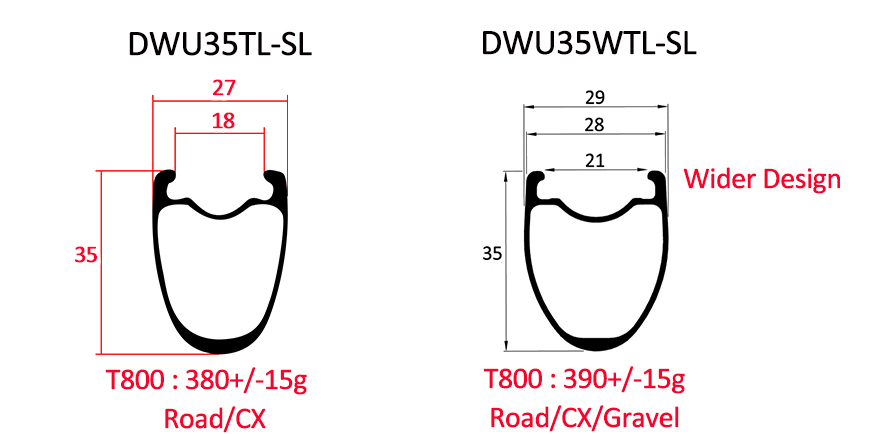

29mm wide 21mm inner width light weight bicycle 35mm carbon rims geometric,as below:
|
Model
|
DWU35TL-SL
|
DWU35WTL-SL
|
|
Material
|
Toray T800
|
Toray T800
|
|
Rim Width (Outer/inner)
|
27/18mm
|
29/21mm
|
|
Rim Depth
|
35mm
|
35mm
|
|
Weave
|
UD/3K/12K/Twill
|
UD/3K/12K/Twill
|
|
Finish
|
Matte/Glossy
|
Matte/Glossy
|
|
Rim Type
|
Tubeless Ready
|
Tubeless Ready
|
|
Use
|
Road/CX
|
Road/CX/Gravel
|
|
Brake System
|
Disc Brake
|
Disc Brake
|
|
ERD
|
573
|
573
|
|
Spoke Holes
|
24/28/32H
|
24/28/32H
|
|
Rim Weight
|
380+/-15g
|
390+/-15g
|
|
Angle
|
+/-5°
|
+/-5°
|
|
Max Spokes Tension
|
130kgf
|
130kgf
|
|
Max Tyre Pressure
|
120 Psi
|
120 Psi
|
|
Max Rider Weight
|
105 Kg
|
105 Kg
|
|
Tyre Size
|
25-42C
|
25-42c
|
|
Decals
|
Customized
|
Customized
|
|
Warranty
|
2 Years
|
2 Years
|
At the 390g per pcs model is our new wider internal width tubeless ready road rims for cyclocross and gravel.35mm is popular depth for road disc brake carbon wheelset,lighter and stiffer.Wider rims for gravel bike,21mm internal width easily to choice the wider tyre for gravel race.
