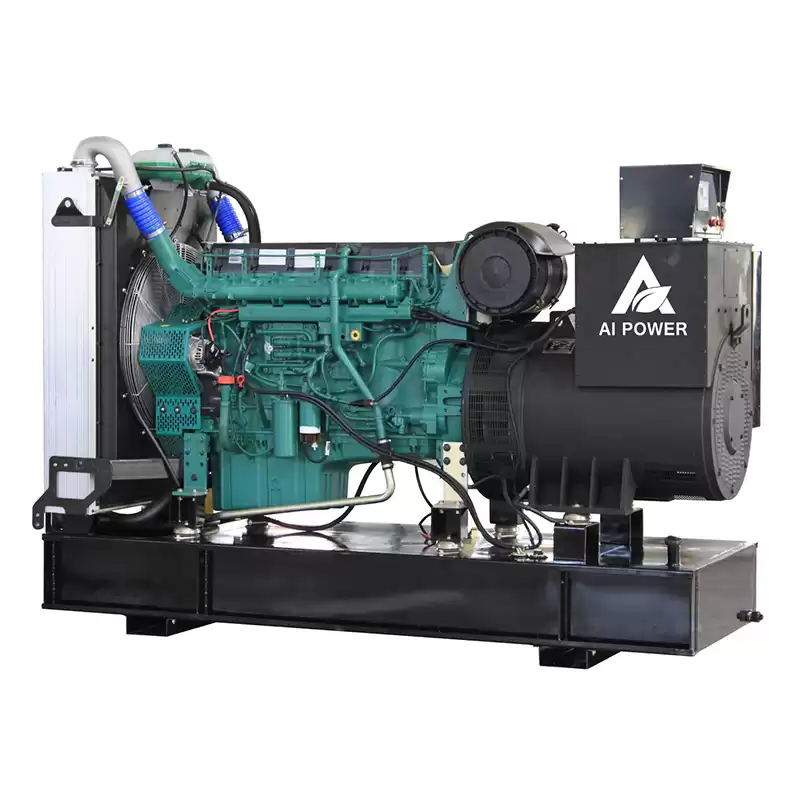

TWD1645GE is a reliable, powerful and compact in-line 6 cylinder diesel engine. It´s designed to power a wide range of stand-by and prime power generator sets.This 16 liter diesel engine utilizes dual-stage turbochargers and heavy-duty steel pistons to provide excellent power

density.It features a proven combustion technology with highpressure unit injectors, resulting in high fuel efficiency and low exhaust emission levels.

The engine also features a compact and low weight design that is well-balanced, providing smooth operation with low noise and vibration. It´s designed for easily accessible service points. A wide range of options is available, including a heavy-duty frame, cooling package and air-filter that will suit a variety of installations.

Original: VOLVO PENTA – VOLVO GROUP

Made in: Sweden

– Model: TAD1345GE-B

– Prime: 388kW

– Stanby: 431kW

– 4 Stroke diesel engine with direct injection

– Turbocharged

(Number of cylinders)

– 6 cylinders
– Displacement: 12,78 liter
– Bore: 131 mm
– Stroke: 158 mm
– Firing order: 1-5-3-6-2-4
– Compression ratio : 18,1:1

(Starter system)

– Electric started
– Alternator:
+ Made by: Bosch
+ Output : 80A
+ Automatic pressure regulator
– Starter motor:
+ Made by : Melco
+ Type: 105P70
+ Power: 7 kW
+ Voltage: 24V

(Shutdown system)

– Electric shutdowned
– 24VDC coil to stop motor

Engine SPECIFICATIONS

Continuous Power	451 kVA
Standby Power	501 kVA
Cylinders	6
Cubic Capacity	12,78 l
Air Intake	Turbocharged
Cooling	Water
Fly Wheel	388 kW
