EC-PVS-PA360W Public Address Mixer Amplifier 360W
Features:

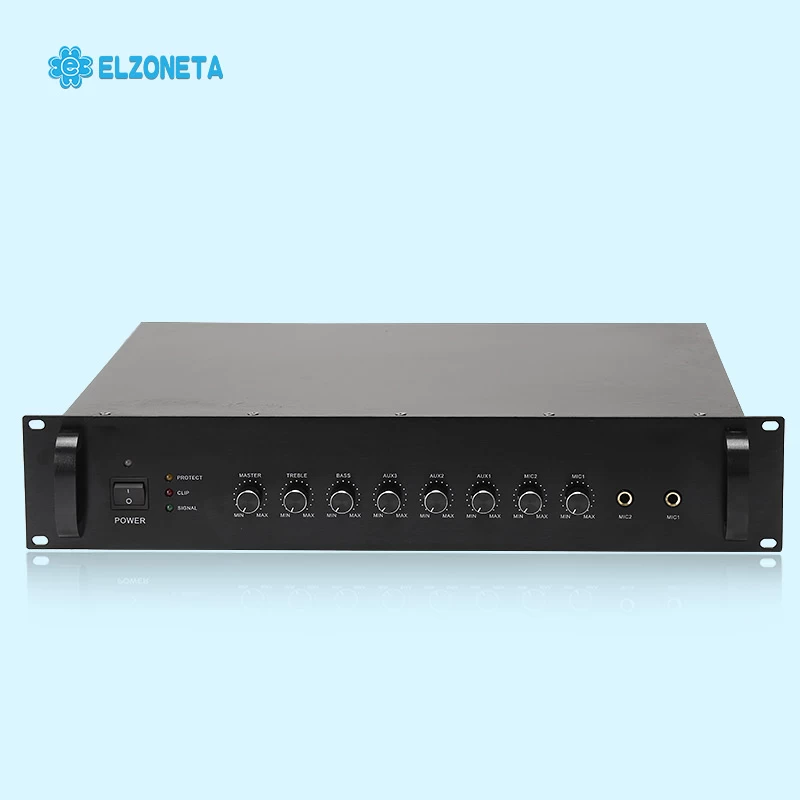

1. Standard device crate design, 2U Aluminium alloy panel; Humanized design, Pretty and practical
2. 3 AUX line input(AUX1,2,3), every single channel can adjust volume independently.
3. 1 line output can connect with power amplifier to expand power.
4. 2-way microphone input (MIC 1,2); The MIC1 has highest priority and function of forced-cut priority. Every single channel can adjust volume independently.
5. Channel MIC2 is attached with Aux In.
6. Knob "TREBLE" and "BASS" adjust volume independently.
7. Adopt Field-Effect Tube pre-amplifier, traditional transformer audion push-pull circuit,transmitted tone pretty and pure.
8. Built-in 2 filter(High Pass filter and Low-Pass Filter), it will clip wave and restore signal to insure integrated line security.
9. Reliable protection and warning function: relevant indicator light will flicker to hint the operator if there are the conditions of overlarge input signal, overweight load and short circuit.
10. Perfect temperature protection measure: Adopting large current high-speed fan, low noise and excellent heat dissipation effect. The temperature protection circuit will start fan automatically when the temperature of device goes up. What's more, the rotating speed of the fan will enhance automatically with rising of device temperature.

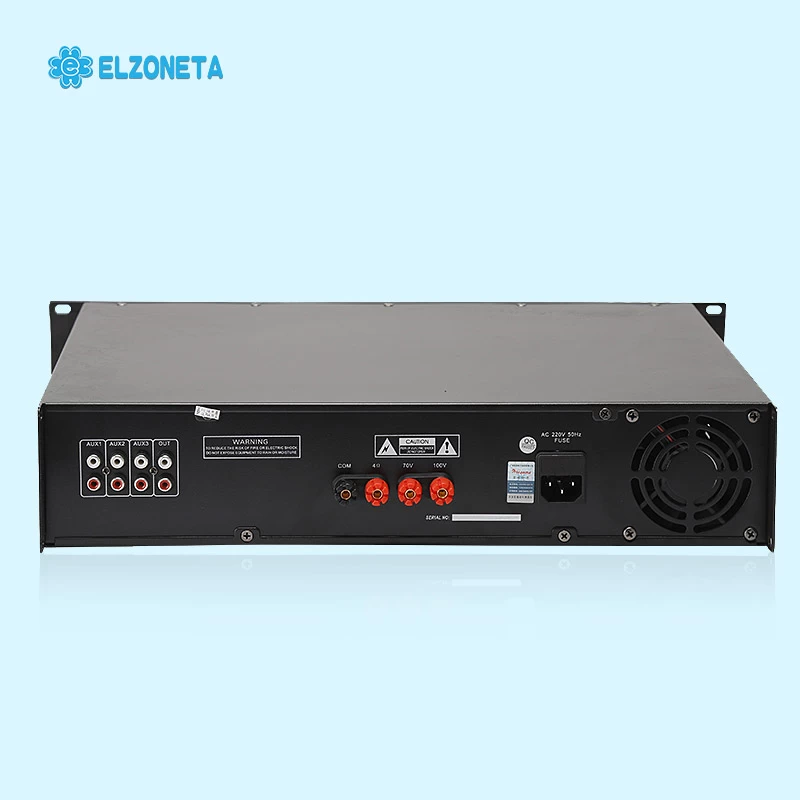

11. 2 kinds of power output mode: Constant voltage ouput 100V,70V; Rated resistane ouput 4~16 Ω
Specifications:
Model: EC-PVS-PA360W
Power Supply: 220V/50Hz
Power: 360W
Output Mode: 4~16Ω balanced output, 70V/100V Constant voltage output
Auxiliary Output: 600Ω 1V(0dB)
Input: MIC1.2:600Ω 20mv, AUX 1,2, 3:15KΩ 150mv imbalance
Frequency Response: 80Hz~15KHz
THD (Total Harmoni Distortion): Less than 1% at 1KHz, 1/3 rated power
SNR (Signal to Noise Ratio): Microphone1 2: 66 dB AUX1 -3: 80dB
Volume Control: Bass: ±10dB at 100Hz Treble: ±10dB at 10KHz
Protection: DC ouput, Overloading, Overheating, short circuit
Silent Sound Function: MIC1 input cover other input, highest priority
Power consumption: 450W
Amplifier size (L*W*H): 484x420x88mm
Net Weight: 18KG
