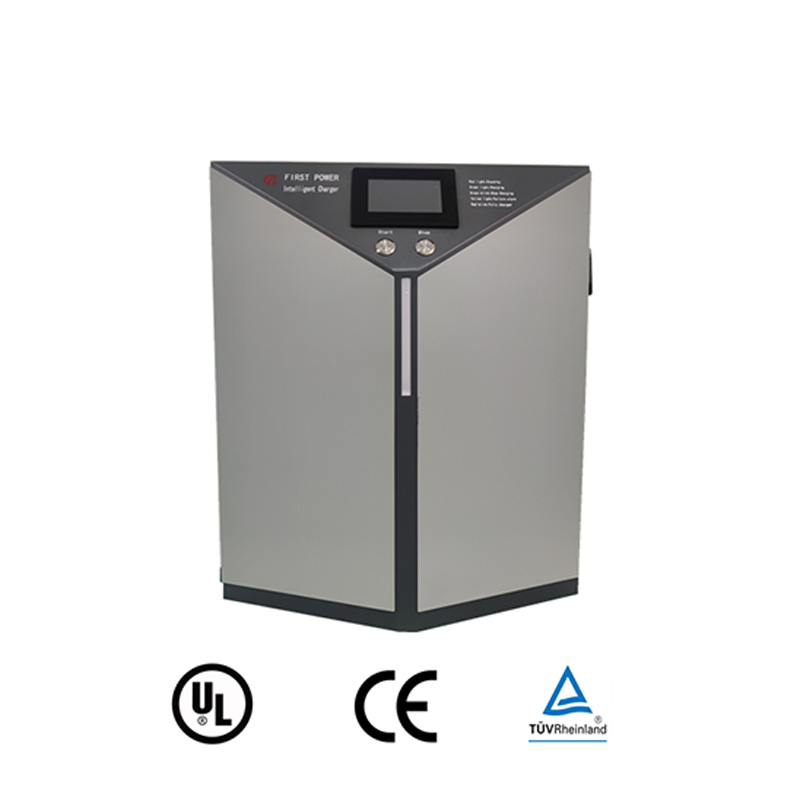

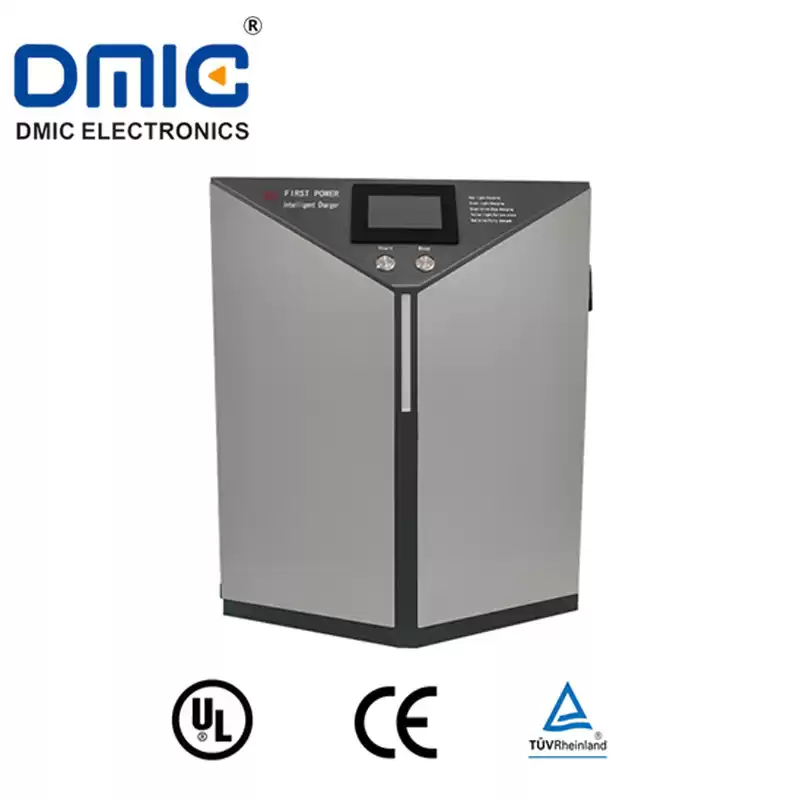

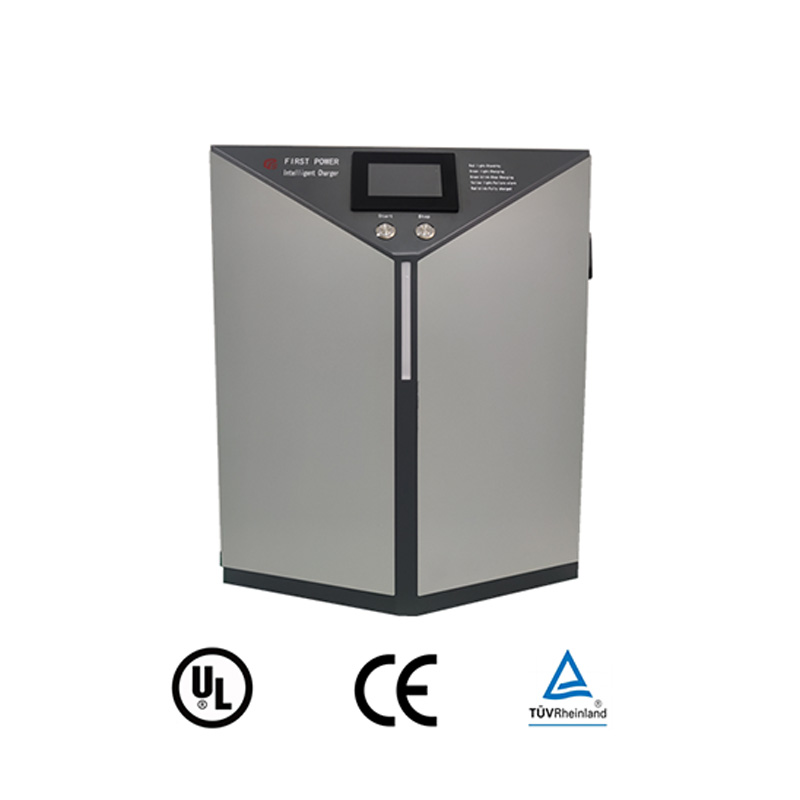

36V 200A Electric Forklifts Intelligent Charger

 36V 200A Heavy-Duty Forklift Charger  Operating flawlessly within a temperature range of -40℃ to 50℃ at full power output and 50℃ to 75℃ with reduced output, these chargers are engineered to thrive in a wide array of environments. Maintaining high levels of insulation, the insulation resistance between the input and output is guaranteed to be ≥10MΩ, while the resistance between the output and the enclosure exceeds 5MΩ.



 36V 200A Heavy-Duty Forklift Charger

1.Product Introduction:

Regular maintenance is essential to maximize the longevity of the FST-Li Series Chargers. With a suggested interval of 30 days, it is recommended to periodically adjust and clean the charger, depending on the environmental conditions. Clearing any debris from the air intake ensures optimum air circulation, enhancing overall cooling efficiency and prolonging the charger's lifespan.

2.Technical Parameters:

Rated Input Voltage Range
3P 480VAC
Rated input frequency
50/60Hz
Input power
≤13KVA
Rated input current(Max)
13A
Maximum conversion efficiency
≥93%
Rated output current 200A
Rated output voltage 36V
Rated output power

7.2KW

Output and input plug specifications.
Follow customer requirement
Communication CAN BUS
Auxiliary power output voltage

12V

Auxiliary power output current 3A
Cooling method Forced air cooling
 Operating temperature

Full power output at -40°C to 50°C

Derating output from 50°C to 75°C

Relative humidity
10%-90% non-condensing
Protection level IP 20
Noise
≤55dB
Altitude
Below 2000m
Weight
30kg (for reference only, please refer to actual measurement)

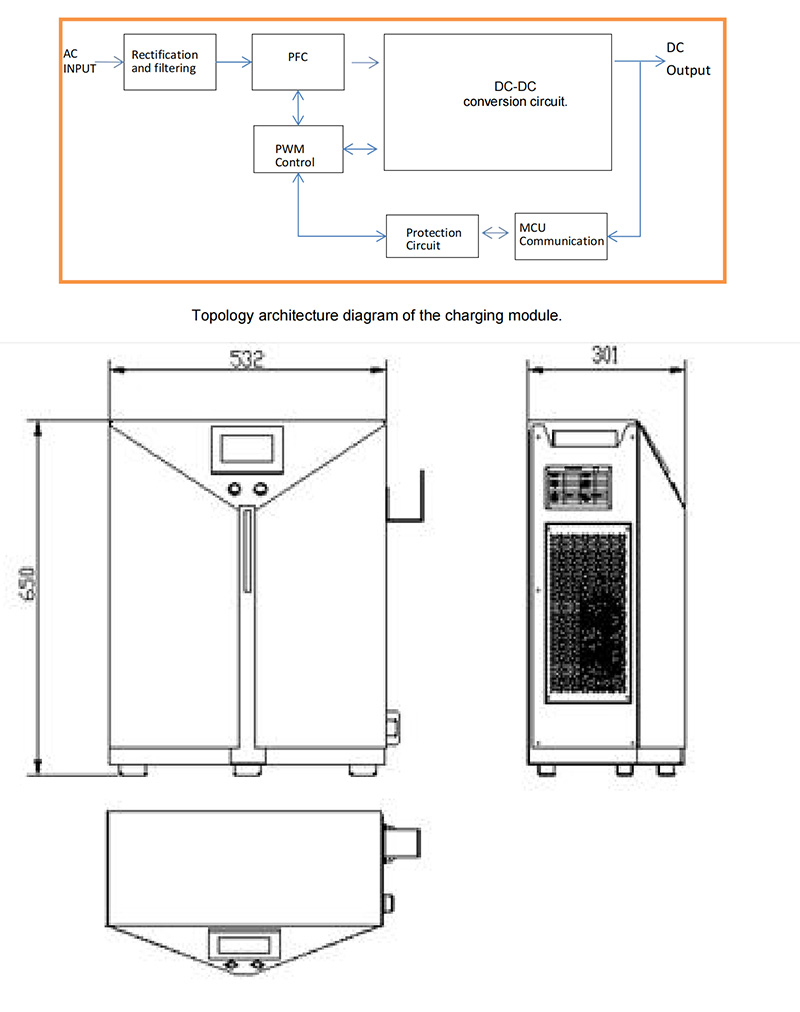

3.Picture Introduction:









4.Our Advantages:

∗At our company, we take pride in our ability to seamlessly integrate the research, development, production, and sales of various high-current connectors and accessories for new energy applications.

∗Offering unparalleled OEM cable harness customization and full-service connector and wire harness solutions, our team delivers a comprehensive approach to meeting your needs.

∗From start to finish, our goal is to provide exceptional quality and service, ensuring the success of your project. Trust us to be your all-in-one partner for cutting-edge new energy interconnectivity.



5.Packages & Shipping:

Our products are packaged to international standards, ensuring that your order arrives in immaculate condition. We are based in Guangdong, China, and dispatch all orders from this location. With our commitment to professional and efficient service, you can trust us to deliver your goods with utmost care and attention to detail.



6.FAQ:

Q: What services does your company offer for high-current connectors and cabling solutions?

A: Our company specializes in providing professional development, design, and integrated cabling solutions for high-current connectors ranging from 5A to 350A. We also offer production and sales of a wide range of high-current connectors, plugs, and UPS/EPS power sockets to support various industries, including automotive, electric vehicles, communication power, medical equipment, power distribution equipment, material handling equipment, solar energy, and new energy.

Our company boasts its own production and R&D base, and has obtained ISO9001 quality system certification. All of our products meet CE, 3C, and other certifications, as well as RoSH and REACH environmental protection requirements. With our commitment to quality and excellence, we offer reliable and efficient solutions to support our clients' businesses.
