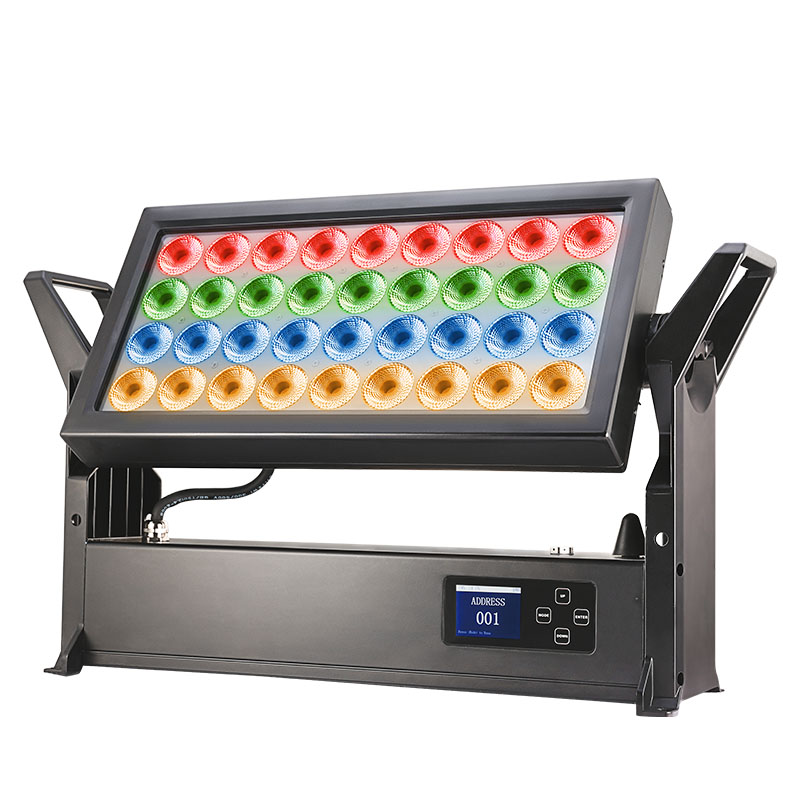

36X15W LED RGBW SGM P5 Flood Light

LED RGBW SGM P5 Flood Light. It uses 36x15W RGBW LEDs and 25° lens(10°,45° optional). Besides including IP65 class of  aluminium housing and following W-DMX&RDM&DMX control protocols.




It has aluminium alloy waterproof structure.Its look design is very good such as fashion,generous and easy installation.The equipment is with 36pcs 15W RGBW high powerful LED as light source.And beam angle 25°(10°,45°optional).Each LED line can be controlled separately.It has reasonable LED layout so that it has homogeneous the bright , purer mixing colour and further light distance.Then it is suitable for projection lighting、stage、theatre etc.

  Optics

. LED qty:36x15W RGBW 4in 1 LED,uniform and delicate color mixing effect

. Lens:43mm high intensity PMMA lens

. Beam angle:25°(10°,45°optional)

. Lifetime:50000H,low power consumption, energy conservation and environmental protection


  Colors

. Uniform and delicate RGBW  mixing color system and rainbow effect

. Manually adjustable White balance

. Each line of LEDs controlled individually can create more colorful chasing effect

. Static color set up

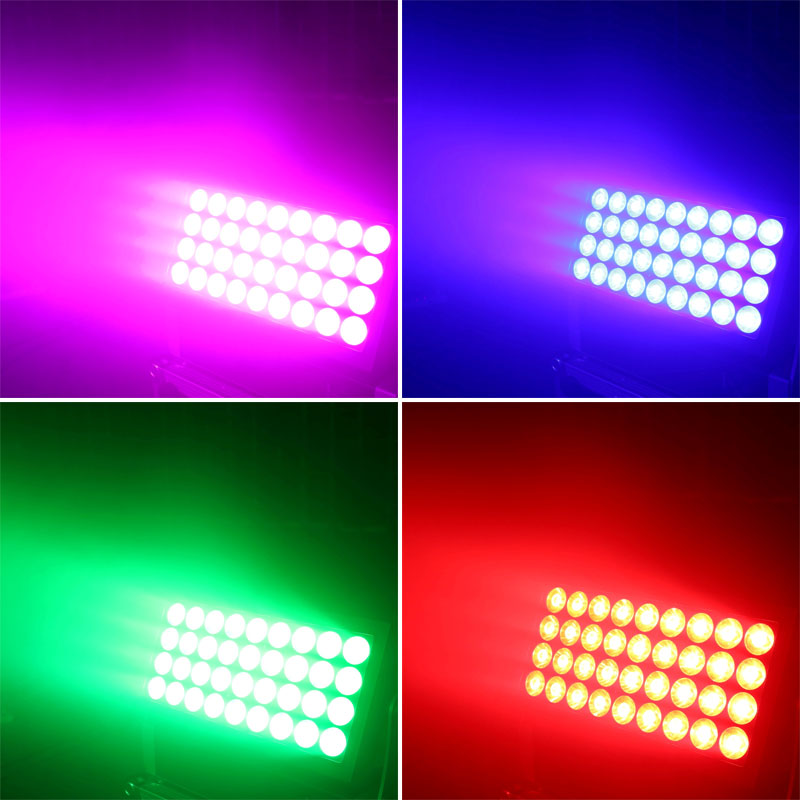

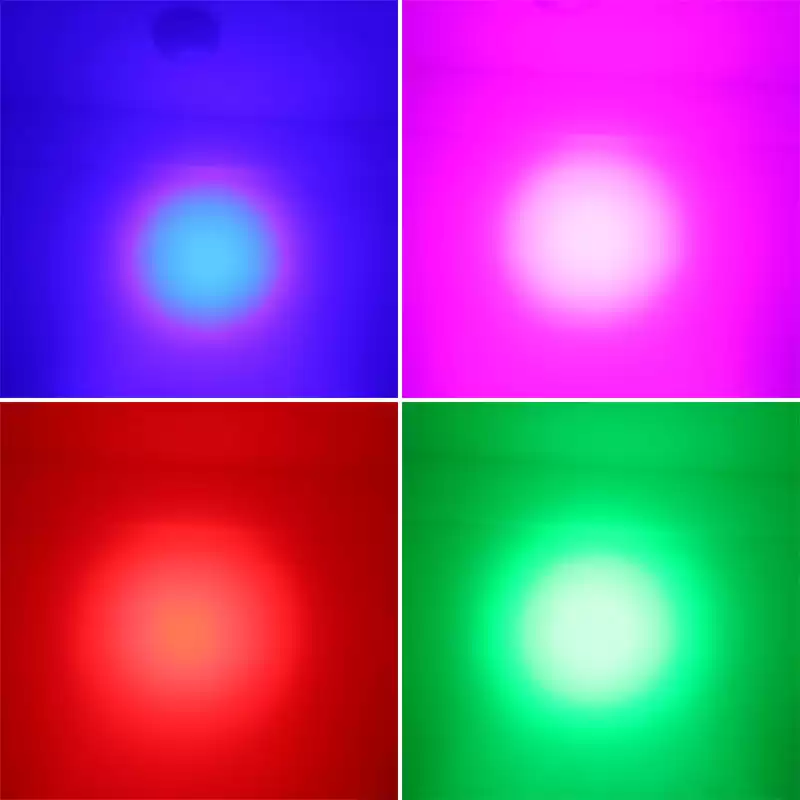

Lighting Effect For 36x15W LED RGBW Flood Light


  Specification

. 7 DMX channel modes:2CH/3CH_1/3CH_2/4CH/13CH/16CH/29CH international standard DMX-512 channel

. 3 control modes::DMX512、W-DMX、Master-Salve

. 2.4G wireless DMX

. Beam angle:25°(10°,45°optional)

. DMX function:Dimmer、Strobe、RGBW、Macro color、color jumping change、color gradual change 、Rainsbows、Auto-program selection、Auto speed、dimmer curve selection、function setting

. Stand-alone mode:color jumping change、color gradual change、Auto-program、slave、Macro color、static color setting、Rainbows、Auto-program selection

. Strobe effect:0-20HZ strobe、Pulse strobe、Ramp up strobe、Ramp down strobe、Random strobe、Strobe Break Effekt, 5s…..1s、Strobe0-20Hz。

. Dimmer:0-100% 16bit dimming which can control brightness change and closing of 4colors at the same time

. LEDs of each line can be controlled in 4colors

. Dimming way:LED mode and Halogen lamp mode


  Display

. 2.4inches TFT colorful screen

. High anti-interference four touch buttons

. Settable button lock to prevent imoperation

. Display screen can be reversed 180° and fit for different places installation


  Software

. Software upgrade:quick software upgrade via DMX cable

. Display the use time of the light, so that customers can know the use details of the light in time

. LED refresh rate:3000Hz

. 4kinds of dimming curve:linear dimmer、Sqaure dimmer、I. Sqaure dimmer、S-Curve dimmer


  Other functions

. Setting and addressing:RDM

. LEDs temperature detection system to protect the LEDs

. Fan cooling(the fan change the speed with the temperature changes)

. Fan running mode:Auto mode and high speed mode

. It is a quick and convenient method to change beam angle by adding filter plate on the surface of light with the magnet-pull way


  Power/Signal connection

. Power connection:waterproof Seetronic powerCON IN (SAC3MPX) / OUT (SAC3FPX)

. DMX input:Waterproof DMX XLR  3-pin Seetronic J3F2C-W

. DMX output:Waterproof DMX XLR  3-pin Seetronic K3F2C-W


  Power

. AC100-240V 50/60HZ

. Power consumption:460W


  Protection class

. Housing:Die-cast aluminium

. IP class:IP65


  Operation environment

. operation temperature:-20°C~+40°C


  Size/weight

. Packaging size:660*280*455mm

. Net weight:15KG

. Gross weight:17.2KG


  Certification:

. CE,ROHS
