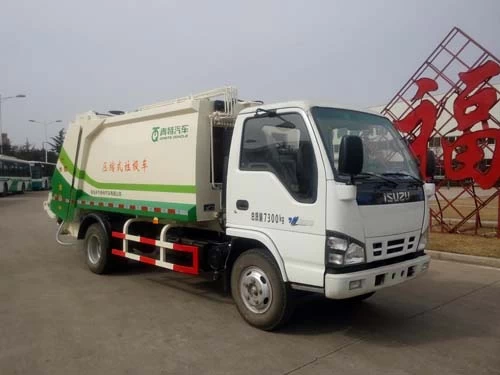

ISUZU 600P 4x2 Compactor Garbage Truck
Compartment volume:3 cubic 4cubic 5cubic
ISUZU 4-cylinder diesel engine 88kw / 120hp
Brake system:Oil braking
Single row 600P cabin with A/C
Equipped with hermetic dustbin, hydraulic system and operating system.
Automatic compress and uninstall, sewage can be collected by the dump tank..
Pressure is large, leakproofness is good, operation is convenient and security is dependable.
Optional:
4x2 ISUZU 100P 98HP
4x2 ISUZU 700P 190HP
Different types of garbage truck:
1.dump garbage truck
2.hanging dustbin garbage truck
3.roll arm garbage container truck
4.swing arm garbage container truck
5.compactor garbage truck
6.movable refuse compactor with truck
Products Technical Specification
|
Chassis Brand
|
ISUZU 600P
|
Chassis Model
|
QL1070A1HAY
|
Fuel type
|
Diesel
|
Emission Standard
|
Euro 4
|
Cabin
|
600P Single row,with A/C,Radio,Cassette
|
Whole Vehicle
main dimensions (mm)
|
Overall dimensions (L×W×H)
|
6625*2000*2550
|
Wheel base
|
3815
|
Front overhang
|
1015
|
Rear overhang
|
1525
|
Min. ground clearance
|
300
|
Weight data (kg)
|
G.V.W
|
7300
|
Curb weight (chassis)
|
5180
|
Max payload
|
3000-5000
|
Whole vehicle
main performance
|
Max. speed (km/h)
|
105
|
Max. slope of climb (%)
|
32
|
Engine
|
Model
|
4KH1-TCG40
|
Maximum power
|
88kw / 120hp
|
Number of cylinders
|
4
|
Displacement (L)
|
2.999
|
Engine Manufacturer
|
Qingling (Chongqing) Engine Co., Ltd.
|
Gear box
|
Model
|
MSB
|
Number of gears
|
5 forward gears& 1 reverse
|
Axle
|
Front Load capacity (ton)
|
2.5
|
Rear Load capacity (ton)
|
4.8
|
Suspension
|
Front
|
8- Leaf spring
|
Rear
|
6+5 leaf spring
|
Brake system
|
Service brake
|
oil braking
|
Electric device
|
Rated voltage
|
24V
|
Tyres & Quantity
|
7.00-16 & 6+1
|
Up-parts Description
|
Standard Configuration
|
Equipped with hermetic dustbin, hydraulic system and operating system.
Automatic compress and uninstall, sewage can be collected by the dump tank..
Pressure is large, leakproofness is good, operation is convenient and security is dependable.
|
Compartment volume (M3)
|
4 to 5
|
Cycle time (S)
|
≤28
|
Excretion of garbage time (S)
|
≤30
|
Maximum crushing compression force (T)
|
24
|
Optional Configuration
|
Radial tire
|
