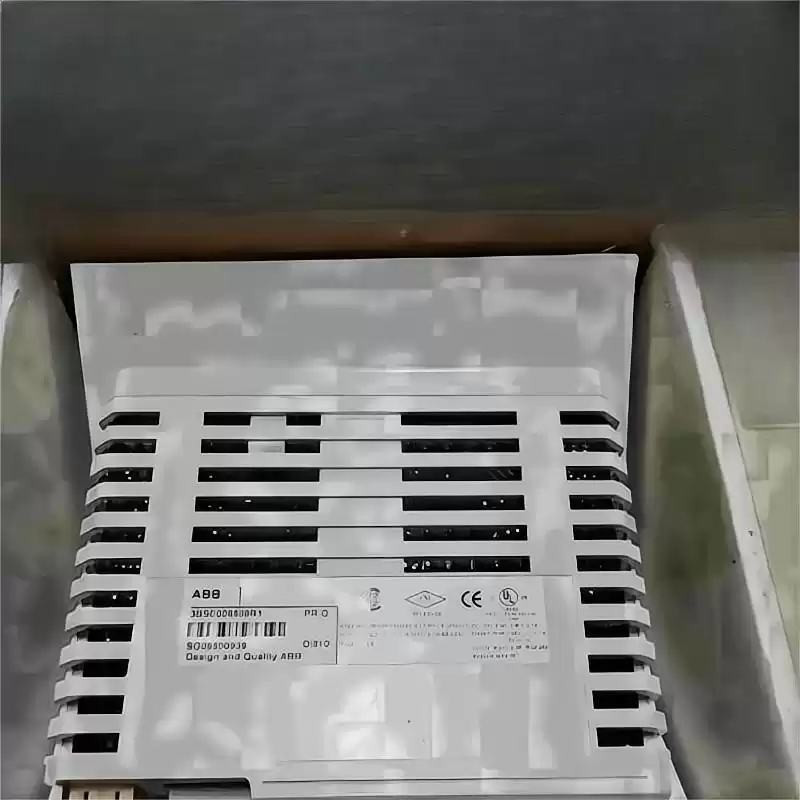

3BSE008508R1 ABB DI810 Digital Input 24V 16 ch

ABB - 3BSE008508R1 DI810 DIGITAL INPUT PLC MODULE 24VDC 2 X 8 CH

Isolated in two groups of 8 channels.
Use Module Termination Unit TU810, TU812, TU814, TU818, TU830, TU833, TU838, TU850.



ABB Group is listed among the Fortune Global 500 companies, with its headquarters located in Zurich, Switzerland. ABB was formed in 1988 by the merger of two international companies with a history of over 100 years, Sweden's ASEA and Switzerland's BBC Brown Boveri. The two companies were established in 1883 and 1891 respectively. ABB is a leading manufacturer in the field of power and automation technology. ABB's technology can help power, utility, and industrial customers improve performance while reducing adverse environmental impacts. ABB Group operates in over 100 countries worldwide, with 130000 employees and sales of $32 billion in 2010.

DI810 3BSE008508R1

DI811 3BSE008552R1

DI814 3BUR001454R1

DI820 3BSE008512R1

DI821 3BSE008550R2

DI825 3BSE036373R1

DI830 3BSE013210R1

DI831 3BSE013212R1

DI840 3BSE020836R1

DI885 3BSE013088R1

DI890 3BSC690073R1

DO810 3BSE008510R1

DO814 3BUR001455R1

DO815 3BSE013258R1

DO820 3BSE008514R1

DO821 3BSE013250R1

DO840 3BSE020838R1

DO890 3BSC690074R1

DP820 3BSE013228R1

DP840 3BSE028926R1

ABB Freeland Hybrid Digital Input Module

This Digital Input Module features 16 digital inputs and the input voltage range is 18 to 30 Vdc. The inputs are divided into two isolated groups with eight channels and one voltage supervision input in each group. Every input channel consists of current limiting components, EMC protection, input state indication LEDs and an optical isolation barrier. The process voltage supervision input give channel error signals if the voltage disappears with the error signal can be read via the ModuleBus

Digital input PLC module is rated at 24 Vdc with a rated isolation of 50 V. Suitable for use with ABB's Freelance Hybrid process control system solutions. Used with module termination units TU810, TU812, TU814, TU830, TU833, TU838.

Contact me at ONCE to get the quotation:

Attn: Mr. Liao

Mobile: +86 15259245292

Email: postmaster@adlemanplc.com

WeChat/WhatsApp: +86 15259245292

Digital Input PLC Module Specifications
? Voltage rating 24 Vdc
? 2x8 channel with voltage supervision
? Current sinking signal type
? 2 inputs status indicators

Distributed by Kempston Controls
