3D Robot Arm Laser Cutting Machine for tubes and pipes cutting and welding

Advanced ABB 3D Robotic Arm Laser Cutting & Welding Machine .unrestricted 6 axis laser cutting and welding machine.



Baisheng Robotic Arm Laser Cutting and Welding Machine for 3D Processing

Laser Robotic Arm Cutting Machine is very popular in 3D welding and cutting industries. So many integrations of a robotic arm into a CNC cutter.


According to real application ,the tables for cutting ,welding parts  are different ,using differenct chucks ,clap. User can customize this 3D robotic arm laser cutting machine,.


When changing welding head to cutting head ,need changing  the coordinate system.

  • Fiber Laser Power up to 4000 watt.
  • Auotmatic Capacitive sensor for metal surfaces cutting
  • A new generation of industrial laser equipment
  • Fiber laser allows Multi Axis flexibility
  • Integrated aiming beam for programming and process training
  • Excellent performance in material handling, machine tending and process applications
  • Robotic Arm Brand: ABB

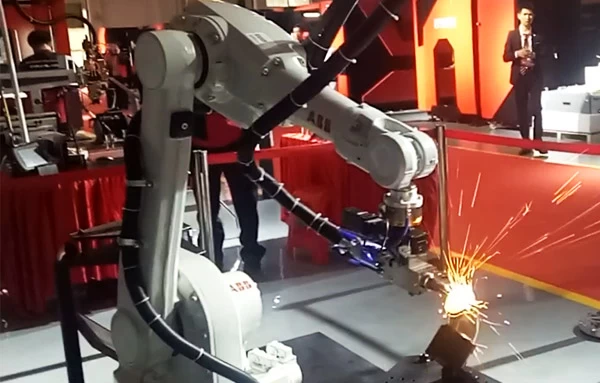

3D robotic arm laser cutting machine

Figures of Robotic Arm Fiber Laser Details

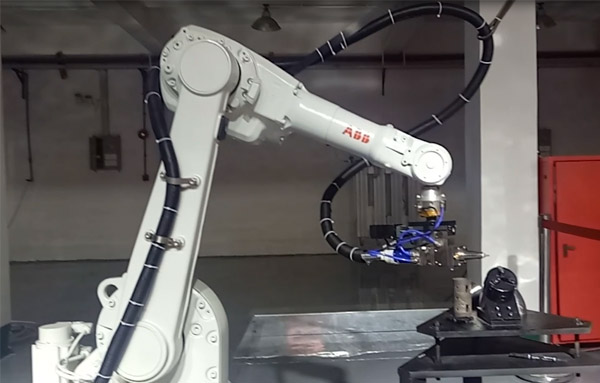

3D robotic arm laser cutting machine


According to different application ,head options for the Robotic laser.

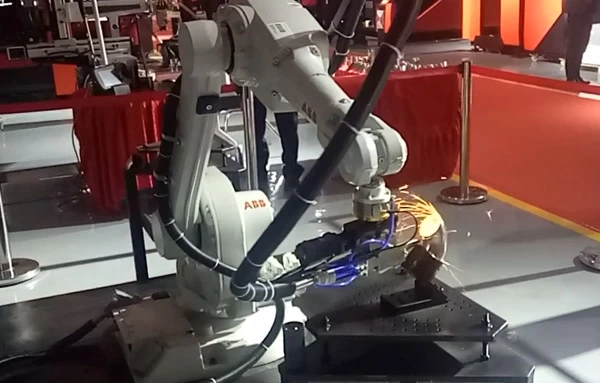

3D robotic arm laser cutting machine

Automatic Height Control

The BCS100 self-contained capacitor height adjuster (abbreviated as BCS100) adopts a closed-loop control method to control the laser-cutting capacitor follower and provides a unique Ethernet communication (TCP/IP protocol) interface.

It is easy to implement high-speed automatic tracking and sharing with Cypcut software.

Section perforation, progressive perforation, edge-seeking cutting, frog-leaping lifting, cutting head elevation setting, flight optical path compensation,etc.

The BCS100 adopts a double-closed-loop algorithm with speed and position. Its performance, such as speed and accuracy, is significantly better than similar products at domestic and abroad market.

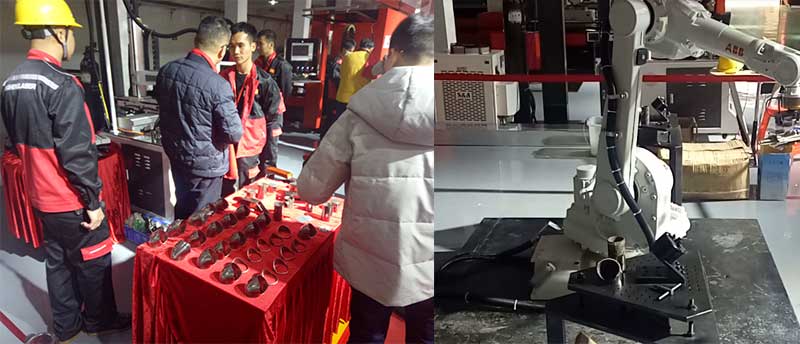

3D robotic arm laser cutting machine


Handheld Console

The remote wireless remote controller allows the operator to perform most operations from any convenient location: starting and stopping the program, lighting out, following, reversing the contour, increasing/decreasing the focal length, changing the feed rate, and outputting machine parts.
