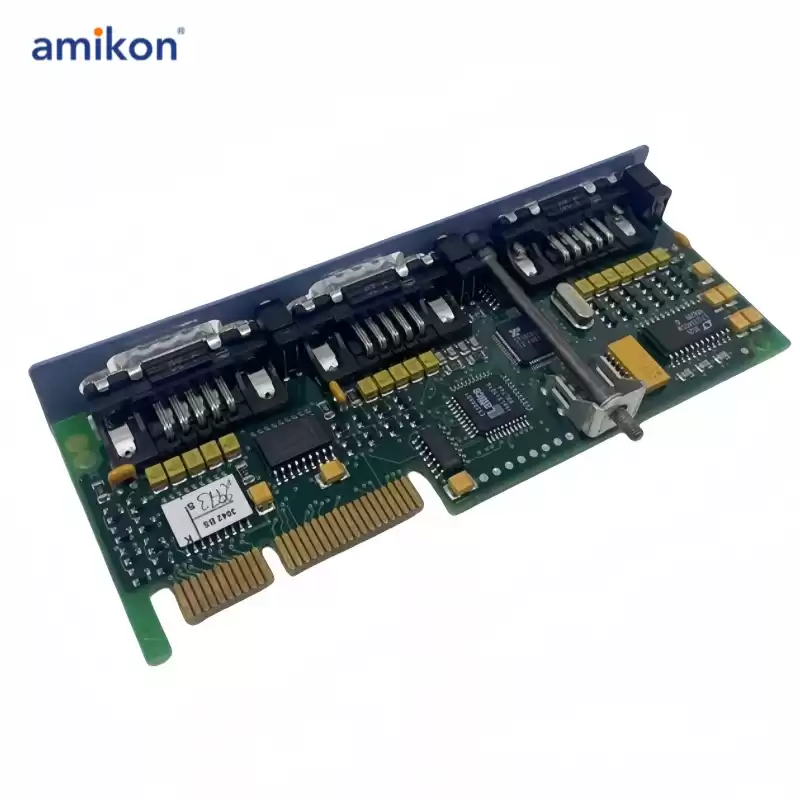

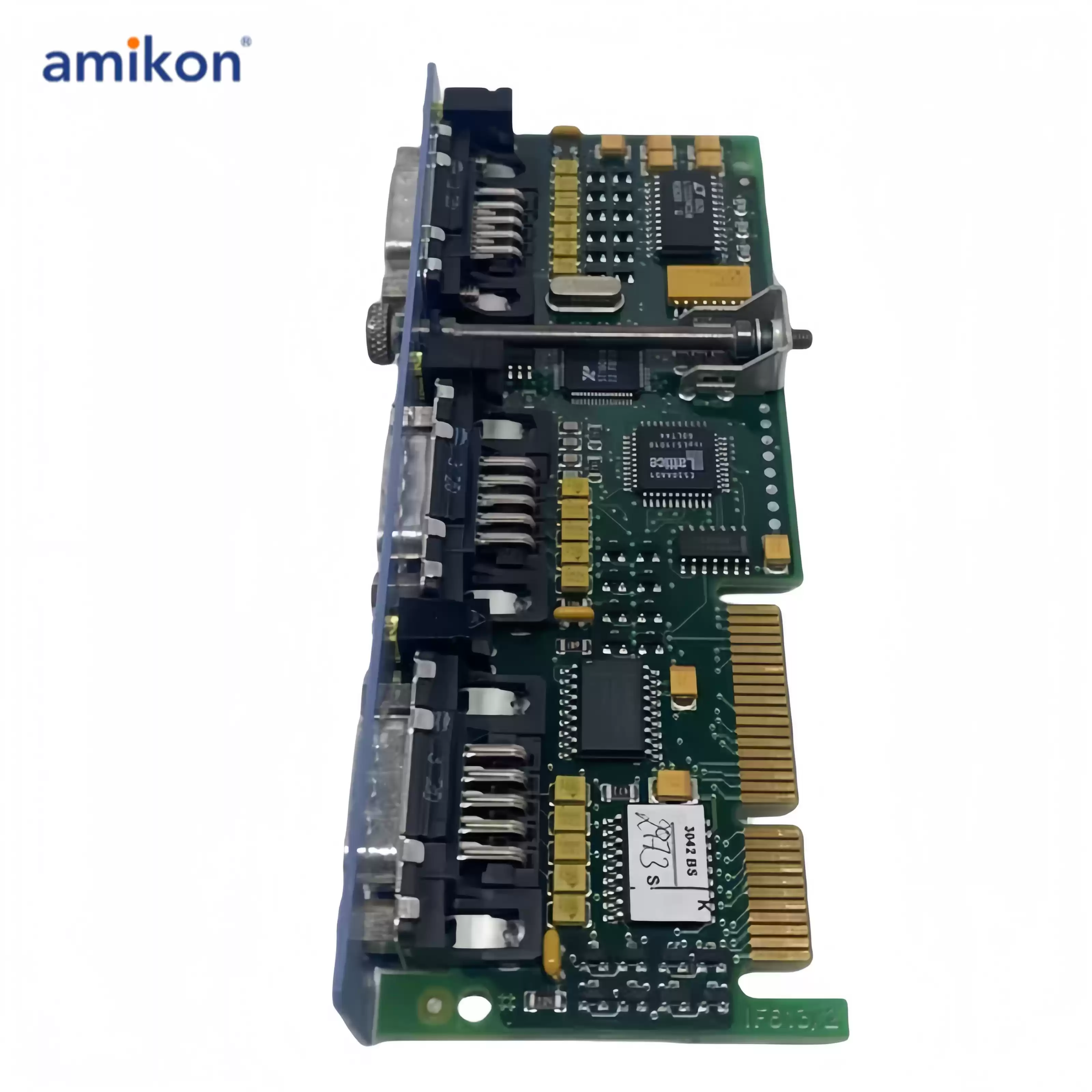

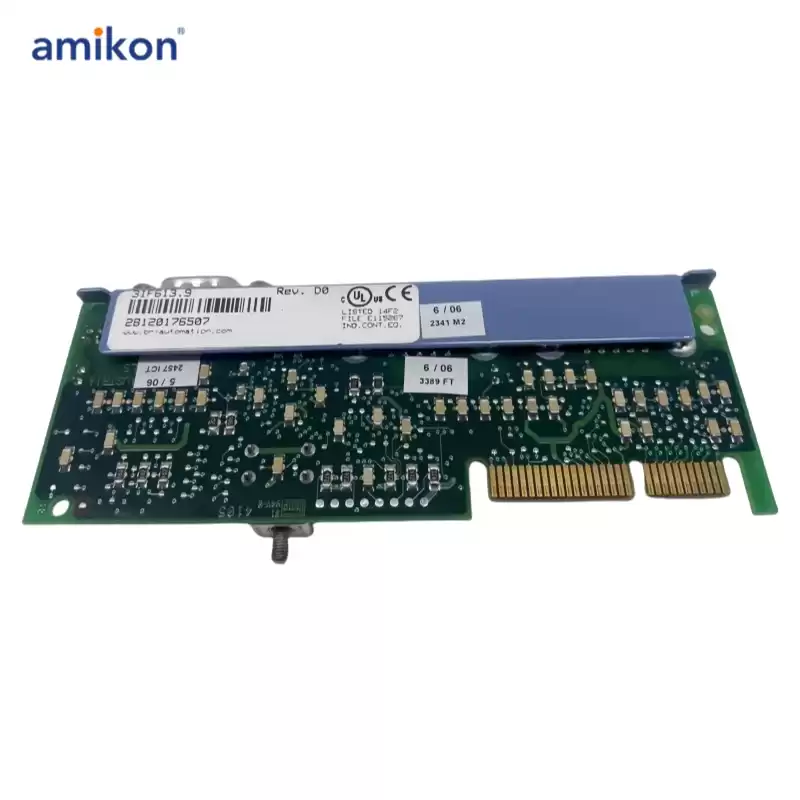

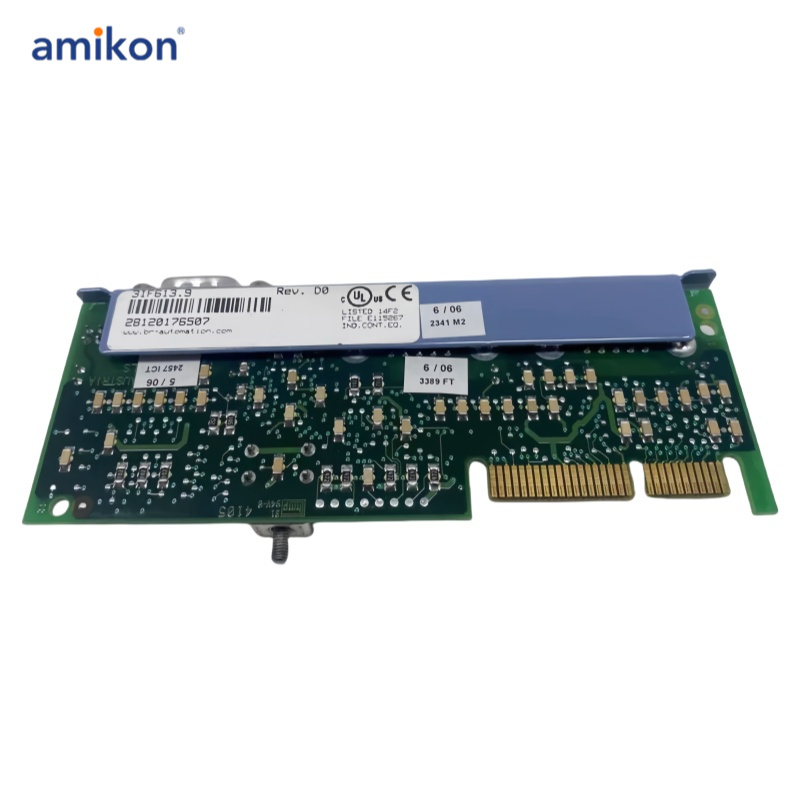

The 3IF613.9 interface module can be operated e.g. in an interface module slot on the CP260 or in the IF260 / IF060.
The module is equipped with three RS232 interfaces and is used to connect several peripheral devices which cannot be networked (modem, printer, barcode reader, terminals, etc.).
|
Product ID
|
3IF613.9
|
|
General Information
|
|
|
C-UL-US Listed
|
Yes
|
|
Slot
|
Insert e.g. in CP260, IF260, IF060
|
|
Interfaces
|
3 x RS232
|
|
Power Consumption
|
|
|
5 V
|
Max. 1.2 W
|
|
24 V
|
Max. 1.2 W
|
|
Total
|
Max. 1.2 W
|
|
Application Interface IF1
|
|
|
Type
|
RS232
|
|
Controller
|
UART Type ST16C654
|
|
FIFO
|
64 bytes in send and receive direction
|
|
Design
|
9-pin DSUB plug
|
|
Electrical Isolation
|
No
|
|
Input Filter / Protective Circuit
|
Yes
|
|
Maximum Distance
|
15 m / 19200 Baud
|
|
Maximum Baud Rate
|
115.2 kBaud
|
|
Handshake Lines
|
DTR, DSR, RTS, CTS
|
|
Network Capable
|
No
|
|
Data Formats
|
|
|
Data Bits
|
5 to 8
|
|
Parity
|
Yes/No/Even/Odd
|
