Product Advantages:
1. Remote control and BTS terminal
2. Intelligent charging control
3. Bypass with AVR function (optional)
4. Maximum charging current to 85A (depend on capacity and battery voltage )
5. SNMP card and RS232 communication (optional)
6. Input voltage range and battery voltage protect can setting through DIP switch
7. Battery type and charge current can be adjusted
8. Charge and output priority setting through front button
Data Sheet
|
Model
|
FL-IVCM3024
|
|
Rated power
|
3KVA/2400W
|
|
Input
|
|
Voltage
|
230V
|
|
Selectable Voltage Range
|
170-280 VAC ( ) 90-280 VAC ( Appliances )
|
|
Frequency Range
|
50 Hz/60 Hz (Auto sensing)
|
|
Battery Voltage
|
24VDC
|
|
Output
|
|
AC Voltage Regulation
|
230VAC ± 5%
|
|
Efficiency(Peak)
|
>95% ( Rated R load, battery full charged )
|
|
Transfer time
|
10ms typical (UPS); 20ms typical (Appliances)
|
|
Waveform
|
Pure sine wave
|
|
SOLAR CHARGER&AC CHARGER
|
|
Maximum Solar Charge Current
|
60A
|
|
Maximum AC Charge Current
|
60A
|
|
Maximum Charge Current
|
120A
|
|
Rated Power
|
1500W
|
|
Max. PV Circuit Voltage
|
145Vdc max
|
|
PV MPPT Volt Range
|
30-115V dc
|
|
Min. Battery Volt for PV Charge
|
17Vdc
|
|
OPERATING ENVIRONMENT
|
|
Storage Temperature
|
0°C - 55°C
|
|
Humidity
|
-15°C - 60°C
|
|
PHYSICAL
|
|
Dimension
|
136X295X420
|
|
Net Weight
|
12KG
|
Product Details

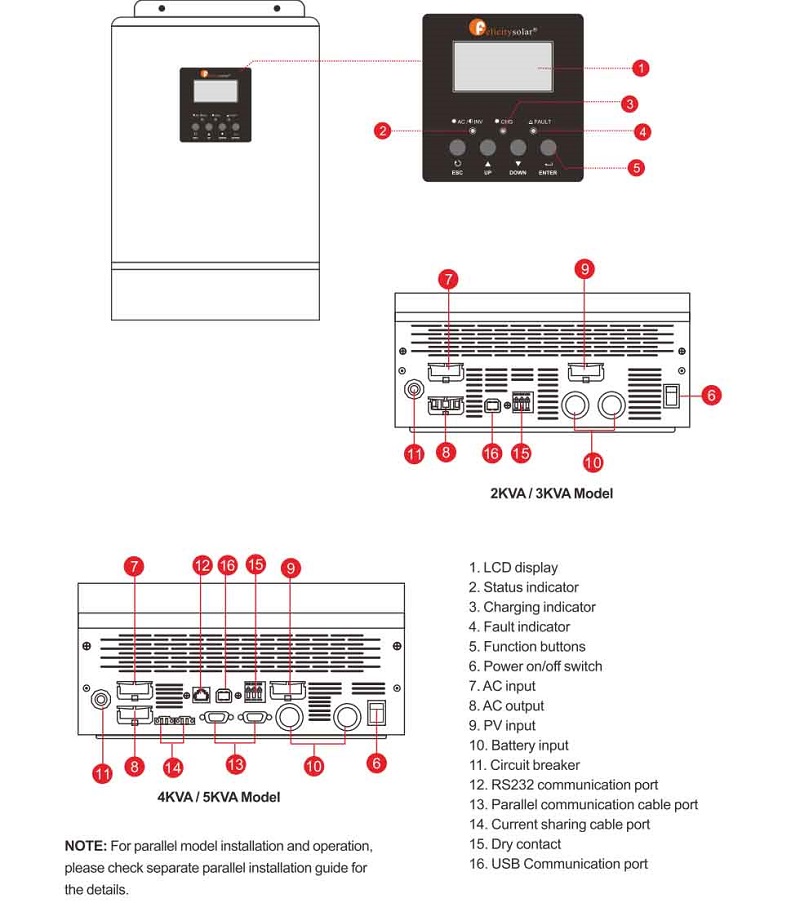

Connection Overview
Production Line
Payment Term
We support wide range of secure & reliable payment methods like T/T, L/C, West Union, E-checking, Paypal and so on. Please choose your preferred payment method from those listed below.
|
yment Terms
|
T/T or Cash
|
EXW
|
30% TT in advance, pay the balance before shipment
|
|
FOB
|
|
CFR (C&F)
|
30% TT in advance, pay the balance against copy of B/L
|
|
CIF
|
|
L/C
|
For the amount more than US$90,000 payment, we can accept L/C
|
|
Paypal
|
For the amount less than US$2,000 payment, we can accept Paypal , West Union or MoneyGram
|
|
West Union
|
|
MoneyGram
|
RFQ
Q1.How do you provide your after sale service？
A:Professional after-sales team will help you in china and other country's agent, If you have any questions about our product, please contact us, we will solve your problem based on your situation.
Q2.Can you provide OEM, ODM service?
A: OEM and ODM service is available.
Q3.what kind of certificate you have ?
A: ISO, CE, ETL, Thayer, UL .
