Features:
- Pure sine wave output
- Rated power 1000W to 12000W
- Built in MPPT or PWM solar controller
- Can choose different types of batteries
- Against overload, short-circuit Protection
- High-low voltage protection
- Over voltage, battery reverse connection(optional)
- Under-voltage and over-temperature protection
- Selectable battery priority or utility priority
- Have UPS function and 35A AC charger function
- LCD display inverter and solar information
|

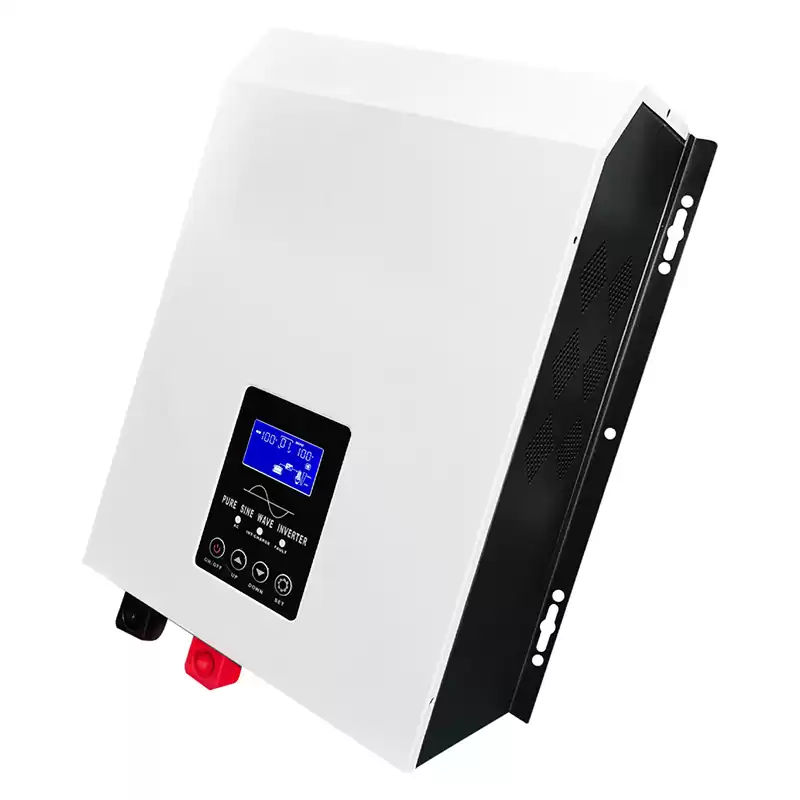

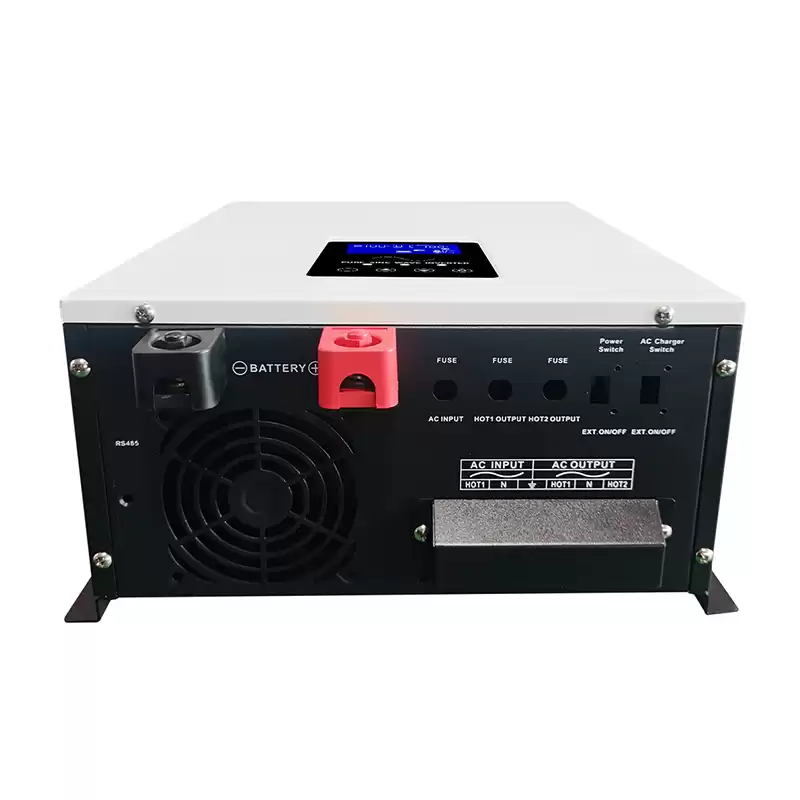

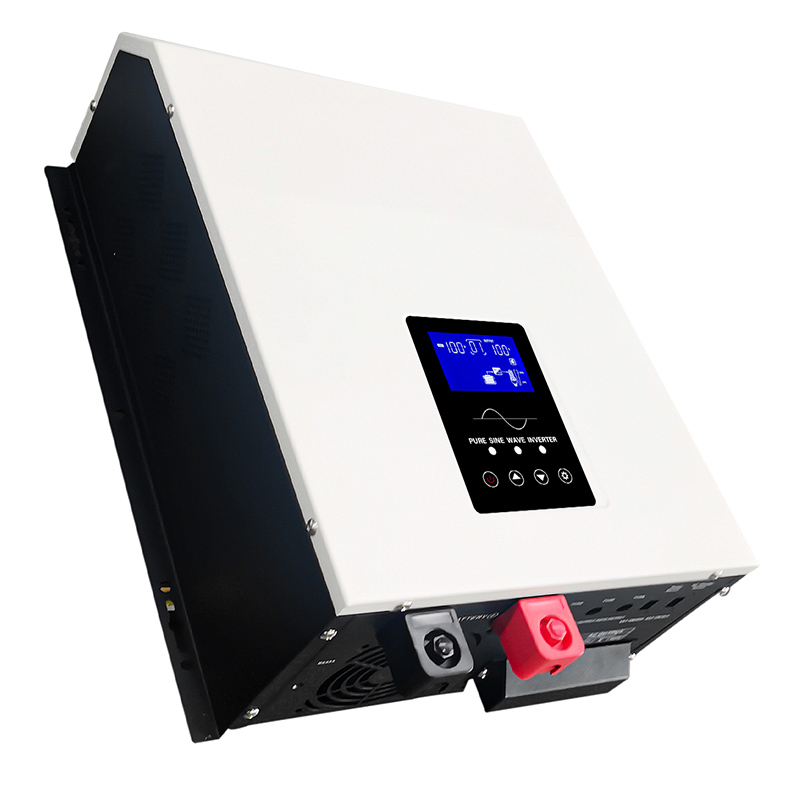

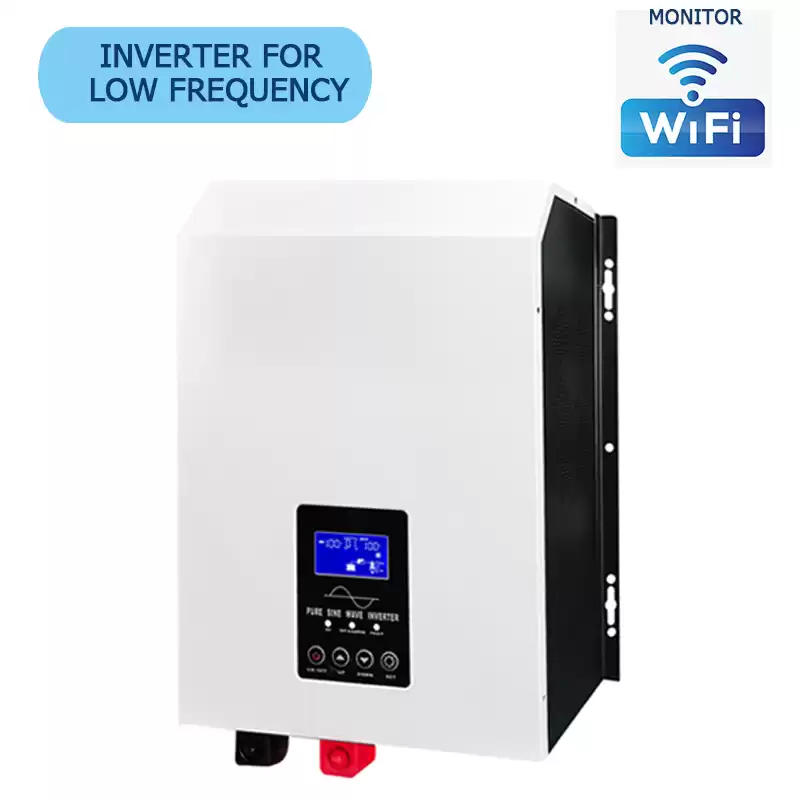

Model
|
LF-VC 3KW
|
|
INVERTER OUTPUT&INPUT
|
|
Rated power
|
3000W
|
|
Peak power
|
9000W
|
|
Output wave form
|
Pure sine waveform
|
|
Output Voltage
|
110VAC/120VAC/220VAC/230VAC±2%
|
|
Mains Input Frequency Range
|
45Hz-65Hz
|
|
Thermal Method
|
Intelligent fan cooling, ≤42℃ fan rotates slowly , ≥45℃ fan rotates fast
|
|
Capable Of Starting Electric Motor
|
1.5HP
|
|
Solar INPUT&Controller
|
|
MPPT
|
24V 50A MPPT
|
|
AC INPUT&OUTPUT
|
|
Commercial Power Range(VAC)
|
110VAC:73~137 120VAC:80~150 220VAC:145~275 230VAC:152~288 240VAC:158~300
|
|
AVR output
|
110/120/220/230/240±10%
|
|
AC Charging Current
|
10-40A
|
|
BATTERY
|
|
Battery voltage
|
24VDC
|
|
DC Input Voltage Range
|
21.0VDC-30VDC
|
|
Battery Under Voltage Protection
|
21Vdc
|
PROTECTION
|
Temperature Protection
|
≥85 ℃ alarm, ≥90 ℃ of f the machine
|
Overload
|
IPS automatically shut down if overload exceeds 120% of normal value f or 10 seconds,IPS automatically
resume work if overload comes to rated load
|
