Application situation:
Standby Generators for power outages
On-site generators for the construction Industry
Mobile generators for events and catering
Portable Generators for Camping and outdoor activities
Batteries for clean, silent, mains power anywhere and everywhere

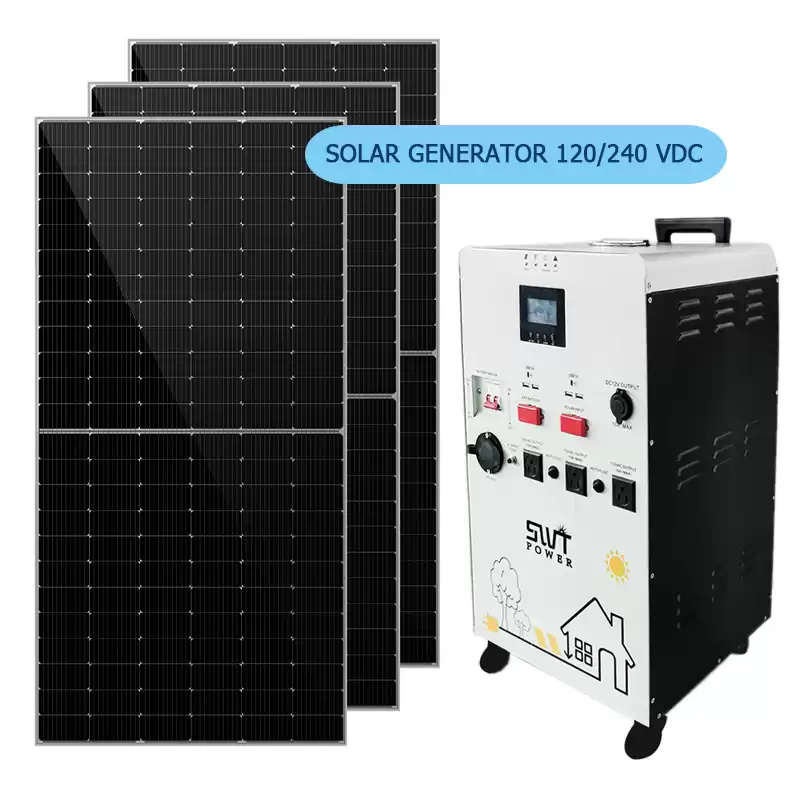

What is a portable power station?
A portable power station is a generator powered by a rechargeable battery. Equipped with an AC outlet, DC carport, and USB charging ports,
they can keep all your gear charged, from smartphones, tablets, laptops, to CPAPs and small devices, like a fan, mini coolers, electric blankets, etc.
How does a portable power station work?
In fact, it is a DC to AC inverter that increases the DC voltage and then changes it to AC before sending it out to power a device, like your laptop and TV.

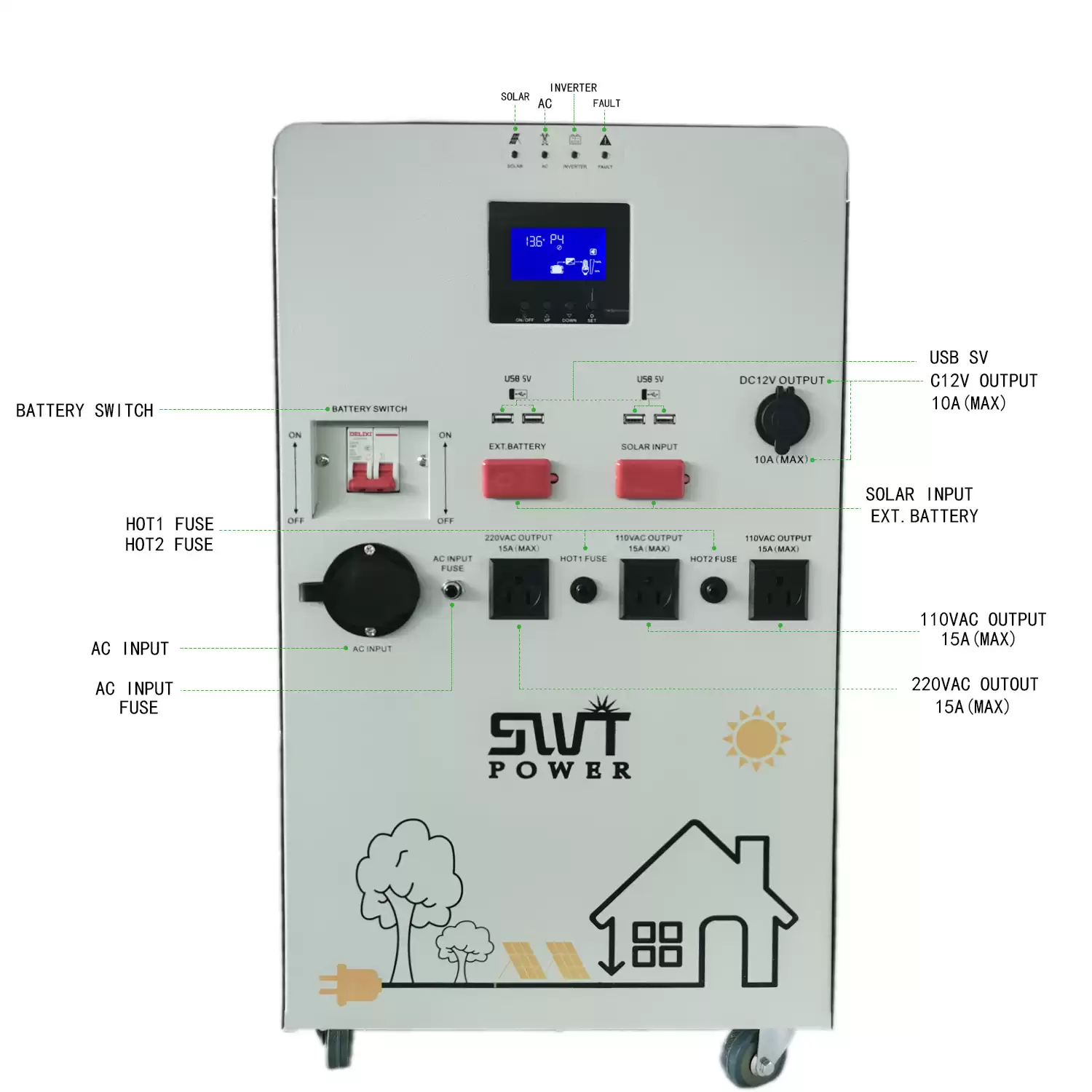

The DC input port collects and stores electricity / energy from an AC outlet or solar panel and outputs via built-in USB ports, DC carport or AC outlet
|
Model
|
LF-SG-3000W
|
INVERTER OUTPUT &INPUT
|
Rated Power
|
3000W
|
Peak Power
|
9000W
|
Output Waveform
|
Pure sine wave
|
Output Voltage
|
10/120VAC（L-N) & 220/230/240VAC(L-N-L)±10RMS
|
Input Frequency Range
|
45Hz-65Hz
|
Output Frequency Range
|
50Hz/60Hz ±10%
|
Conversion Time
|
≤5ms
|
Cooling Method
|
Intelligent fan cooling, ≤42℃ fan rotates slowly, ≥45℃ fan rotates fast
|
AC INPUT&OUTPUT
|
Input Voltage Range
|
110/120VAC（L-N) & 220/230/240VAC(L-N-L)
|
Output Voltage Range
|
85-138VAC(AC:110) 170-275VAC(AC:220)
|
Output Frequency Range
|
Automatic tracking
|
AC Charging Current
|
15A
|
Max solar charging current
|
30A,40A,50A,60A,80A
|
Max PV input power
|
48V-30A:1440W,48V-50A:2400W,48V-60A:2880W,48V-80A3840W,48V-100A:4800W,48V-120A:5760W
|
PV array MPPT voltage range
|
48V:72V-150V
|
Peak conversion efficiency
|
>99%
|
BATTERY
|
Battery type
|
LiFePO4
|
DC Voltage
|
48VDC
|
Battery capacity
|
3000WH
|
Battery Under Voltage Alarm
|
40 VDC±0.3V
|
Battery Over Voltage Alarm
|
60 VDC±0.3V
|
Battery Under Voltage Protection
|
42 VDC±0.3V
|
Battery Over Voltage Protection
|
66VDC±0.3V
|
Packing
