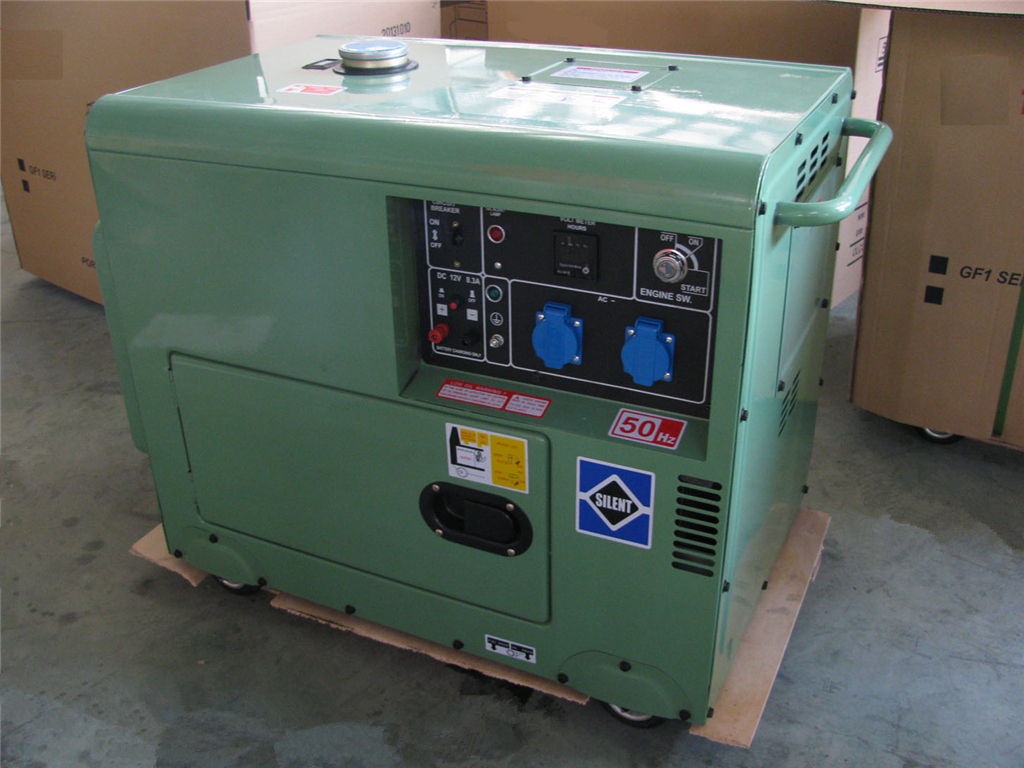

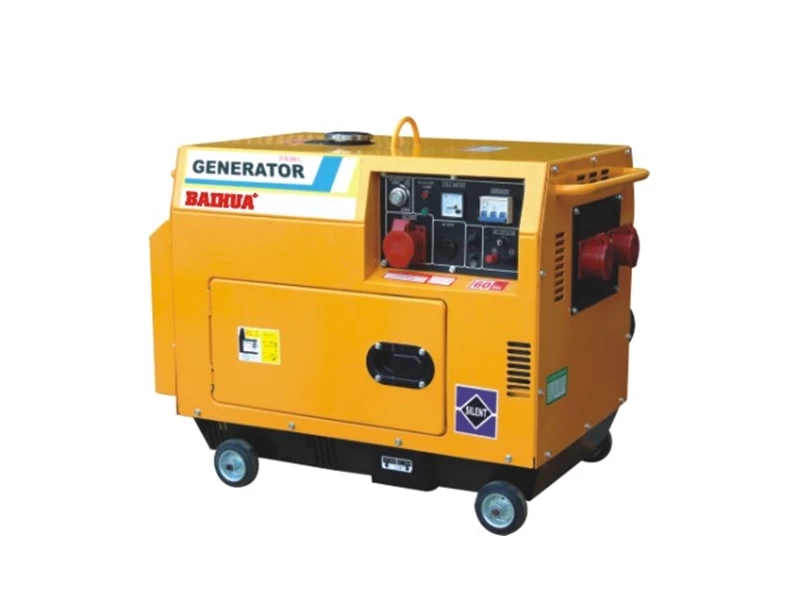

Low Noise Generator 3kw up to 6kw is silent diesel generator equipped with 1 cylinder air-cooled engine 3000PRM and applied to a house or shop where consumes small electricity for the illumination sometimes. They are also almost the most compact diesel generator set in the world.

1. Criterion And Certificate

① High-Standard materials and spares.

●  From screws,bearings,noise sponges,wires,vibration-absorber,relay,AVR,diode,gauges,pines, to copper-wire, steel plates,meters,controllers,battery,AMF,ATS and so on.

② High-Educated and Experienced Research And Development team

● With a highly-professional research and development team,not only can FMW power manufactuer standard reliable quality gensets but also FMW power can design different kinds of gensets such as super silent generator,container power station,intelligent generator according to client's unique demands.

③ Reliable Performance And Criterion

Voltage Regulation:

●  Free-load voltage setting range≥(95-105)%Un

● Steady-state voltage regulation rate≤±1.0﹪

●  Transient-state voltage regulation rate≤+20﹪/-15%

●  Voltage recovery time≤1.0S

●  Voltage fluctuation ratio≤±0.5﹪

●  Cold/hot-state voltage ratio≤2﹪

Frequency/Speed Undulation:

● Change load from 0-100%, Frequency/Speed Droop Ratio within 5%.

● Load from 25-100%, any steady load Frequency/Speed undulation within 0.25%

Telecom Effect Factor:

● TIF( MA MG1-22) better than 50

● THF( BS EN60034) better than 2%

Criterion:

● ISO8528, GB/T2820

● EN12601:2001, EN60034-22:1997, EN60204-1:2006

● ISO9001:2008 Quality Control System

● Insulating Resistance Tested in accordance with GB5226.1-2002-19.3

● Withstand-Voltage Tested in accordance with GB755-2000-8.1(with 1500V by 60S)

● All electric spares tested in accordance with GB5226.1-2002-19.6

● Mechanical Security tested in accordance with GB/T820.8-2002-6.3

● Fire-Proof tested in accordance with GB/T2820.8-2002-6.4/6.5

● All generator sets are inspected strictly  by 25%,50%,75%,100% and 110% Load.
