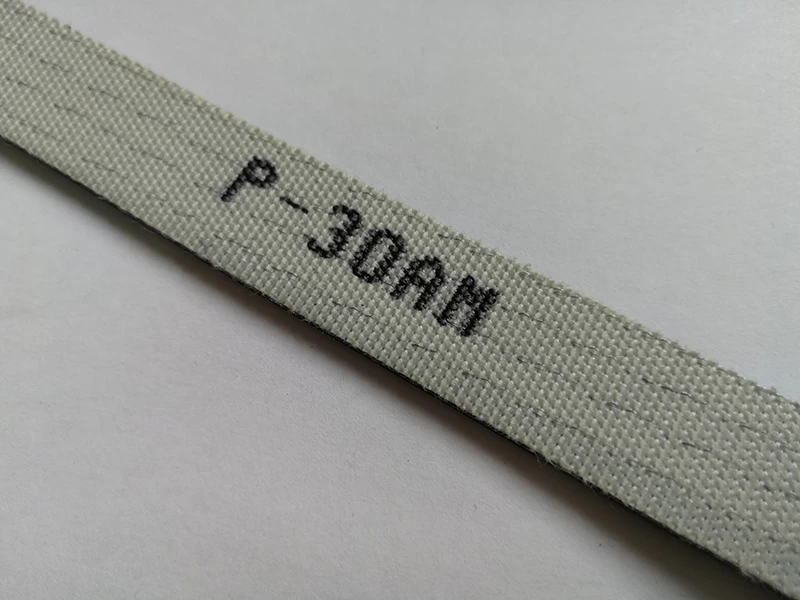

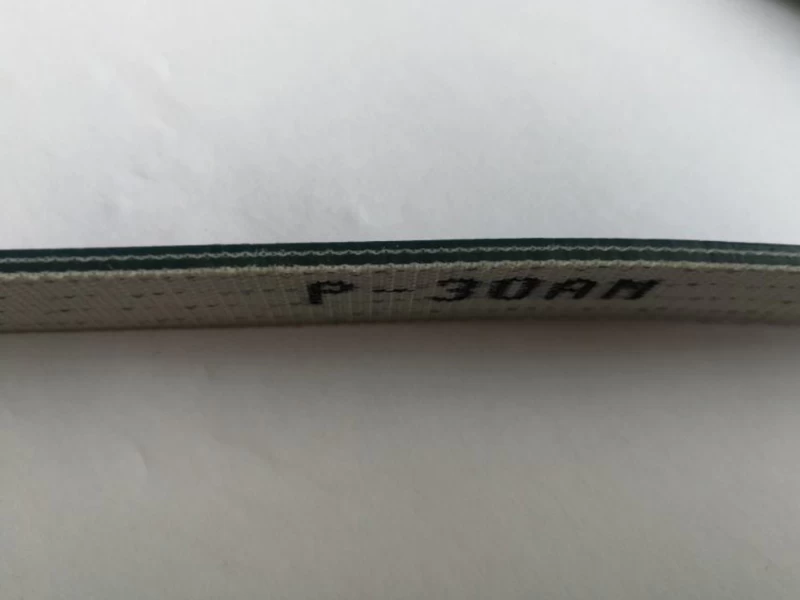

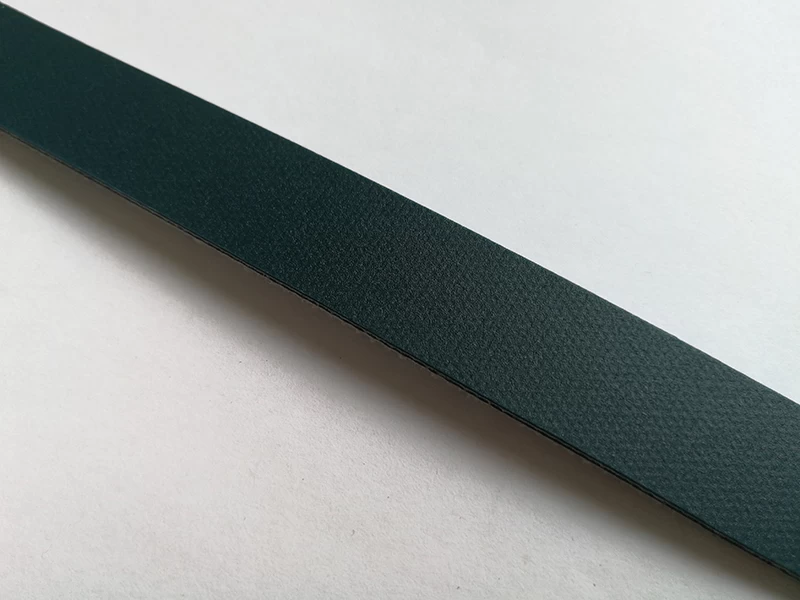

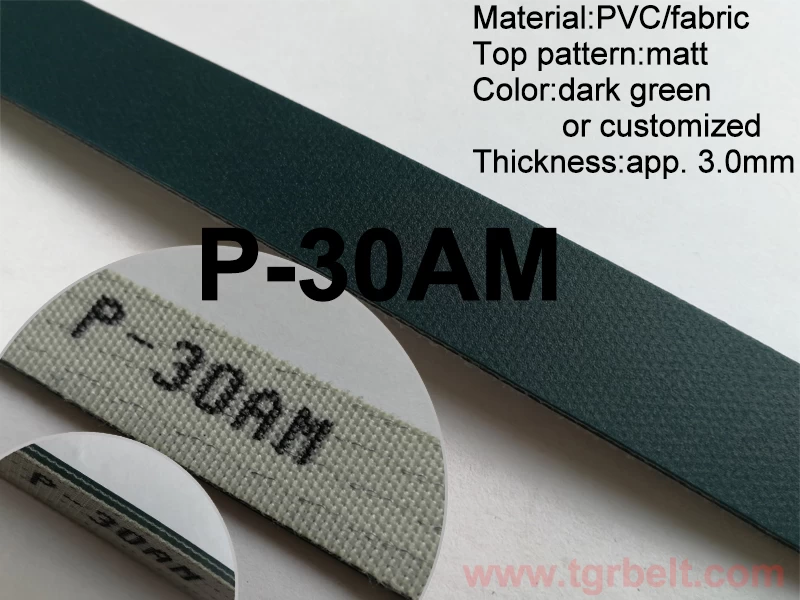

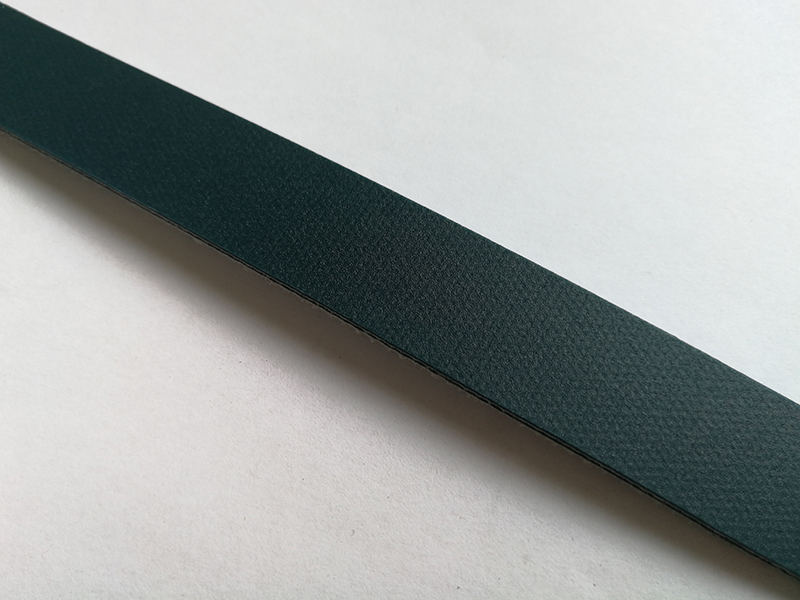

PRODUCT: matt PVC conveyor belt,P-30AM
Technical datas
|
Type
|
P-30AM
|
|
Belt thickness
|
3.0mm
|
|
Color
|
dark green
|
|
Surface
|
matt
|
|
Hardness top
|
80 shore
|
|
Weight
|
3.3kg/m2
|
0.675 lbs./ft.2
|
|
Force at 1% elongation
|
8N/mm
|
44.79 lbs./in.
|
|
Temperature range
|
-15 to 80°C
|
5 to 176°F
|
|
Min. pulley diameter
|
60mm
|
2.36in.
|
|
Standard roll belt width
|
2000mm
|
78.74in.
|
|
Processing
|
cut to length or
endless ,welded guides on the bottom, and other special
processing requirement
|
|
Endless instructions
|
Hot splicing is always preferable.
|
Main Feature
The greatest featrue of 3m wide dark geen matt PVC conveyor belt is the matt finished top PVC coating,meet the need of friction.
Joint systems
The following splice methods are all availbable on your request.
|
Z-splice joint
|
overlap joint
|
fastener joint
|
As a reputed belting manufacturer and supplier,we own our experienced R&D team,production factory and workshop.
|
Facilities-machines conditions
|
50sets
|
|
Quality Assurance System
|
Tiger Standard
|
|
Sales staffs
|
10-20
|
|
Annual turnover
|
250-400USD
|
|
Telephone
|
86(0595)68883000,(0595)88811642
|
|
Fax
|
86(0595)83112333
|
|
E-mail
|
info@tgrbelt.com
|
|
Trademark
|
TGRBELT
|
|
Managing Director
|
Mr. Li
|
-QUALITY
ASSURANCE
Guarantee that the
commodity hereof complies in all respects with the quality and specification
stipulated in the contract.
-DELIVERY GUARANTEE
Ship the goods
within the shipment time from the port of shipment to the destination in the
contract.
-FACTORY PRICE
Prices refer to
the cost of raw materials directly from factory.
-TEAM OF
PROFESSIONALS
Offer experienced
customer service and technical support including belts selection, calculation,
application and after-sale service.
-FABRICATION
WORKSHOP
Provide belts
cutting, jointing, as well as belt perforations, belt sealed, belt coated with
rubber and sponge, belt guides,etc.
-SERVICE NETWORK
Set up office,
branches in Foshan, Suzhou, Wenzhou, Hongkong, etc, service locations for
processing industrial belts in Foshan,Wuxi,Yongbo etc.
