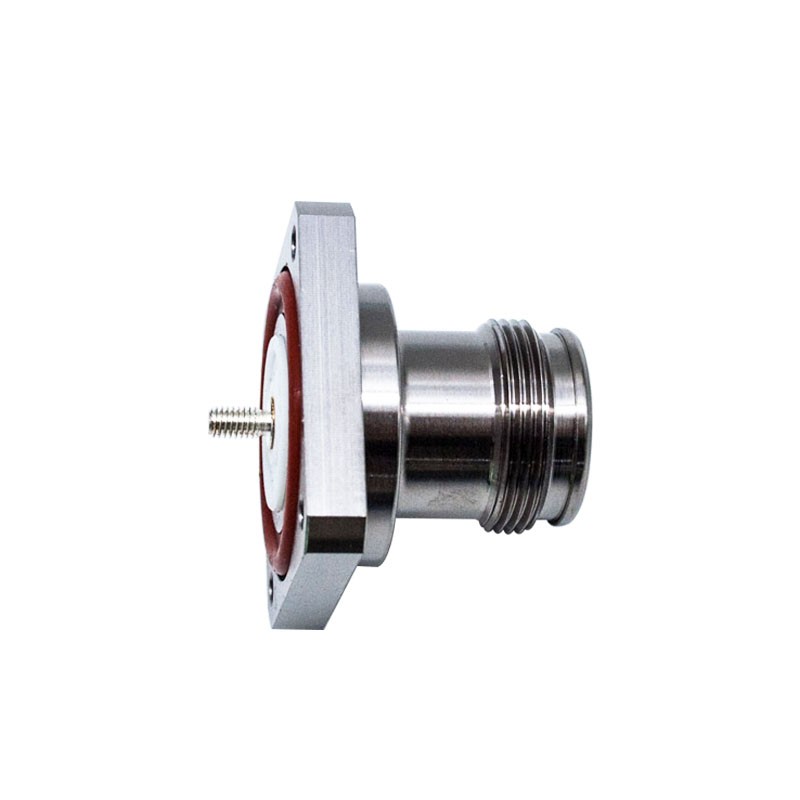

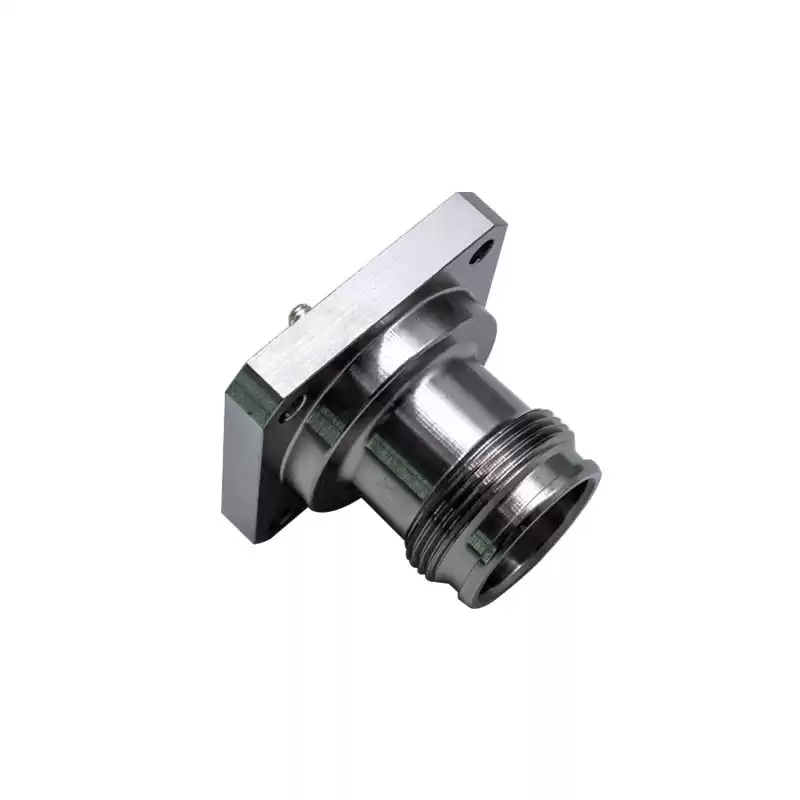

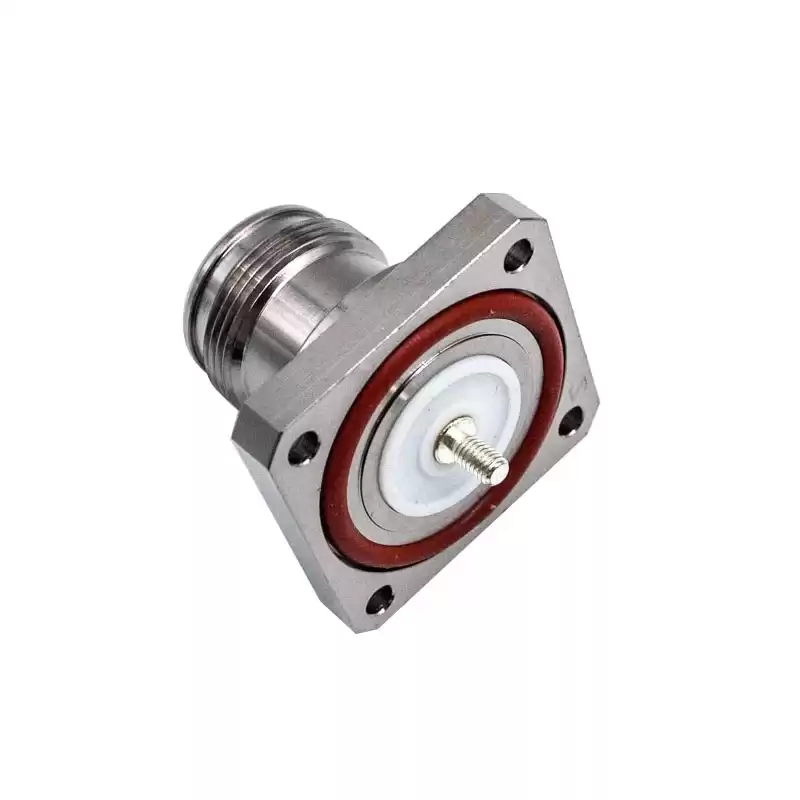

4.3-10 Female Connector 4 Hole Flange Mount with Threaded Pin
The 4.3-10 connector offer the same, robust design as 7-16 connectors but are smaller and up to 40% lighter, allowing for much more dense, lighter weight applications. These designs are IP67 compliant when mated to protect against dust and water ingress for outdoor applications, and frequency max up to 6GHz; this 4.3-10 female connector with 4 hole flange has an interface type of Pin Terminal and a 50ohm impedance, attachment method uses shield/contact threaded pin, its straight body is brass with nickel plating.
Specifications
| ELECTRICAL DATA |
|
| Impedance |
50Ω |
| Frequency Range |
6GHz |
| Dielectric withstanding voltage (at sea level) |
4000 V rms,50Hz |
| Working voltage (at sea level) |
2500 V rms,50Hz |
| Insulation resistance |
≥ 100000 mΩ |
| Contact resistance |
Inner conductor: ≤0.4mΩ |
| Outer conductor: ≤1.5mΩ |
| RF leakage (at 1 GHz) |
≥128dB |
| MECHANICAL DATA |
|
| Coupling nut torque |
Recommended: 25Ncm--30Ncm / 221 in. lbs--260 in.lbs |
| Proof torque: 35 Ncm / 310 in.lbs |
| Coupling nut retention force |
≥1000N / 225.0 lbs |
| Contact captivation |
≥200N / 45.0 lbs |
| Durability (matings) |
≥500 |
| ENVIRONMENTAL DATA |
|
| Temperature range |
-65°C to +165°C |
| MATERIAL DATA |
|
| Bodies |
Brass--ternary alloy plating |
| Pin contacts |
Brass--Au/Ag plating |
| Socket contacts |
Phosphor bronze / Beryllium copper--Ag plated |
| Crimp ferrules |
Copper--ternary alloy plating |
| Insulator |
PTFE |
| Gaskets |
Silicone rubber |
Applications
- Base Stations
- Wireless Infrastructure
- Small Cells
- Distributed Antenna Systems (DAS)
- Mobile Networks
- MIMO Antennas
