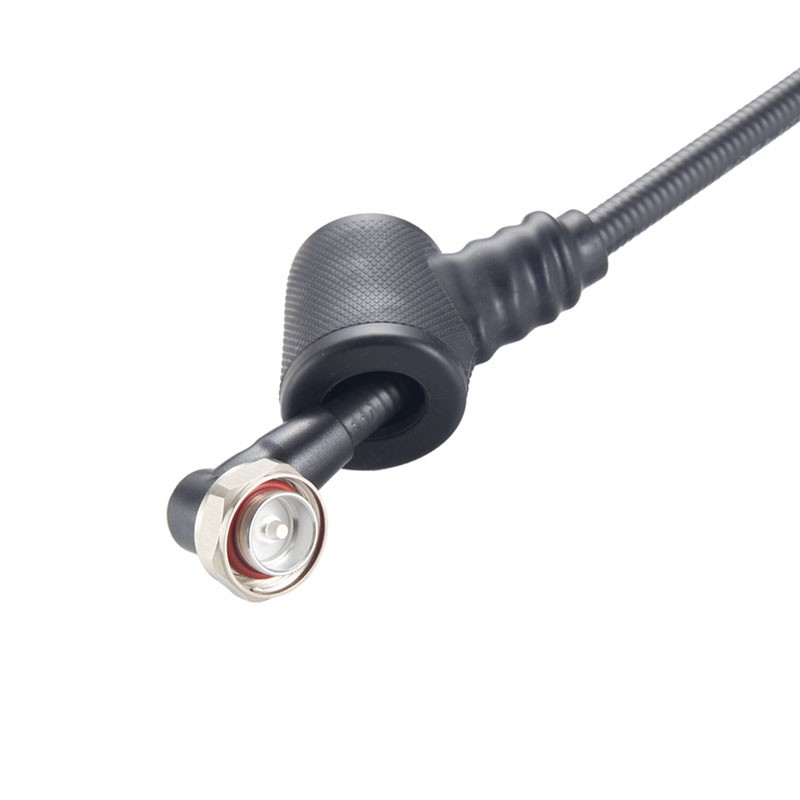

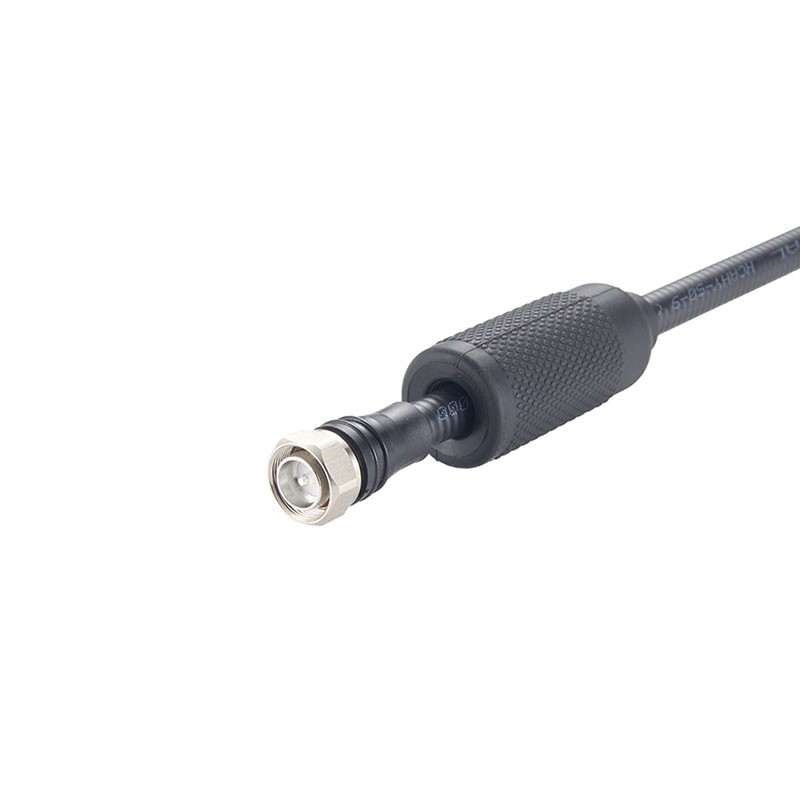

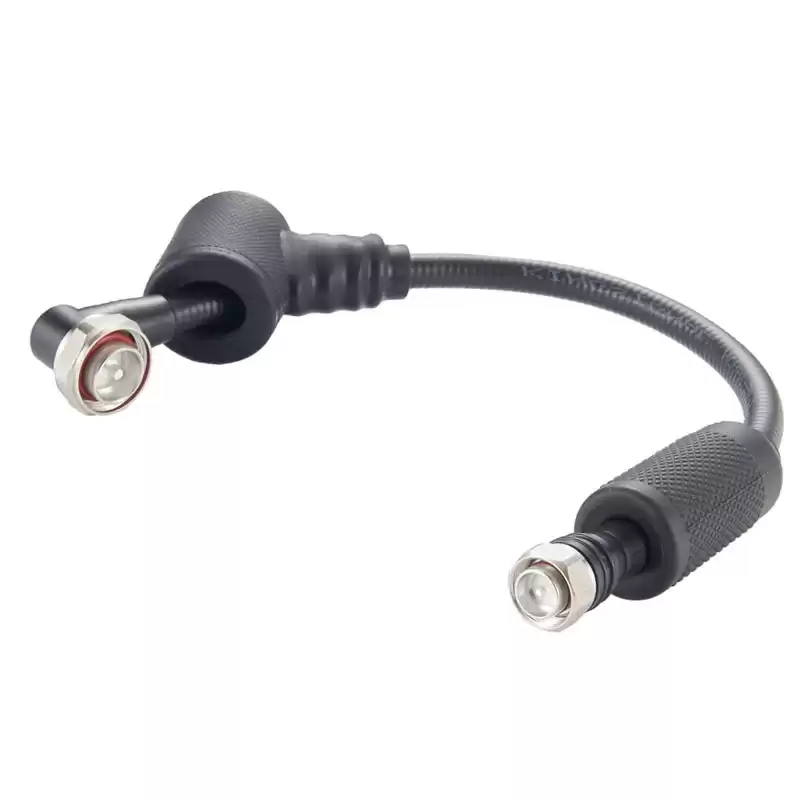

4.3-10 MINI DIN Male to Right Angle 7-16 DIN Male Connector Assembly with 1/2 Superflexible Cable
The 4.3-10 cable assembly can use flexible or corrugated coaxial cable such as LMR240, TFT402, LDF4-50A (1/2"); the body of 4.3-10 to 7-16 cable assembly is right angle or straight connectors which is female to female, female to male, male to female or male to male gender. ROHO's 4.3-10 to 7-16 DIN cable assembly is a low PIM cable. This 4.3-10 male to 7-16 DIN male cable assembly uses a 50ohm straight 4.3-10 for connector 1 and a 50ohm right angle 7-16 DIN for connector 2, Cable is 50ohm 1/2 super flexible.
Specifications
| ELECTRICAL DATA |
|
| Connector 1 Series |
4.3-10 |
| Connector 1 Style |
Str Male |
| Cable Type |
1/2 Super flexible |
| Connector 2 Series |
7-16 DIN |
| Connector 2 Style |
RA Male |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
50 |
| Low PIM |
Yes |
| Max Frequency |
6 GHz |
| Working Temperature |
-65°C to +165°C |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- Multi-Carrier Communication Systems
- Low PIM Applications
- Distributed Antennas Systems (DAS)
- Outdoor Installations
- Plenum Installations
