Specification
|
|
Part No.
|
TST043015CMHX-P
|
|
Outline Dimension(mm)
|
105.5x67.2x4.2(Typ.)
|
|
Display Area(mm)
|
95.04(H)x53.856(V)
|
|
Driver IC
|
HX8257A
|
|
Resolution(dots)
|
WQVGA, 480*RGB*272
|
|
Description
|
4.3" 500 nits brightness lcd display panel
|
|
Operating temperature(°C)
|
-20-70
|
|
Storage temperature(°C)
|
-30-80
|
|
Number of Pixel(pixels)
|
480RGB(H)*272(V)
|
|
Pixel Pitch
|
0.198(H)*0.198(V)
|
|
Pixel arrangement
|
RGB Vertical stripe
|
|
Display mode
|
Normal white,262k colors, 4.3 inch tft lcd
|
|
Surface treatment
|
Antiglare, Hard-Coating(3H), AF,AR coating
|
|
Weight(g)
|
50(Typ.)
|
|
Module brightness(cd/m2)
|
500(Typ.)
|
|
Backlight
|
LED Side-light type,
|
|
10 pcs. white led(20MA/chip, recomendation)
|
|
Power Consumption(w)
|
Logic system
|
0.09Max.
|
|
B/L system
|
0.924Max.
|

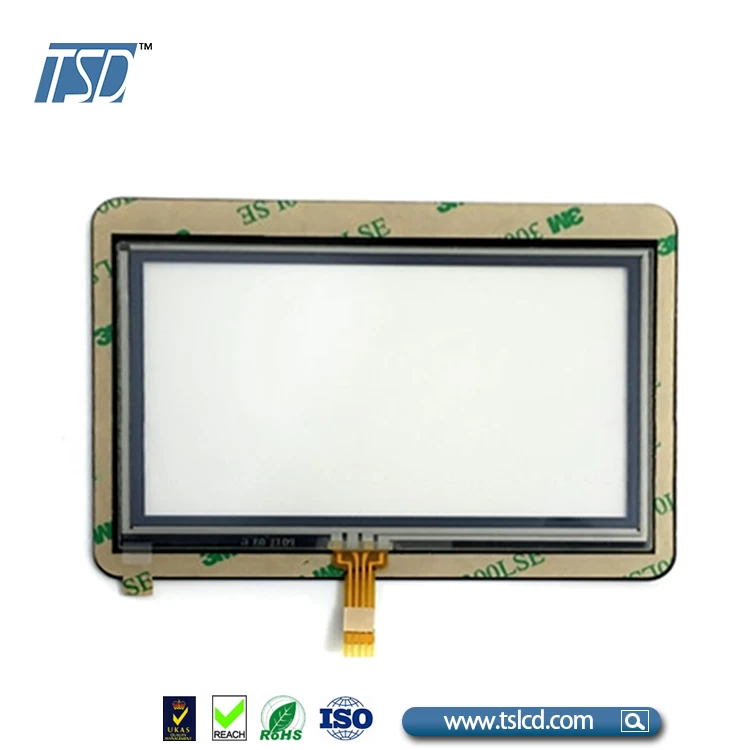

Standard CTP Spec.:
|
Description
|
INL Specification
|
|
Touch panel Size
|
4.3
|
|
Glass structure
|
G+G
|
|
Outline Dimension(OD)
|
123.04*84.46mm
|
|
Product Thickness
|
1.6mm(max)
|
|
Glass Thickness
|
0.7mm
|
|
Ink View Area
|
97.7*56.44mm
|
|
Sensor Active Area
|
97.7*56.44mm
|
|
Input Method
|
5 Fingers
|
|
Activation Force
|
Touch
|
|
Surface Hardness
|
≥6H
|
|
Interface
|
I2C
|
|
Driver IC
|
FT5336
|
|
CTP PINs
|
10pins
|
CTP Customization:
We can design and customize Capacitive touch panel for you with different size, shape and Logo. Welcome to contact us for details. We would like to help you develop your project.
Custom CTP Feature：
1.up to 10 touch points
2. CTP Bonding : OCA bonding or 3M double side tape
3. AG/AF/AR coating available
4. …
Custom Process:
Confirm specific requirements → pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect
Lead time for custom LCD:
drawing making:2-5days
tooling and samples: around 3wks
