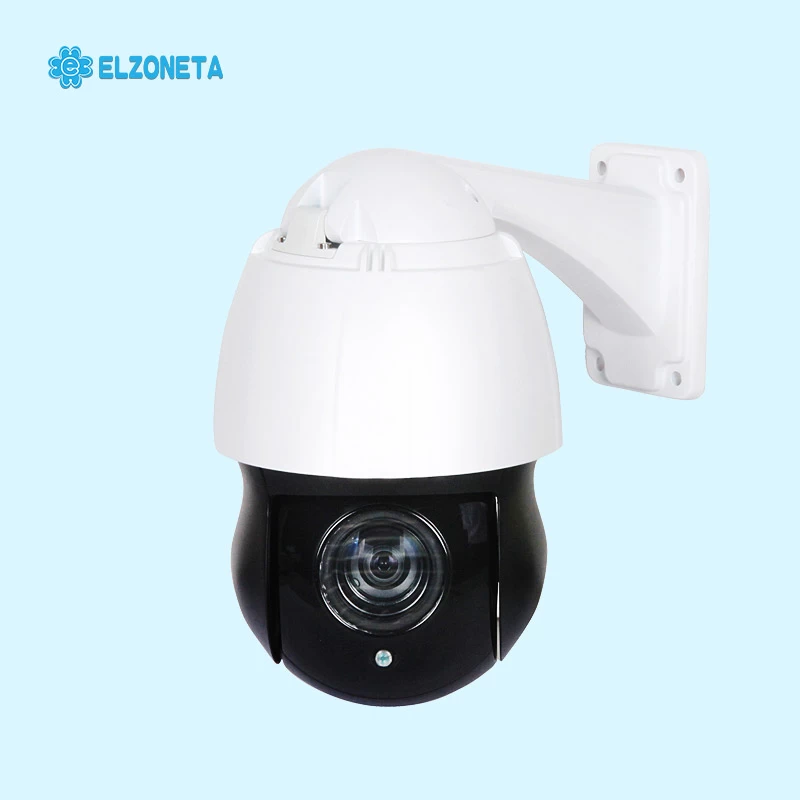

EC-HS16 4.5 Inch Mini HD PTZ IP Camera
Features:
* Support P2P function
* 4.5" total metal body construction IP66,10X/20X/36X optional
* Compatible with CMS, UC2, Milestone and AXXON platform
* ONVIF2.4 ; Compatible with HIKVISION ,DAHUA, XM,Video park NVR
* Intelligent IR illumination & power consumption is variable, dependant the zoom factor
* Product Guarantee for 2 years
Specifications:
|
Camera
|
|
Sensor
|
1/3" CMOS 2MP Sony323
|
1/3" CMOS
5MP AR0521
|
1/3" CMOS
2MP Panasonic34229
|
|
Output Pixel
|
1920x1080/30fps
1920x1080/25fps
|
2592x1944@15fps
2592x1520@22fps
|
1920x1080/30fps
1920x1080/25fps
|
|
Lens
|
10X f=5.1mm ~ 51mm 20X f=4.7mm~94mm
|
36X 4.6mm~165mm
|
|
BLC
|
Support
|
|
AGC
|
Auto/manual
|
|
WB
|
Auto/manual/indoor/outdoor
|
|
DNR
|
2DNR,3DNR
|
|
WDR
|
DWDR
|
WDR≥79dB
|
|
S/N Ratio
|
≥50dB
|
|
Dome
|
|
Communications
Protocol
|
TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P
|
|
Software
Control
|
IE, CMS,
Management Platform
|
|
Mobile
View(optional)
|
Support
Windows, iPhone platform smartphone
|
|
Video
compression
|
H.264/H.265/M-JPEG
|
|
Audio
compression
|
G711,PCM
|
|
Rotation Range
|
Pan: 0°~360° ,
Tilt: 0°~93°
|
|
Rotation Speed
|
Pan: 0~300°/s
, Tilt:0~60°/s
|
|
Auto Flip
|
Horizontal
180°, Vertical 93°
|
|
Preset Points
|
220pcs presets（dwell time
01-60s interval available）
|
|
A-B scan
|
User
programmabel(scan speed 1-64 levels setting available)
|
|
Guard Tours
|
3 groups(
Max.16 points, dwell time user selectable)
|
|
Operating
temperature
|
-40℃~+70℃
|
|
Operation menu
|
English
|
|
Power
|
DC 12V 3A
|
|
Consumption
|
≤20W
|
|
Lightning
Protection
|
Transient
voltage 6000V
|
|
Related
validation
|
IP66,CE,FCC,RoHs
|
|
IR parameters
|
|
Auto Control IR LED
|
PWM
|
|
IR distance
|
Up to 150 meters
|
|
LEDs
|
BT-86F 6PCS Array 42Mil IR
LED+3PCS Laser LED
|
