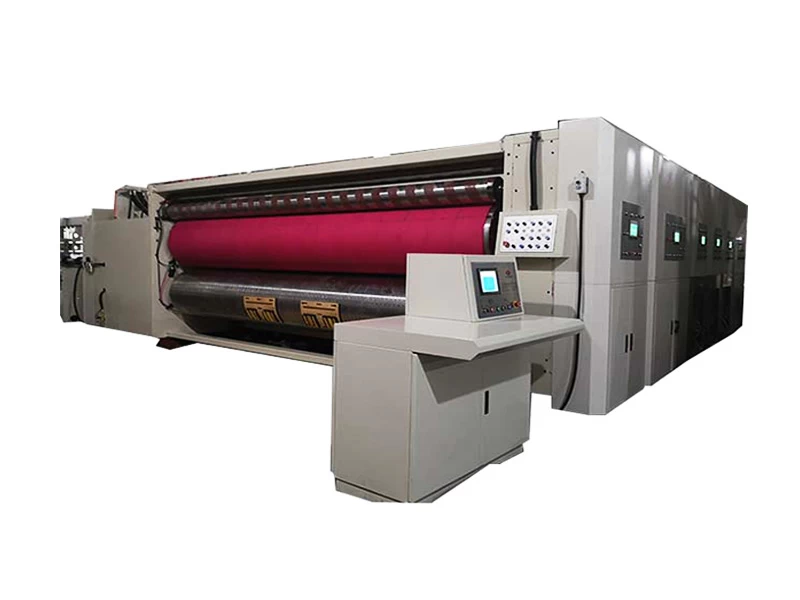

4 Color Automatic Flexo Printer Slotter Machine

Corrugated carton box printer machine, meets your need of printing big size carton.



4 Color Automatic Flexo Printer Slotter Machine


Corrugated Flexo Printer Slotter Features:

·This flexo carton printer is designed and made to high quality and safety standard,with the advantages of high speed, auto control and quick order shift.

·Auto high quality materials and parts.

·Well hardened and ground transmission gears, hardness more than 60(HRC).

·Auto zero return and auto reset.

·Use expansion sets tight link to reduce abrasion of the shaft,keep precision of the machine for long years.

·All cylinders and rollers are chromed plated for ideal hardness.

·PLC control system with touch screen control.

·Able to save order,speed up the order shift.

·All electronic and pneumatic components are with European standards.

·Lead edge feeder or kick feeder is for choice.


Full Automatic Flexo Printer Slotter Specification:

Data/Model 1600*3600 2200*3600 2200*4000 2200*4600 2200*5300 2600*3600 2600*4000 2600*4600 2600*5300
Printing Speed(m/min) 160 160 160 160 160 160 160 160 160
Max.Machine Speed(pcs/min) 120 100 100 100 80 80 80 80 80
Max.Feeding Size(mm) 1570x3600 2100x3600 2100x4000 2100x4600 2100x5300 2500x3600 2500x4000 2500x4600 2500x5300
Min.Feeding Size(mm) 450x760 550x900 550x900 550x900 550x900 650x900 650x900 650x900 650x900
Max. Printing Area(mm) 1540x3600 2080x3600 2080x4000 2080x4600 2080x5300 2480x3600 2480x4000 2480x4600 2480x5300
Thickness of Printing Plate(mm) 7.2 7.2 7.2 7.2 7.2 7.2 7.2 7.2 7.2
Min. Panel(mm) Slot Type L. 280x100x280x100 330x110x330x110 330x110x330x110 330x110x330x110 330x110x330x110 360x110x360x110 360x110x360x110 360x110x360x110 360x110x360x110
Max. Slotting Depth(mm) 560 750 750 750 750 850 850 850 850
Max. Thickness of Sheet(mm) 15 15 15 15 15 15 15 15 15

Dimension(LxWxH)

T

19852x6670x2700 21173x6670x2800 21173x7070x2800 21173x7670x2800 21173x8370x2800 22495x6670x3000 22495x7070x3000 22495x7670x3000 22495x8370x3000


Printer Creaser Slotter Machine Advantages:

1.CNC control system (Intelligent Control)

2.Environmental Protection and Energy Saving, use washable ink;

3.Apply to box for big household appliances such as refrigerator, air-conditioner, and heavy industrial box, such as      motorbike, auto spare parts.

4.Able to print and make honeycomb box.


Our Research and Development:

KESHENGLONG has a perfect Research and Development system, and owns a high level R&D team, leading capability of independent innovation, and complete producing, processing and manufacturing capability. We has Full computer gantry boring and milling machining center, CNC pentahedron boring and milling machine, 5 meter grinding machine etc., more than 200 set of processing equipment.
