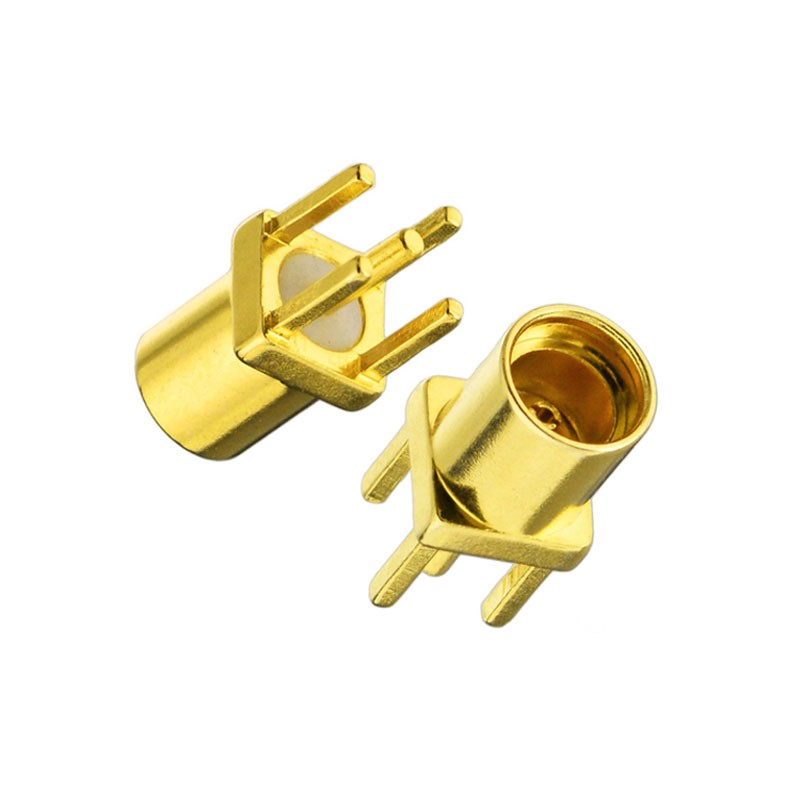

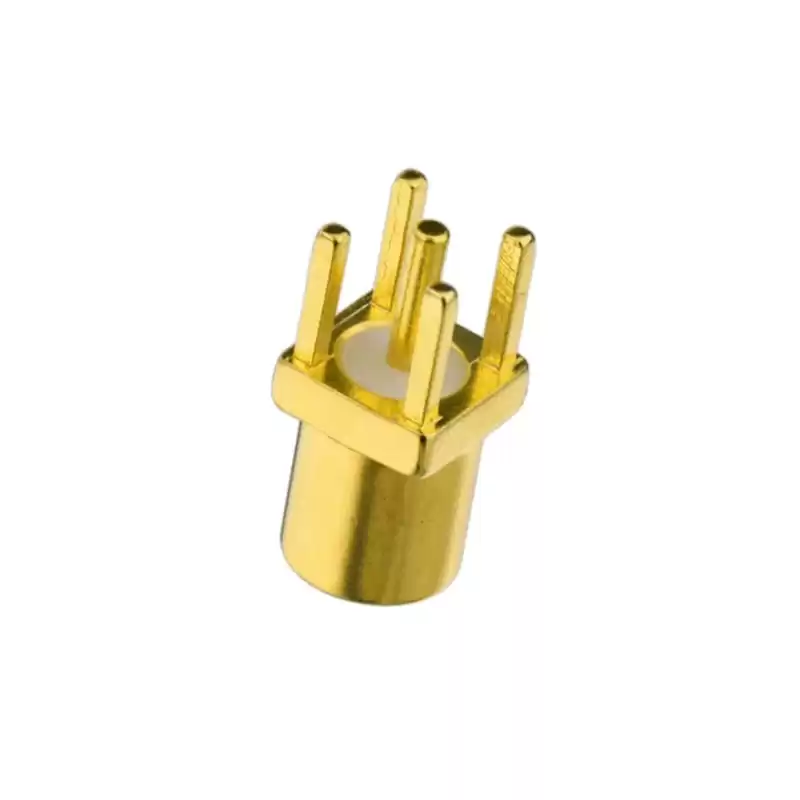

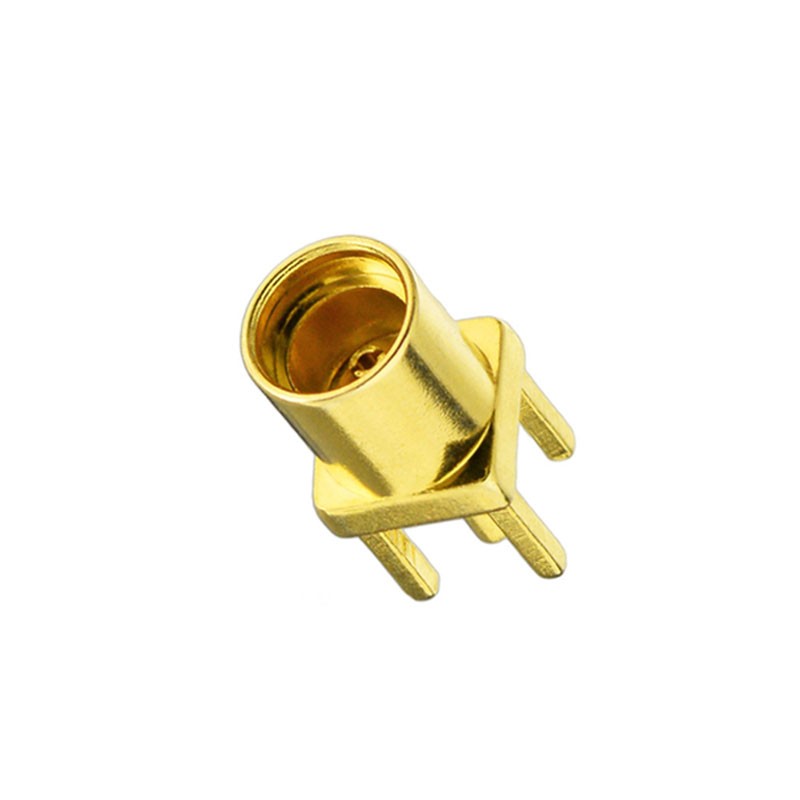

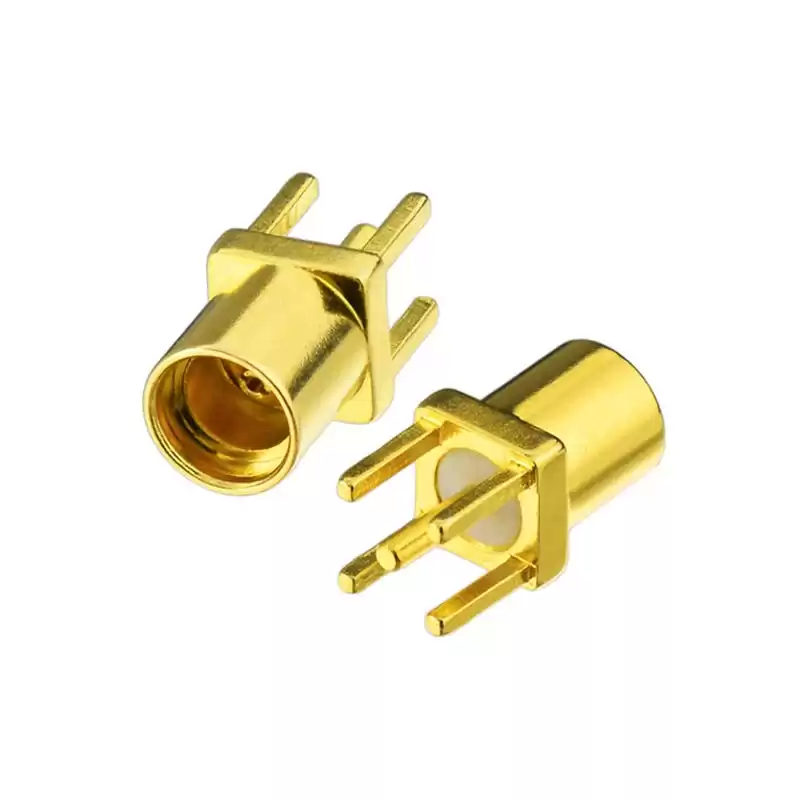

4 Feet Gold Plated RF Coaxial MMCX Connector for PCB Mount
The MMCX (Micro-Miniature Coaxial) connector series is a micro-miniature version of the MCX. It is a 50 ohm impedance interface with broadband capability of DC to 6 GHz and secure, fast and easy snap-on/snap-off coupling. MMCX connectors have a smaller footprint than the MCX series, and are available in a wide array of configurations.
Specifications
| ELECTRICAL DATA |
|
| Impedance |
50Ω |
| Frequency range |
DC-6GHz |
| Dielectric withstanding voltage (at sea level) |
≥750Vrms,50Hz |
| Working voltage |
≥170Vrms,50Hz (at sea level) / ≥42Vrms,50Hz (at 21000m/70000ft) |
| Insulation resistance |
≥ 10000 mΩ |
| Contact resistance |
Inner conductor: ≤5mΩ |
| Outer conductor: ≤1mΩ |
| RF leakage(measured at 1GHZ) |
Flexible: ≥60dB |
| Semi-rigid cable: ≥70dB |
| MECHANICAL DATA |
|
| Engagement force |
≤25Nm /5.6lbs |
| Disengagement force |
≥8N-20N / 1.8 lbs-4.5lbs |
| Contact captivation |
≥10N / 2.3 lbs |
| Durability (matings) |
≥500 |
| ENVIRONMENTAL DATA |
|
| Temperature range |
−40°C to +90°C |
| MATERIAL DATA |
|
| Bodies |
Brass--Au plated |
| Pin contacts |
Brass--Au plating |
| Socket contacts |
Coppper beryllium alloy / Phosphor bronze--Au plating |
| Crimp ferrules |
Brass--Au plating |
| Insulator |
PTFE |
Applications
- Instrumentation
- Antennas
- Satcom
- Base Stations
- GPS
- Broadband
- Telecommunications
