4 head self feeding laser cutter for whole roll cloth

4 head self feeding laser cutter for whole roll cloth is with auto feeding system, suitable for cutting roll to roll fabric、embroidered textile、 cloth、felt、garment. Big working area. Auto feeder is optional.



0086-18815980123  0086-13599259031  Boming laser


4 head self feeding laser cutter for whole roll cloth is with feeding steel mesh, used for whole roll fabric textile. It had better work with auto feeder to achieve the continous feeding and cutting. The auto feeder is optional.

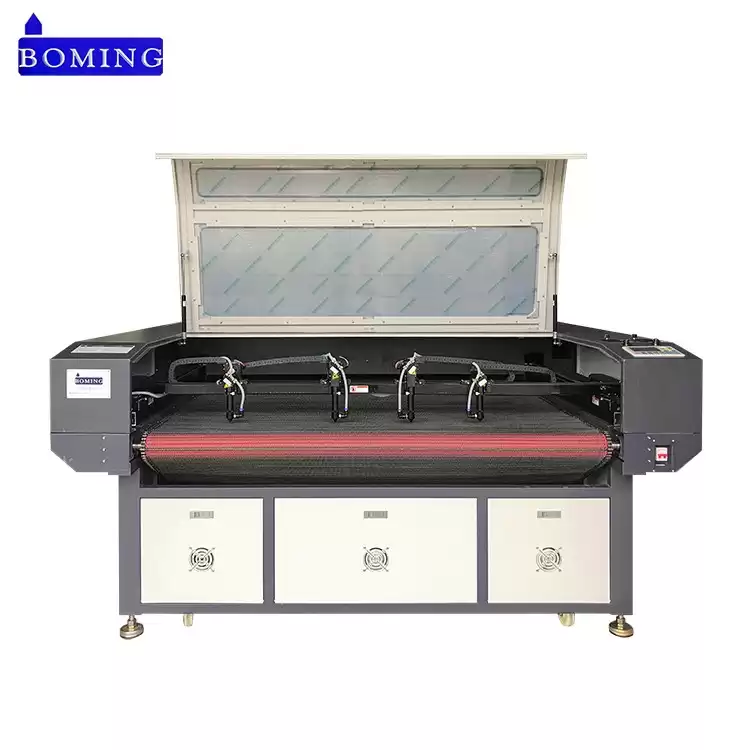

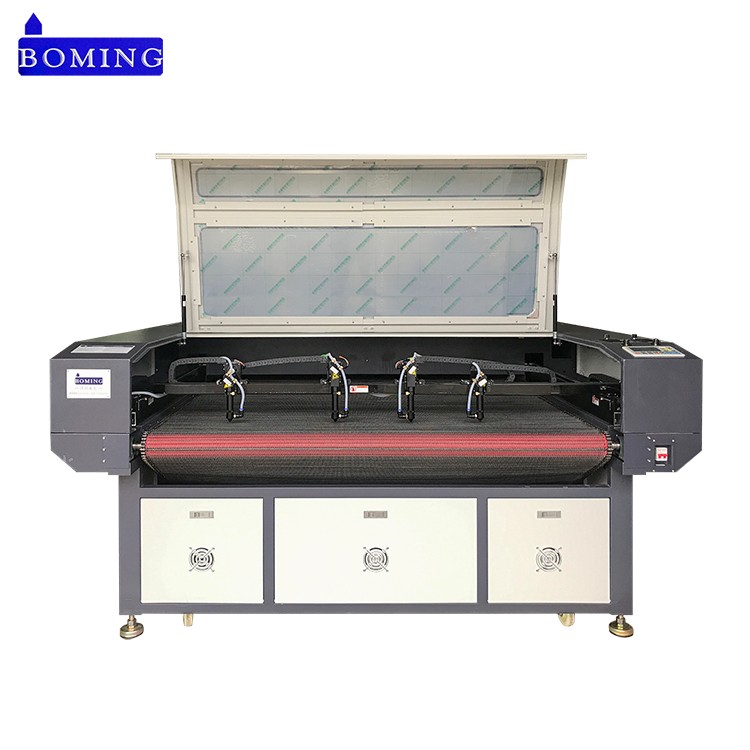

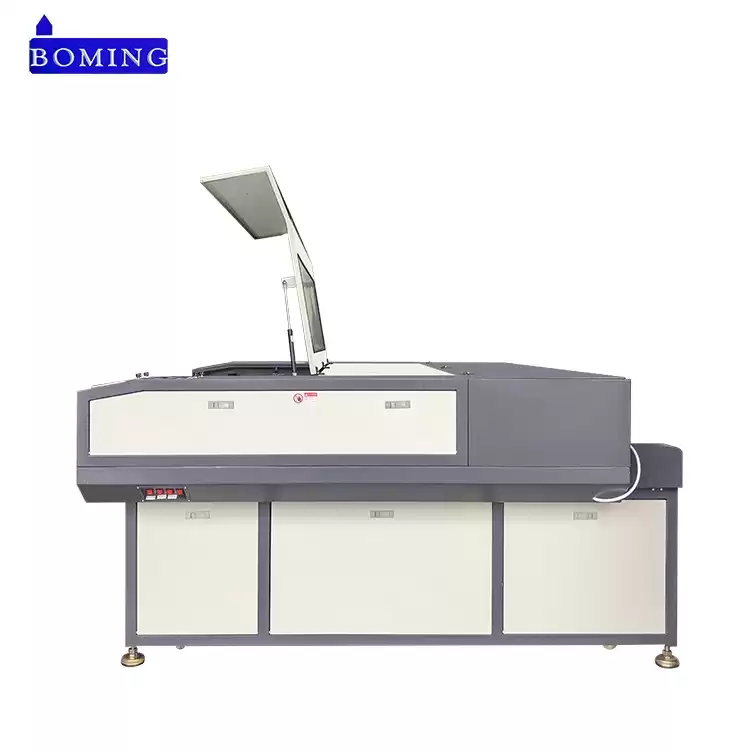

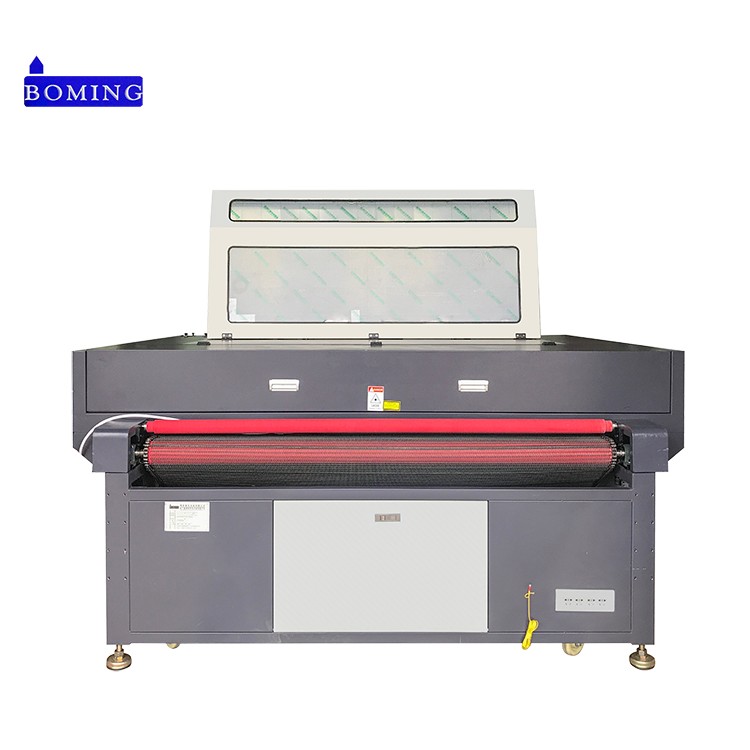

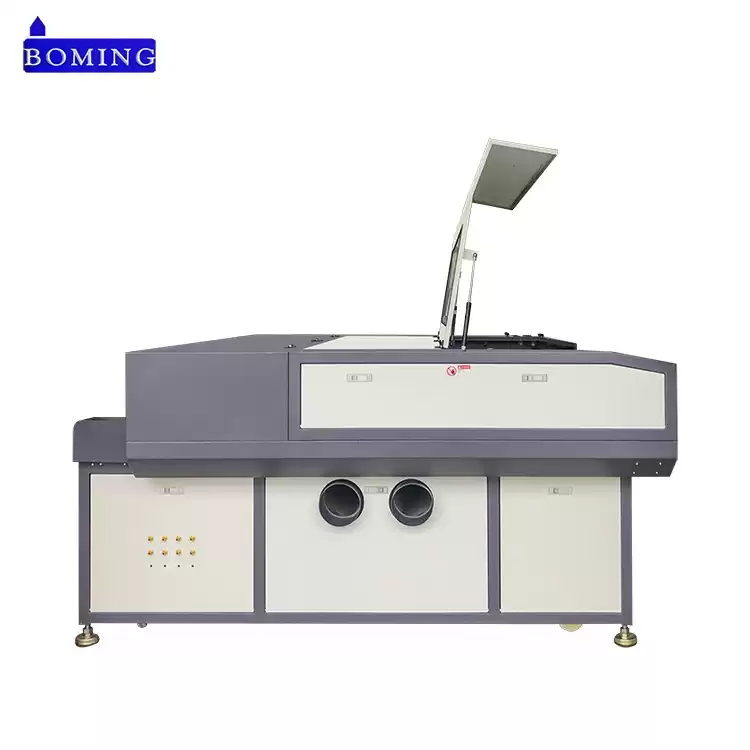

Machine pictures:

automatic laser paper cutting machine

4 head auto feeding laser cutter


4 auto head laser cutter

fabric auto laser cutter




Features: of 4 head self feeding laser cutter for whole roll cloth

1、It feeds the materials fully automatically, the worker can operate several machines at the same time.

2、The follow-up rolling platform is developed indepently, cutting 2-6 layers according to different materials.It can achieve

more accurate, higher speed, higher efficiency cutting comparing the normal auto feeding machine

3、Choosing the 150W-180W big capacity laser tube can make the machine achieving fast stable and continous cutting in 24 hours.



Software advantages: of laser auto cloth cutting machine

1) Software comes with memory option. Machine can work offline without computer.

2) Designs can be sent to machine with one step function.

3) Most kind of design format can be accepted.

4) Machine can be accessed and operated directly from CorelDRAW software.

5) Software has powerful auto backup function.





Applicable Industries: of roll fabric laser cutting machine

The machine is widely used in the industries such as shoe,bag, garment,toy,furniture, advertisement,car accessories,sports Accessories,etc.




Applicable Materials: of roll to roll laser cutter

Suitable for the materials, such as plush,fur,paper board,insole,PU,cloth,microfiber leather,

microfiber  PU,etc.




Technical Parameters:of self feeding laser cutter

Laser Capacity

100W 130W 150W CO2 glass tube

Processing Area(mm)

1600*1000 1800*1000 1800*1200 1800*1400 2000*1000 2000*1200mm

Positional Accuracy

±0.05mm

Working way

Auto feeing

Cutting Speed

0-60m/min

Max Traverse Speed

0-64m/min

Type of belt drive

X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt

Air exhaust

Big capacity lower air exhaust

Graphic Format Supported

CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc.

Optical system

Φ25mm Molybdenum reflector;  Φ25mm Silicon reflector;  Φ20mm, focal length50.8 focusing mirror




Sample show:

laser cutter feeder



Our Payment: of ccd camera laser cutting machine

1) Usually we accept T/T, Irrevocable L/C at sight.

2) 30% deposit, the 70% balance should be paid clear before delivery.

3) The delivery day is 7-10 working days.

4) The MOQ is 1set.




Why choose us:

1. 13 years experience on laser cutting and engraving machine.


2. Use good brand parts, excellent machine quality.


3. Free consulting, lifetime technical support.


4. Various optional types, customized acceptable.



5. Machines sold to Southeast Asia, South Asia, South America......


  Laser cutting is fast becoming the new way to sample materials such as metal, wood and fabric due to reduced contamination and workpiece retention. Precision has reached new levels in all walks of life, and the waste of raw materials has dropped significantly. Here you can find the right roll to roll laser cutting machine at an affordable price and upgrade your production process.


Packaging & Shipping:

1) Standard seaworthy plywood case, without fumigation, can be exported directly.

2) Forklift-lift loading, much safer for machine.

3) We will arrange telex release for you or send original BL to you for customs clearance.

feed cnc laser cutter


In addition, we have dual-head laser cutting machines, which are powerful and versatile. And the dual heads contour laser cutting machine provides unparalleled flexibility for laser cutting and also achieves high cutting efficiency.


The laser processing beam has high energy density and high speed. Using precise laser cutting technology and software graphics, laser cutting machine for shoes perfectly realizes the blueprint in the designer's mind, bringing people a new sensory experience.
