4 in 1 Coolant Refractometer with ATC, Automotive Coolant Tester for Antifreeze Concentration, Battery Fluid, Winshield Cleaner

The handheld antifreeze and battery fluid refractometer is widely used in car maintenance, repair workshops, and battery servicing. This tool helps ensure proper coolant protection in cold climates and accurate assessment of lead-acid battery charge levels.

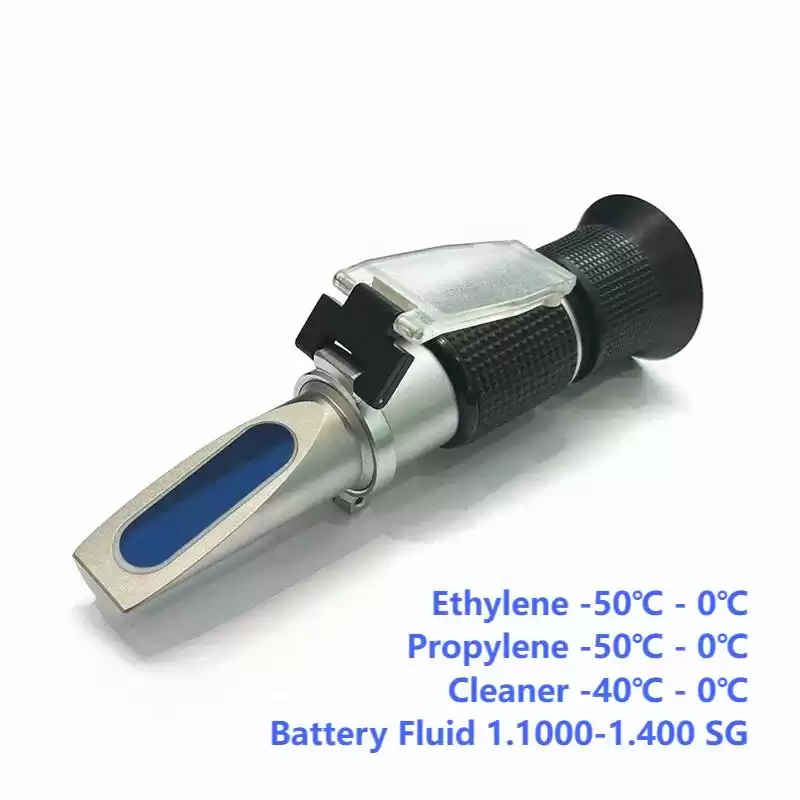

The RHA-503A handheld antifreeze and battery fluid refractometer has three functions:

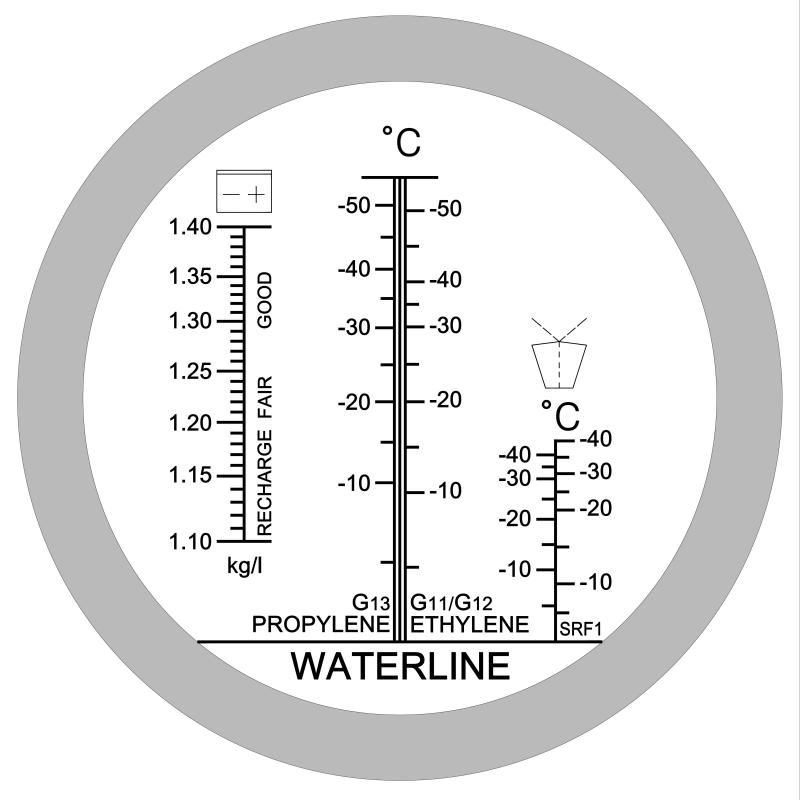

1. It measures the freezing point temperature of ethylene glycol or propylene glycol - based automotive antifreeze. The reading indicates the temperature at which the tested solution starts to freeze.
2. It measures the freezing point temperature of windshield cleaning fluid. The reading indicates the temperature at which the tested solution starts to freeze.
3. It measures the specific gravity (SG) of battery fluid. Specific gravity is the density ratio of battery fluid to water, used to indicate the charging state of lead - acid batteries. The higher the specific gravity value, the more fully charged the battery is.

Product Features

Multi-Fluid Measurement

 Tests coolant (ethylene & propylene glycol), windshield washer fluid, and battery fluid with one device.



Copper Body

 Robust and corrosion-resistant construction ensures consistent accuracy and long-lasting performance in workshop environments.

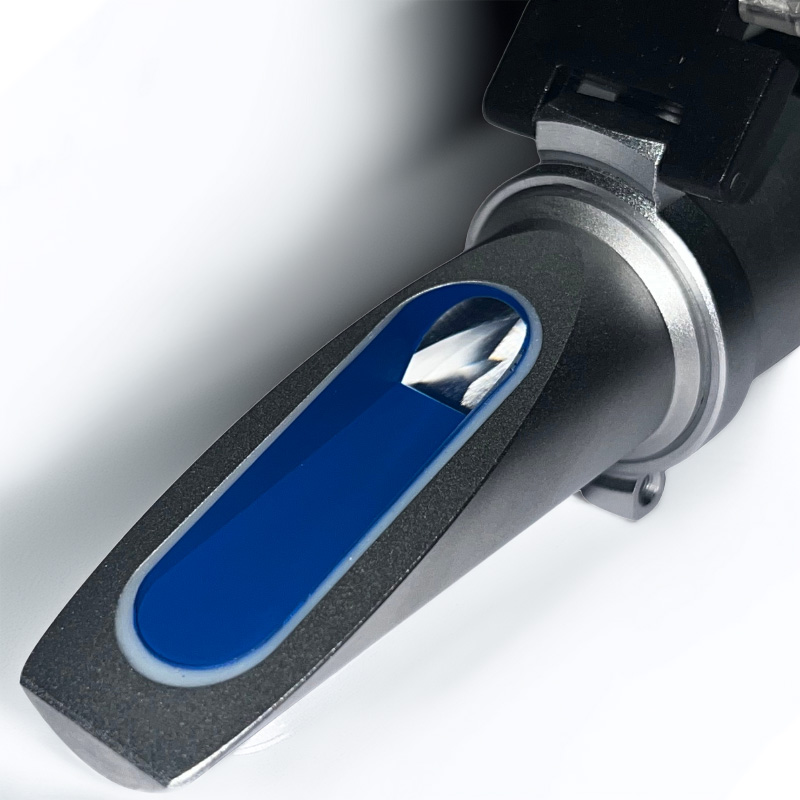

Crown Glass Prism

 Improves accuracy and delivers high optical clarity for easy and precise scale readings.



Automatic Temperature Compensation (ATC)

 Ensures accurate readings in varying ambient conditions without manual correction.



Typical Applications

- Automotive Maintenance & Repair

 Measure the freezing point of coolant and windshield washer fluid, and check battery fluid condition during routine service.

- Fleet Vehicle Inspections

 Used in fleet garages to monitor coolant, washer fluid, and battery condition across multiple vehicles.

- Battery Servicing

 Test the specific gravity of lead-acid battery fluid to evaluate charge level and battery health.

- Heavy Equipment & Agricultural Machinery

 Maintain coolant and battery reliability in tractors, loaders, and other off-road machinery.







Product Parameters

Model	RHA-503A
Net Weight	0.24kg
Length	153mm
Diameter	29mm
Temperature Range	10℃ to 30℃ with ATC 20℃ without ATC

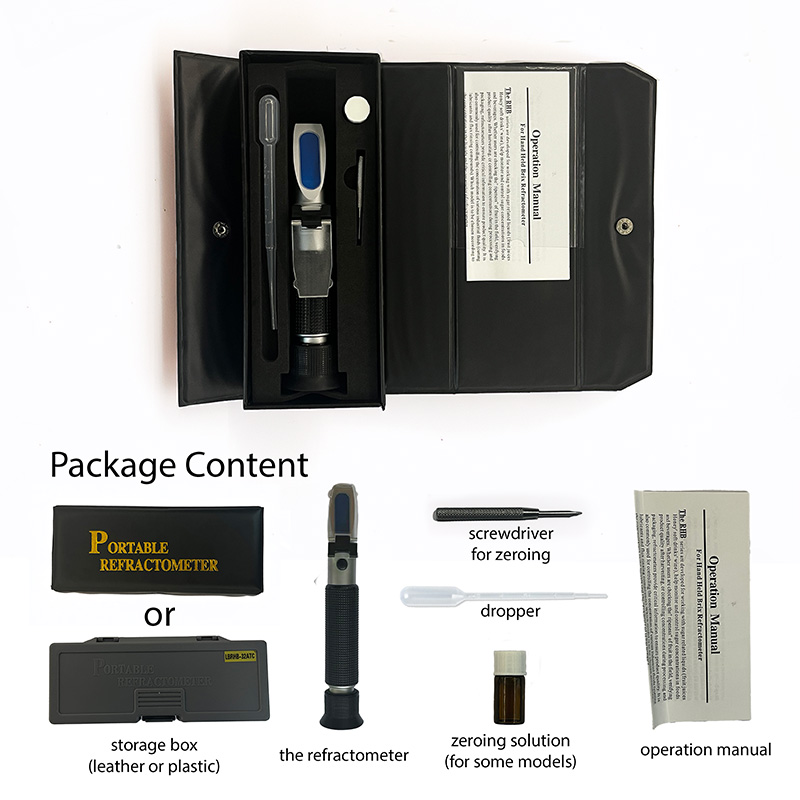

Packaging

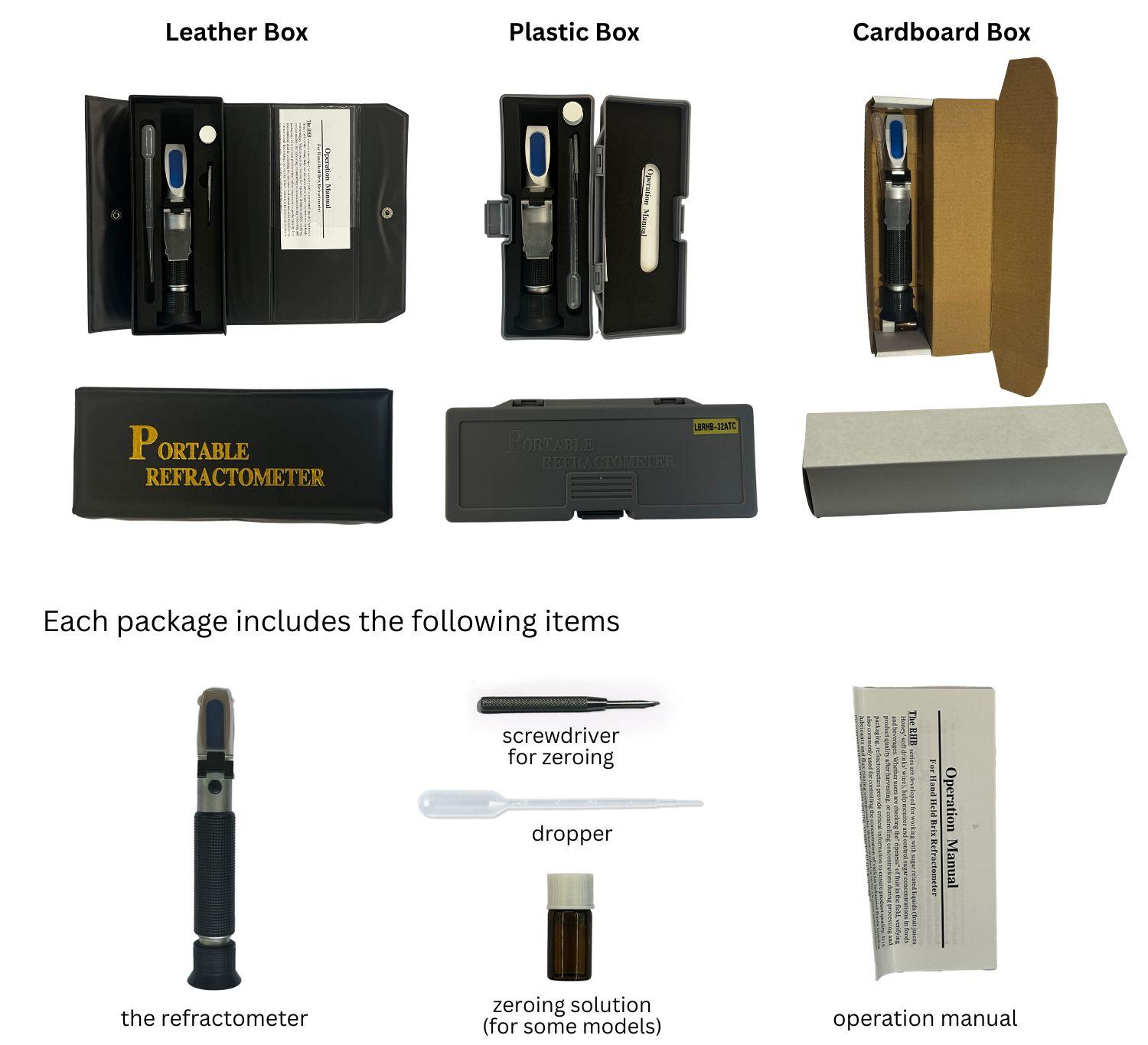

We have three packaging options: leather, plastic, or cardboard. The cost per unit vary with different packaging.

If you have a preferred packaging option or require customized packaging with your own text or logo, please feel free to send us an inquiry.
