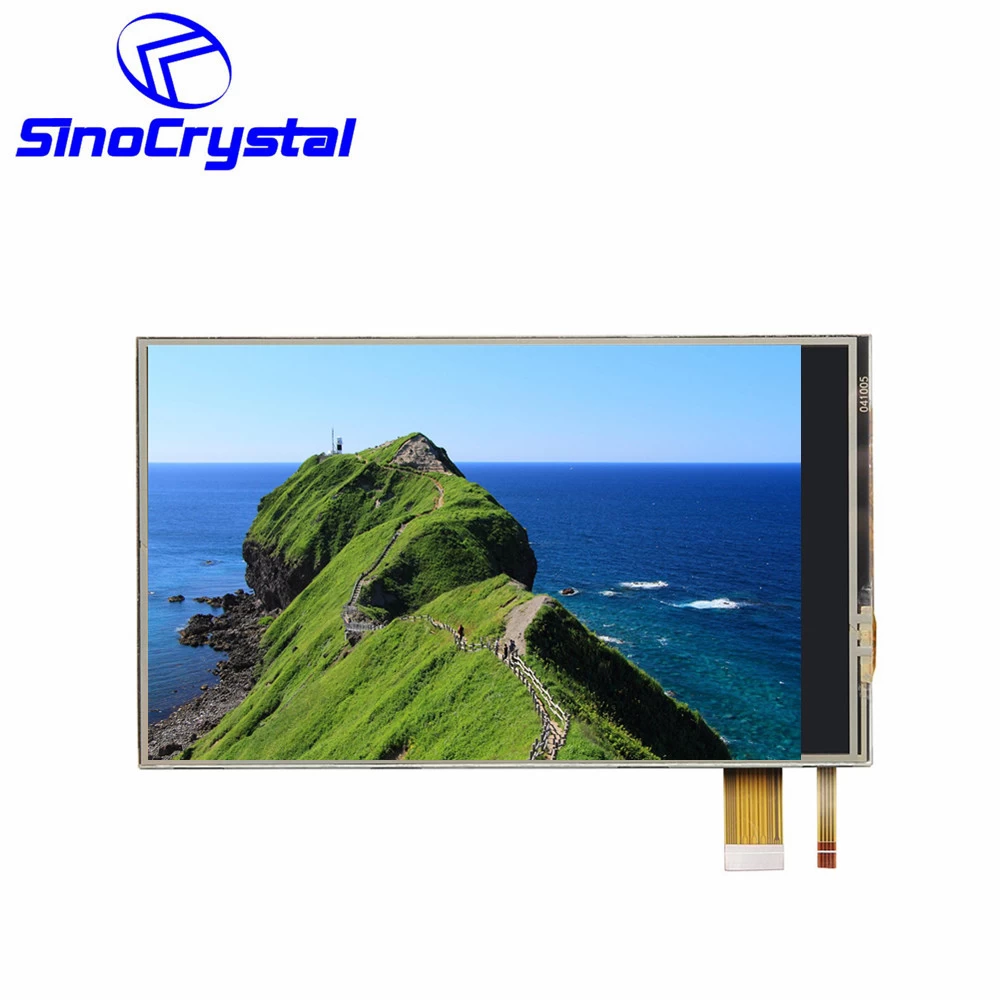

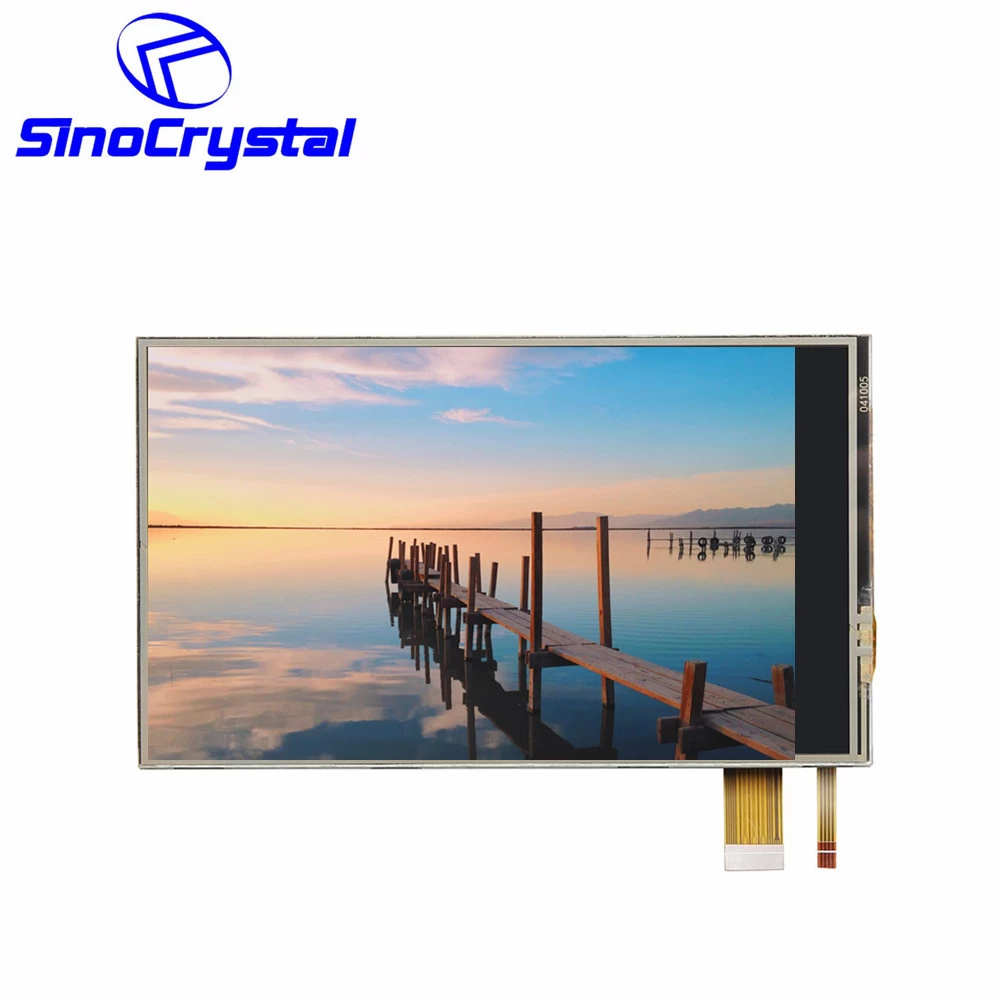

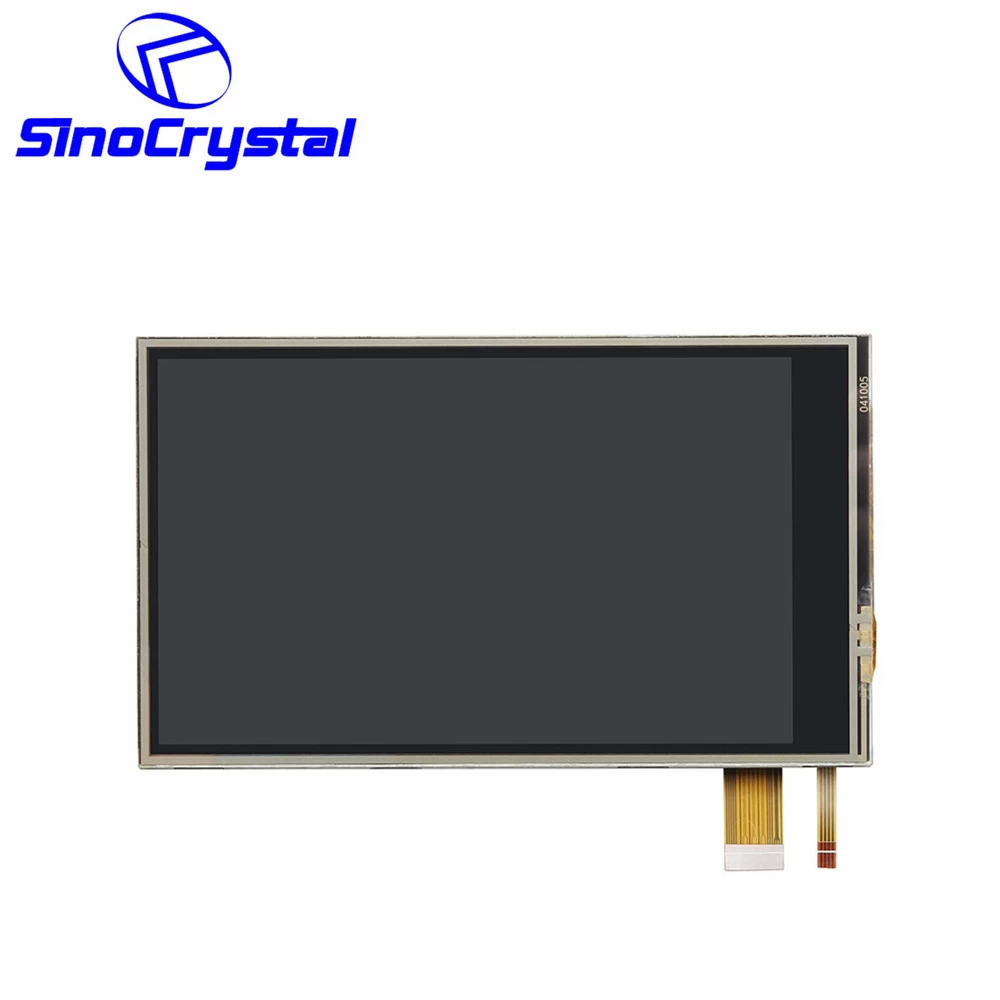

Basic Information
Resolution: 480RGB*800
Outline Dimension: 57.4*97.2*3.55
Active Area: 51.84*86.40
View area: 56.94*97.1
Interface: IPC
Driver IC: NT35510
View Direction: IPS
PIN: 25
Backlight: White LED
Touch Screen: Resistive Touch Screen

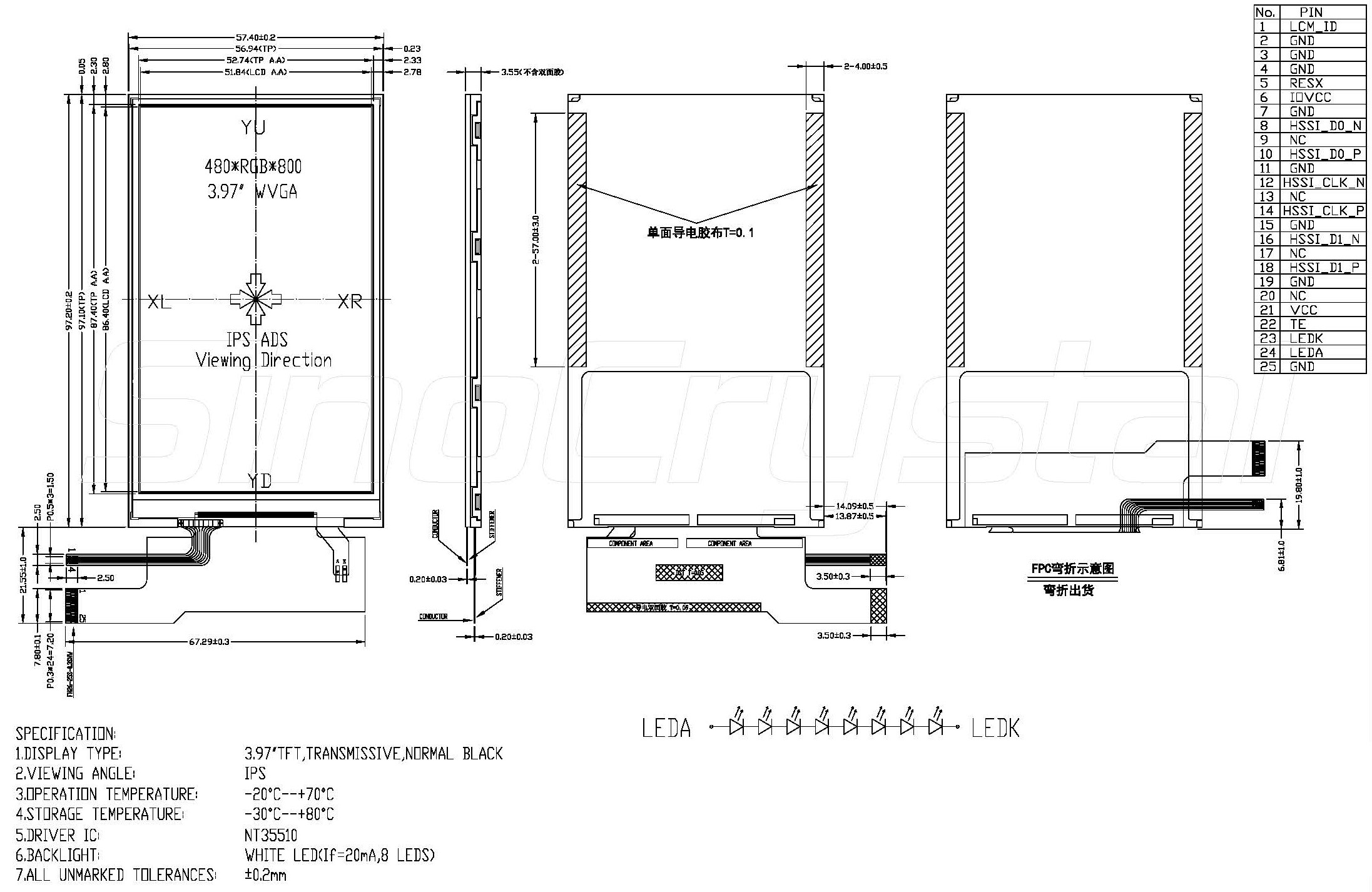

Drawing
General Specification
|
Item
|
Nominal Dimension
|
Unit
|
|
Dot Matrix
|
480 x RGB x 800
|
Dots
|
|
Module Size ( W×H×T )
|
57.40 x 97.20 x 3.55
|
mm.
|
|
Active Area ( W×H )
|
51.84 x 86.40
|
mm.
|
|
Pixel arrangement
|
RGB Stripe
|
mm.
|
|
Dot Pitch ( W×H )
|
0.108 x 0.108
|
mm.
|
|
Color depth
|
16M
|
colors
|
|
Interface
|
MIPI DSI
|
-
|
|
Driving IC Package
|
COG
|
-
|
|
Operating temperature
|
-20 ~70
|
ºC
|
|
Storage temperature
|
-30~80
|
ºC
|
|
LCD Type
|
IPS
|
-
|
|
LCD Mode
|
Normal Black
|
-
|
|
Backlight Type
|
LED x 8
|
PCS
|
Interface Definition
|
Pin No
|
Pin Symbol
|
Level
|
Description
|
|
1
|
LCM_ID
|
0V
|
LCM ID, have been connected to GND in FPC.
|
|
2
|
GND
|
0V
|
Ground
|
|
3
|
GND
|
0V
|
Ground
|
|
4
|
GND
|
0V
|
Ground
|
|
5
|
RESET
|
H/L
|
Reset signal
|
|
6
|
IOVCC
|
1.65-3.3V
|
Power supply for logic
|
|
7
|
GND
|
0V
|
Ground
|
|
8
|
HSSI_D0_N
|
|
|
|
9
|
NC
|
|
These pins are DSI-D0+/- differential data signals if MIPI interface
|
|
10
|
HSSI_D0_P
|
|
|
|
11
|
GND
|
0V
|
Ground
|
|
12
|
HSSI_CLK_N
|
|
|
|
13
|
NC
|
|
These pins are DSI-CLK+/- differential clock signals if MIPI interface
|
|
14
|
HSSI_CLK_P
|
|
|
|
15
|
GND
|
0V
|
Ground
|
|
16
|
HSSI_D1_N
|
|
|
|
17
|
NC
|
|
These pins are DSI-D1+/- differential data signals if MIPI interface
|
|
18
|
HSSI_D1_P
|
|
|
|
19
|
GND
|
0V
|
Ground
|
|
20
|
NC
|
-
|
No used
|
|
21
|
VCI
|
2.3-4.8V
|
Power supply
|
|
22
|
TE
|
H/L
|
Tearing effect output
|
|
23
|
LEDK
|
-
|
LED light, cathode.
|
|
24
|
LEDA
|
-
|
LED light, anode
|
|
25
|
GND
|
0V
|
Ground
|
|
|
|
|
|
Pin No
|
Pin Symbol
|
Level
|
Description
|
|
1
|
YU
|
-
|
Touch panel top
|
|
2
|
XL
|
-
|
Touch panel left
|
|
3
|
YD
|
-
|
Touch panel bottom
|
|
4
|
XR
|
-
|
Touch panel right
|
