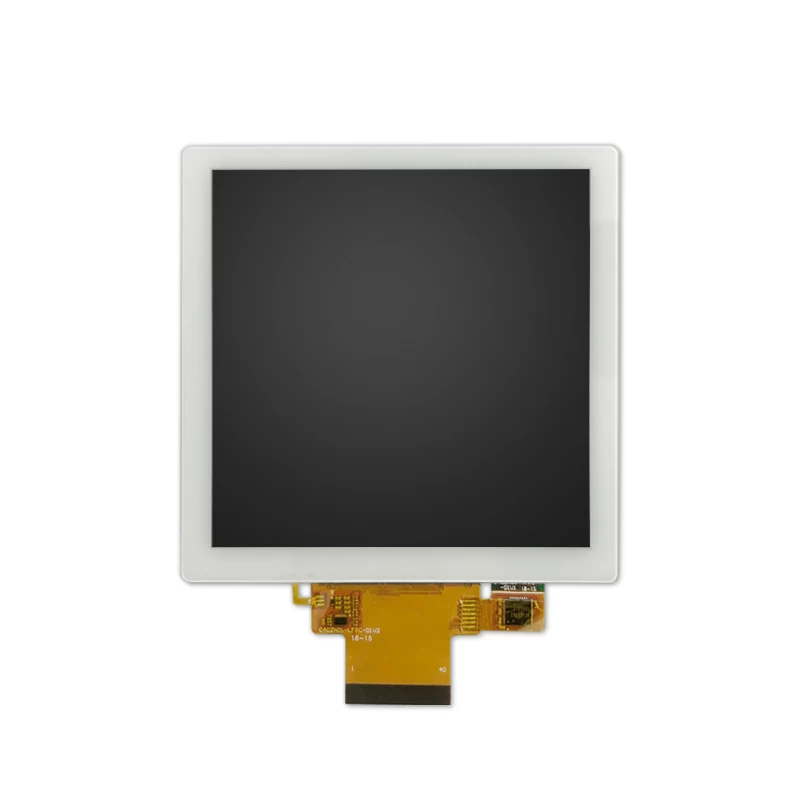

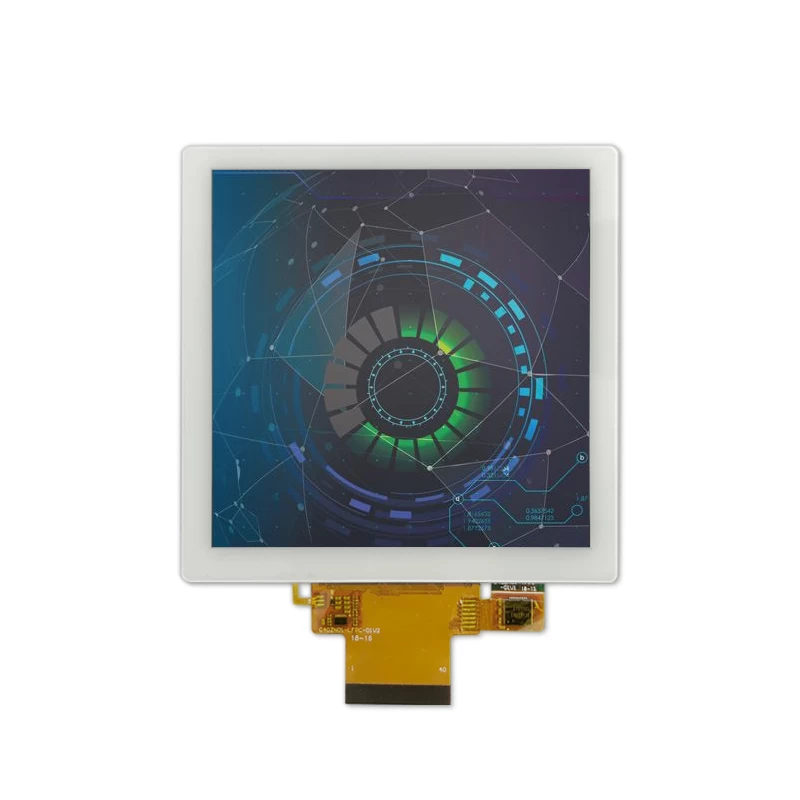

4 inch square SPI RGB lcd display with 720x720 resolution
|
Specification
|
|
Part No.
|
TST040HDBY-05
|
|
Outline Dimension(mm)
|
74.83x78.98x1.56mm
|
|
Active Area(mm)
|
72.58x72.58mm
|
|
Resolution(dots)
|
720*RGB*720
|
|
Operating temperature(°C)
|
-20-70
|
|
Storage temperature(°C)
|
-30-80
|
|
Number of Pixel(pixels)
|
720RGB(H)xRGBx720(V)
|
Display colors
|
262K
|
|
Driver IC
|
YY1821
|
|
Touch screen
|
wtihout
|
|
Display mode
|
Normal black, IPS, 4 inch TFT
|
|
Surface treatment
|
Antiglare
|
|
View direction
|
ALL
|
|
Weight(g)
|
TBD
|
|
Power Consumption(w)
|
Panel
|
0.226(Typ.)
|
|
B/L system
|
1.674(Typ.)
|
|
Interface
|
SPI+RGB
|
|
Module lifetime(Hours)
|
50,000-100,000
|
