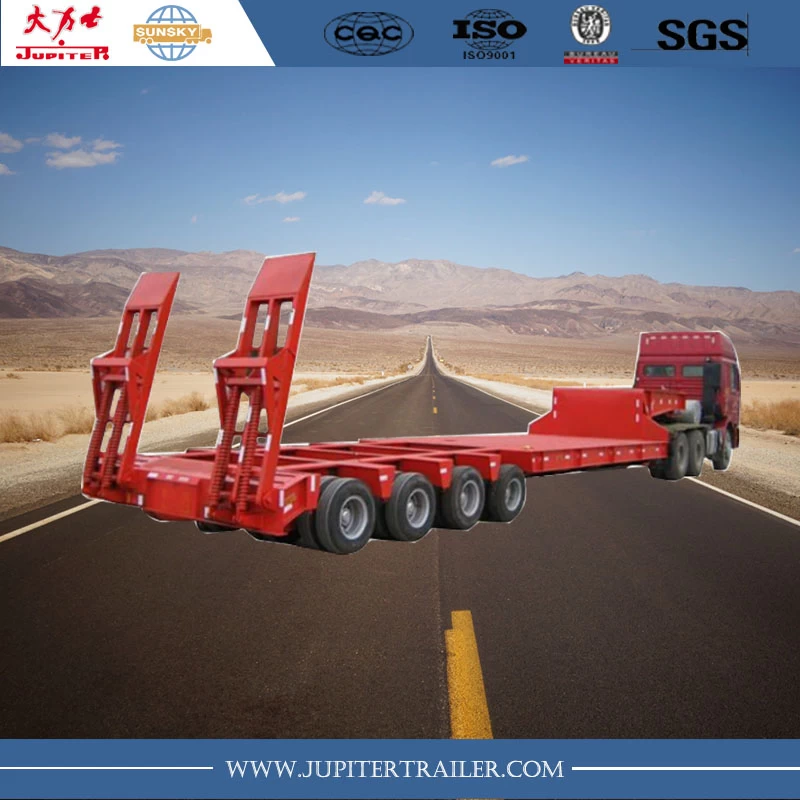

4 rows 8 axles lowbed semi trailer

4 rows 8 axles lowbed semitrailers LowBed Truck Trailer



4 rows 8 axles lowbed semitrailers LowBed Truck Trailer

1.The main frame of SUNSKY LOW BED SEMI TRAILER is made of 16Mn high-tensile steel,reasonable structure,superior carrying capacity and no permanent deformation;It can be reinforced according to using requirement.The 4 rows  axles low bed can reach to payload of 120 tons.

2.SUNSKY LOW BED SEMI-TRAILER adopts large gooseneck structure,low loading platform and gravity, high roadability,big loading space;it’s suitable for transportation of large mechanical devices,large-scale cargo

3.The axle,tyre and other accessories are the well-known products which supplied by the domestic and foreign professional manufacturers.

4.The continuous improvement of structure makes it much accord with practical loading and unloading requirements.



Features:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

1) Manufacturer, 32 years professional experience.
2) Two years guarantee term provided freely.

3) Export more than 1000 units to Africa, Southeastern Asia, and South America.
4) Products can be custom-made according to your design.


Specification:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑



Product Information

Product

Low bed semi trailer



Announcement (batch)

229

Place of Origin

China

Color

Any color will be available

Product Specifications

Parameter

Outside Dimensions (L*W*H)

L:12000-20000     W:2400-4000    H:900-1500

Rated Load

30ton-500ton

Tare Weight

More than 9000kgs

Wheel   Base

8480+1310 (mm)

Running Gear

Tires

specification

12R22.5 ,11.00R20 or depends on customer

No. of tires

8,12,16 or more than 20

Spare tire carriers

2 or 1 including a riser.

Axles



Brand :

FUWA (BPW German optional)

No. of axles:

2,3 4 or more than 5

Axle-load

13000kgs

      Wheel rim

8units of 7.50-20 rim or 8.00

Suspension

Rigid suspension and air suspension

Pieces of leaf-spring

10/10/10

Brakes

brand

TKL brand

Brake chamber

4 double chamber

System

Dual line braking system /ABS

Under Frame

Departure Angle

14

Front/Rear   Overhang

1670mm

Main Beam

material

I beam ,Q345B , automatic submerged arc welded

specification

Height is 500mm,upper plate is 20mm,lower plate

 is 20mm,middle is 12mm

Cross Beam material

Q235B

Side beam

16# channel steel

Plate form

Steel Sheet 5mm thickness or diamond plate(Also can choose

other thickness ,such as 2mm,2.5mm,3mm,4mm,5mm,6mm)

King Pin

50# or 90#

Landing gear

Single side operation or double side operation, Static capacity 28Ton

Accessory

One tooling box with a set of standard trailer tool

Electrical

Voltage

24V

Receptacle

7 ways (7 wire harness)

Lights

Front corner marker lamp :red ;reflector lamp :white

Side marker :orange

Rear lamp :red; rear reflector :white; turn single lamp :orange

Other

Usage

The height of the cargo's carrying platform is 800-1290mm, is suitable

 For the transportation of the large and non-dismantled objects.

Other Specifications

The max height of the rear guard from ground is 420mm

Other Descriptions

The whole body adopts steel with good quality, and be manufactured

by advanced skills and strict producing managerial processes. The

frame is wearing structure, webs made from manganese plates

from 400mm to 550mm high welded the upper and lower flange

plates together, and the beam runs through the longitudinal beam

makes the two parts a very strong unit by automatic submerged

arc welding. Frame using peen-forming processing.

Painting ,marking and side guard can according to the customer’s requirement



Production detail:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑






Producing process:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑




Loading and Packing:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑




Our advantage and ability:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑




What others we can supply:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑





FAQ:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

1. Who are we?


Answer: We are a group company; we have three semi-trailer factories in china, one trading company in china and one company inHong Kong. We are focus on semi-trailer, trucks and parts.

2. Why choose us

Answer: 1) We have more than 30years experience in the trailer manufacturing. Our brand”SUNSKY” and”JUPITER” had got high reputation in china and overseas countries.

2) We have more than 20 engineers to design the kinds of trailers according to the requirement from you.

3) We had exported thousands of trailers to Africa, Middle East, Asia,Australia,South America and so on since 2006.

4) We are one of the biggest dealers of SINOTRUK HOWO truck in china, we can supply kinds of HOWO brand truck with competitive price.
